OM4 LC Magenta SC Footprint Optical Fiber Adapter Ceramic Sleeve
|Place of Origin||China|
|Brand Name||OMC or OEM|
|Certification||ROHS and ISO|
|Model Number||TF Type OM4 LC DX Magenta SC Footsprint 50 / 125μm|
|Minimum Order Quantity||5pcs|
|Packaging Details||25 pcs in a plastic box, several boxes in a carton of 54*39*35cm|
|Delivery Time||3 days after payment confirmed|
|Payment Terms||L/C, T/T, Western Union, MoneyGram|
|Supply Ability||1000000 pcs per month|
|Product Name||TF Type OM4 LC DX Magenta SC Footsprint 50 / 125μm Fiber Adapter||Insertion Loss||≤0.1dB|
|Return Loss||≥35 DB||Storage Temp（℃）||-40～+85|
|Durability (500 Mating)||0.1dB Max.||Color||Magenta|
SC Footprint Optical Fiber Adapter,
Ceramic Sleeve Optical Fiber Adapter,
OM4 Fiber Optic Cable Adapter

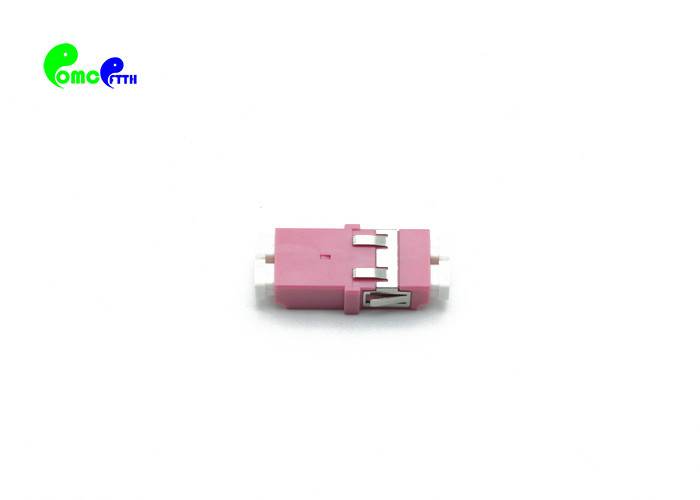

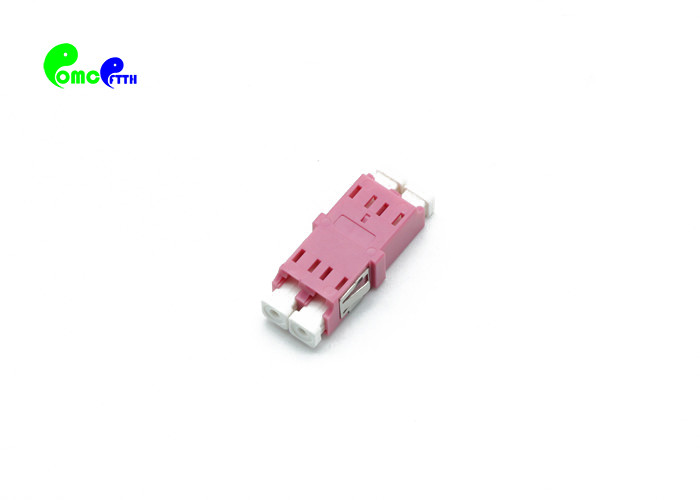

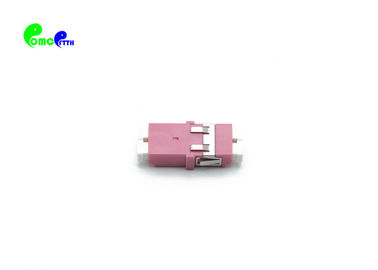

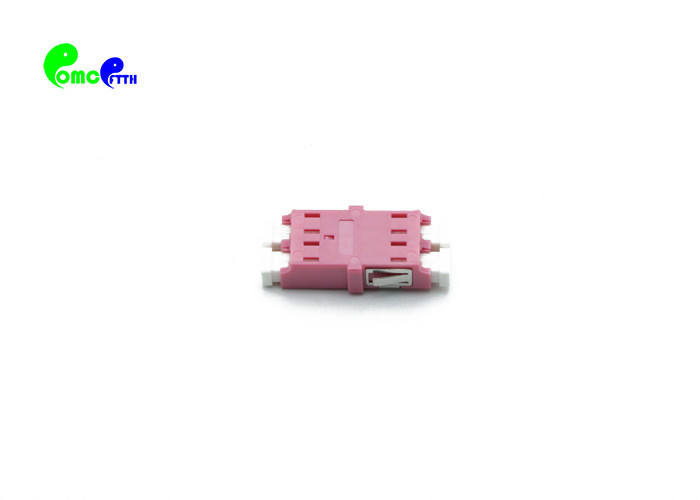

TF Type OM4 Adapter LC DX Magenta SC Footsprint 50 / 125μm Fibre Optic Adapter With Reduced Flange
TF Type LC Fiber Adapter are developed to couple and mate 2/4/8 LC connector plugs. Each TF Type Fiber adapter have 4pcs stainless steel mounting clips/hooks allowing it to be easily snapped into rectangular cut outs and fix very well and stable.
Our range of high-quality TF Type Fiber adapters have high precision alignment sleeves for reliability and improved reconnect ability. For single mode and multimode applications, a ceramic sleeve is supplied. The housing is available in different colors with options for flange or flangeless body.
OMC Adapters design, material and manufacturing process assure long life and high repeatability of optical performances even for dif- ferent brand connectors mating.
|Test item||MM PC|
|Return Loss||≥35 dB|
|Durability (500 Mating)||0.1dB Max.|
|Withdrawal force (g/f)||2.0N ~ 5.9N (200gf ~ 600gf)|
Available for Simplex of SM UPC, SM APC, MM OM1 62.5/125, MM OM2,OM3,OM4 50/125,OM5 50/125
|Housing body||High quality PC(UL-94V0)||Blue, Green, Beige, Aqua, Magenta or Customized|
|Sleeve||High precision Ceramic sleeve||White|
|Inside hook||PBT/PEI||Blue, Green, Beige, Aqua, Magenta or Customized|
|Metal Plate||Stainless steel||-|
|Dust Cover||PE/ABS||White or Customized|
Environment and Mechanical
|Properties||Test condition||Conformance||Test result|
|Vibration||10-55Hz, 1.5mm, 60min||IEC61300-2-1||≤0.2dB|
|Mating Durability||1000 Mating, clean every 25 mating.||IEC61300-2-2||≤0.2dB|
|Impact||1.5m, 8 drops||IEC61300-2-6||≤0.2dB|
|Strength of Coupling Mechanism||40N, 10Min, L=22-28cm||IEC61300-2-12||≤0.2dB|
|Temperature Cycling||40ºC to +75ºC, 40 cycles||IEC61300-2-22||≤0.2dB|
|Temperature humidity cycling||40ºC, 95%, 96Hr||IEC61300-2-21||≤0.2dB|
|Operating Temperature||-40ºC to +85ºC||≤0.2dB|
|Storage Temperature||-40ºC to +85ºC||≤0.2dB|
The difference between Standard SC/LC adapter and TF type SC/LC adapter
Patch panels, ODF and other optical connections. Optical networks demarcation and monitoring point
Several piece in one plastic box,
Several boxes then packed in a 54*39*35 carton paper box
Other size carton is available too.
OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.
1. Are you the real factory?
Yes,we are the real factory more than 10 years
2. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;
Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.
3. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.
4. What is your delivery time?
Within 24 hours for normal kinds of fiber optic cable;
3~5 days for fiber optic patch cords with 10000 connectors.
5. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.
6. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory price could be offered.
For large orders: T/T, L/C
For small orders: T/T,Western Union and Paypal are acceptable
