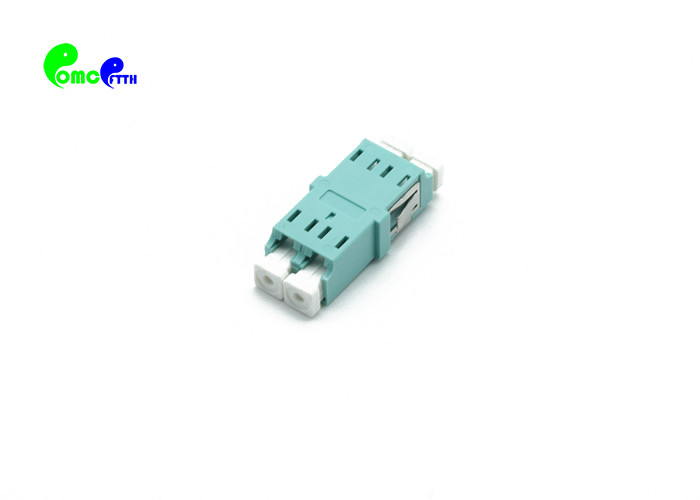

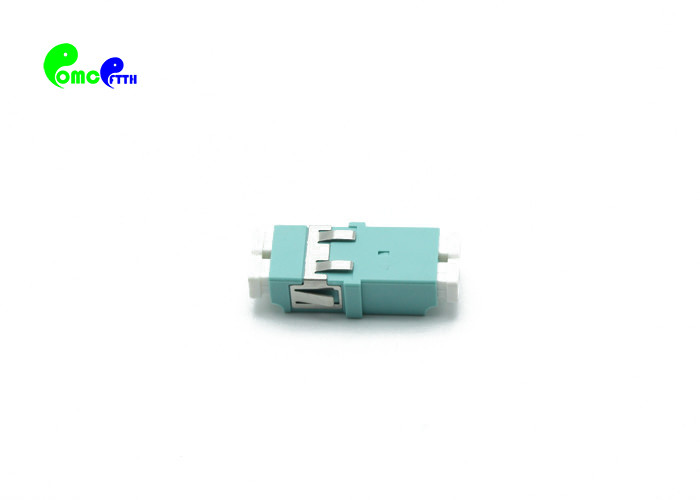

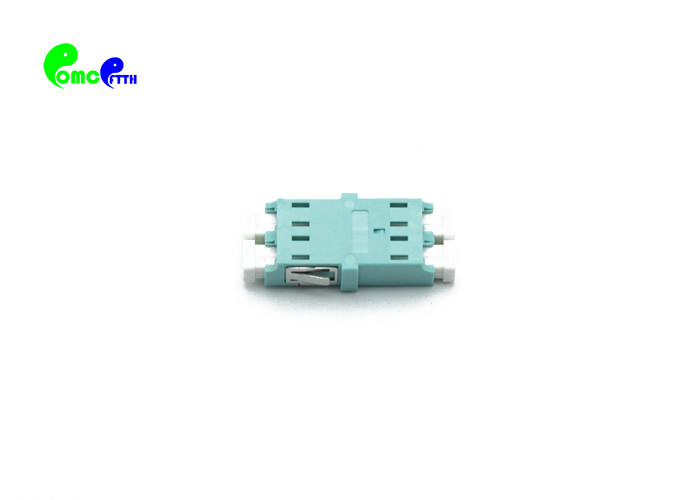

LC PC DX SC Footprint OM3 Fiber Optic Cable Adapter UL-94V0

Place of Origin China
Brand Name OMC or OEM
Certification ROHS and ISO
Model Number TF Type OM3 LC PC DX SC Footprint Aqua 50 / 125μm
Minimum Order Quantity 5pcs
Price Negotiable
Packaging Details 25 pcs in a plastic box, several boxes in a carton of 54*39*35cm
Delivery Time 3 days after payment confirmed
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 1000000 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name TF Type OM3 LC PC DX SC Footprint Aqua 50 / 125μm Adapter Insertion Loss ≤0.2dB
Return Loss ≥50 DB Durability (500 Mating) 0.1dB Max.
Withdrawal Force (g/f) 2.0N ~ 5.9N (200gf ~ 600gf) Color Aqua
High Light

OM3 Fiber Optic Cable Adapter

,

UL-94V0 Fiber Optic Cable Adapter

,

SC Footprint Fiber Optical Adapter

Leave a Message
Product Description

TF Type OM3 Fiber Adapter LC PC DX SC Footprint Aqua 50 / 125μm Fiber Optic Adapter With Reduced Flange





TF Type LC Fiber Adapter are developed to couple and mate 2/4/8 LC connector plugs. Each TF Type Fiber adapter have 4pcs stainless steel mounting clips/hooks allowing it to be easily snapped into rectangular cut outs and fix very well and stable.



Our range of high-quality TF Type Fiber adapters have high precision alignment sleeves for reliability and improved reconnect ability. For single mode and multimode applications, a ceramic sleeve is supplied. The housing is available in different colors with options for flange or flangeless body.



OMC Adapters design, material and manufacturing process assure long life and high repeatability of optical performances even for dif- ferent brand connectors mating.



Optical Specifications


Test item MM PC
Insertion Loss ≤0.1dB
Return Loss ≥35 dB
Durability (500 Mating) 0.1dB Max.
Withdrawal force (g/f) 2.0N ~ 5.9N (200gf ~ 600gf)
Storage Temp(℃) -40~+85
Color Aqua



Available for Simplex of SM UPC, SM APC, MM OM1 62.5/125, MM OM2,OM3,OM4 50/125,OM5 50/125









Products Materials



Parts name Material Color
Housing body High quality PC(UL-94V0) Blue, Green, Beige, Aqua, Magenta or Customized
Sleeve High precision Ceramic sleeve White
Inside hook PBT/PEI Blue, Green, Beige, Aqua, Magenta or Customized
Metal Plate Stainless steel -
Dust Cover PE/ABS White or Customized



Products Highlights



LC PC DX SC Footprint OM3 Fiber Optic Cable Adapter UL-94V0 0



Environment and Mechanical



Properties Test condition Conformance Test result
Vibration 10-55Hz, 1.5mm, 60min IEC61300-2-1 ≤0.2dB
Mating Durability 1000 Mating, clean every 25 mating. IEC61300-2-2 ≤0.2dB
Impact 1.5m, 8 drops IEC61300-2-6 ≤0.2dB
Strength of Coupling Mechanism 40N, 10Min, L=22-28cm IEC61300-2-12 ≤0.2dB
Temperature Cycling 40ºC to +75ºC, 40 cycles IEC61300-2-22 ≤0.2dB
Temperature humidity cycling 40ºC, 95%, 96Hr IEC61300-2-21 ≤0.2dB
Operating Temperature -40ºC to +85ºC   ≤0.2dB
Storage Temperature -40ºC to +85ºC   ≤0.2dB



The difference between Standard SC/LC adapter and TF type SC/LC adapter



LC PC DX SC Footprint OM3 Fiber Optic Cable Adapter UL-94V0 1



Application:



Patch panels, ODF and other optical connections. Optical networks demarcation and monitoring point



Packaging & Shipping



Several piece in one plastic box,
Several boxes then packed in a 54*39*35 carton paper box

Other size carton is available too.



LC PC DX SC Footprint OM3 Fiber Optic Cable Adapter UL-94V0 2LC PC DX SC Footprint OM3 Fiber Optic Cable Adapter UL-94V0 3



Company Information:



OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.



LC PC DX SC Footprint OM3 Fiber Optic Cable Adapter UL-94V0 4

LC PC DX SC Footprint OM3 Fiber Optic Cable Adapter UL-94V0 5

LC PC DX SC Footprint OM3 Fiber Optic Cable Adapter UL-94V0 6


LC PC DX SC Footprint OM3 Fiber Optic Cable Adapter UL-94V0 8

LC PC DX SC Footprint OM3 Fiber Optic Cable Adapter UL-94V0 9
