0.2dB LC SC Connector SM MM Fiber Optic Adapter Alignment Sleeves
|Place of Origin||China|
|Brand Name||OMC or OEM|
|Certification||ROHS and ISO|
|Model Number||TF Type LC & SC Connector SM / MM|
|Minimum Order Quantity||5pcs|
|Packaging Details||Inner PE Bag and customized|
|Delivery Time||3 days after payment confirmed|
|Payment Terms||T/T, Western Union, L/C|
|Supply Ability||1000000 pcs per month|
|Product Name||TF Type LC & SC Connector SM / MM Fiber Optic Adapter||Insertion Loss||SM:≤0.2dB;MM:≤0.1dB|
|Return Loss||SM:UPC≥50 DB,APC≥60 DB;MM:≥35 DB||Durability (500 Mating)||0.1dB Max.|
|Withdrawal Force (g/f)||2.0N ~ 5.9N (200gf ~ 600gf)||Storage Temp（℃）||-40～+85|
LC SC Fiber Optic Adapter,
0.2dB Fiber Optic Adapter,
Alignment Sleeves SC Optical Adapter
High Quality TF Type LC & SC Connector SM / MM Fiber Optic Adapter

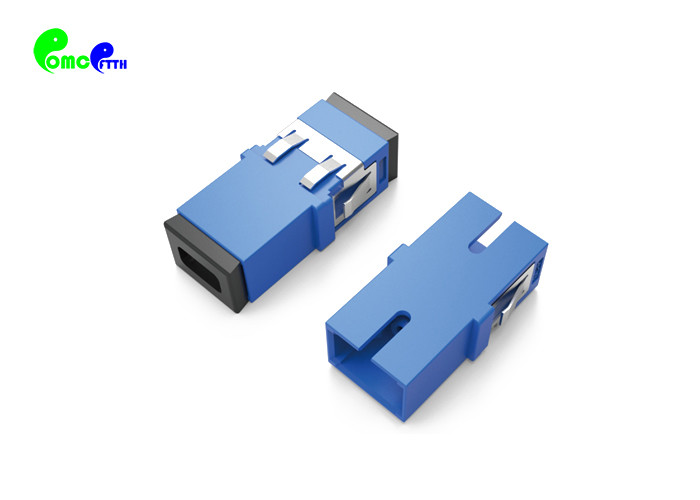

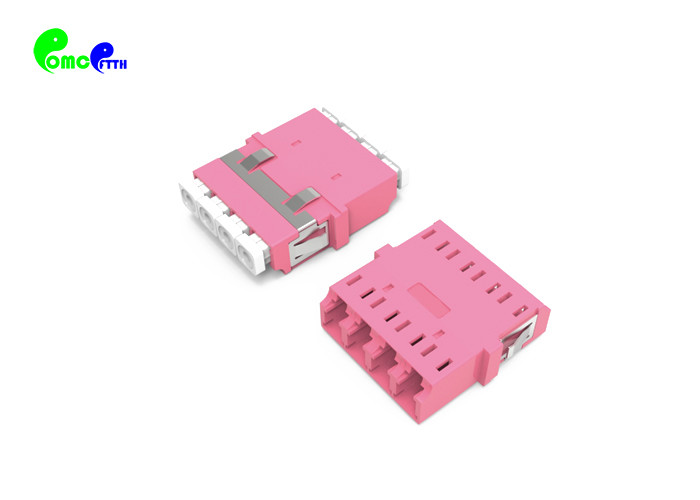

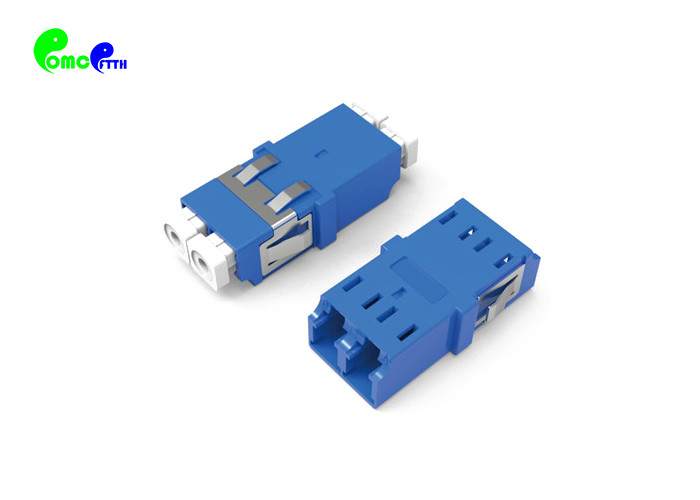

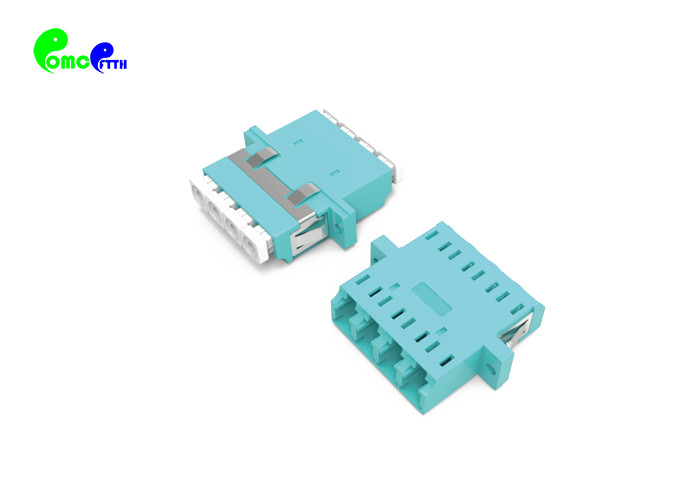

TF Type LC&SC Fiber Adapter are developed to couple and mate 2/4/8 SC&LC connector plugs. Each TF Type Fiber adapter have 4pcs stainless steel mounting clips/hooks allowing it to be easily snapped into rectangular cut outs and fix very well and stable.

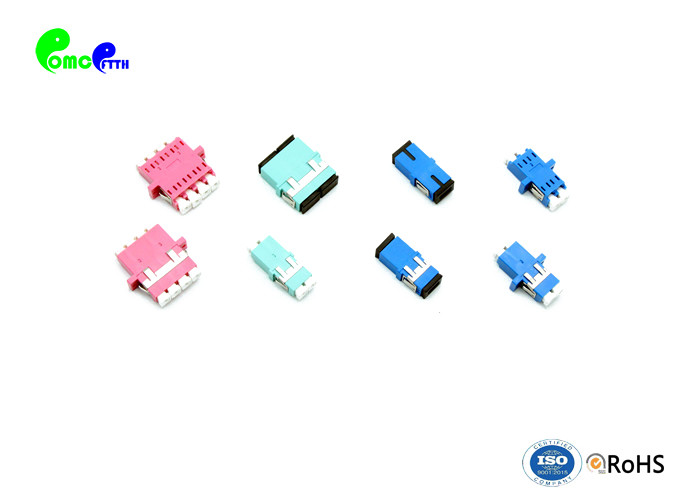

Our range of high-quality TF Type Fiber adapters have high precision alignment sleeves for reliability and improved reconnect ability. For single mode and multimode applications, a ceramic sleeve is supplied.The housing is available in different colors with options for flange or flangeless body.
OMC Adapters design, material and manufacturing process assure long life and high repeatability of optical performances even for different brand connectors mating.
|Test item||(SM-9/125) UPC||(SM-9/125) APC||MM PC|
|Return Loss||≥50 dB||≥60 dB||≥35 dB|
|Durability (500 Mating)||0.1dB Max.|
|Withdrawal force (g/f)||2.0N ~ 5.9N (200gf ~ 600gf)|
Available for Simplex of SM UPC, SM APC, MM OM1 62.5/125, MM OM2,OM3,OM4 50/125,OM5 50/125
Environment and Mechanical
|Properties||Test condition||Conformance||Test result|
|Vibration||10-55Hz, 1.5mm, 60min||IEC61300-2-1||≤0.2dB|
|Mating Durability||1000 Mating, clean every 25 mating.||IEC61300-2-2||≤0.2dB|
|Impact||1.5m, 8 drops||IEC61300-2-6||≤0.2dB|
|Strength of Coupling Mechanism||40N, 10Min, L=22-28cm||IEC61300-2-12||≤0.2dB|
|Temperature Cycling||40ºC to +75ºC, 40 cycles||IEC61300-2-22||≤0.2dB|
|Temperature humidity cycling||40ºC, 95%, 96Hr||IEC61300-2-21||≤0.2dB|
|Operating Temperature||-40ºC to +85ºC||≤0.2dB|
|Storage Temperature||-40ºC to +85ºC||≤0.2dB|
The difference between Standard SC/LC adapter and TF type SC/LC adapter
Patch panels, ODF and other optical connections. Optical networks demarcation and monitoring point
Several piece in one plastic box,
Several boxes then packed in a 54*39*35 carton paper box
Other size carton is available too.
