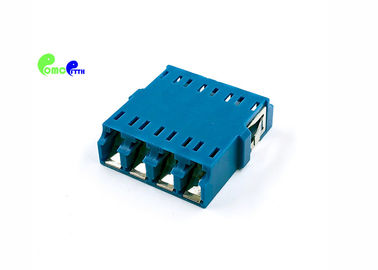

LC Quad Single Mode Optical Fiber Adapter PC Body With Internal Shutter Reduced Flange

China LC Quad Single Mode Optical Fiber Adapter PC Body With Internal Shutter Reduced Flange supplier
LC Quad Single Mode Optical Fiber Adapter PC Body With Internal Shutter Reduced Flange supplier LC Quad Single Mode Optical Fiber Adapter PC Body With Internal Shutter Reduced Flange supplier LC Quad Single Mode Optical Fiber Adapter PC Body With Internal Shutter Reduced Flange supplier

Large Image :  LC Quad Single Mode Optical Fiber Adapter PC Body With Internal Shutter Reduced Flange

Product Details:

Place of Origin: Shenzhen,China
Brand Name: OMC or OEM
Certification: ISO, ROHS
Model Number: LC Quad Adapter with internal shutter- Reduced flange

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: Negotiation
Packaging Details: 25 pcs in a plastic box, several boxes in a carton of 54*39*35cm
Delivery Time: 3 days after payment comfirmed
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 50000pcs per week
Contact Now
Detailed Product Description
Products Name: LC Quad Single Mode Optical Fiber Adapter PC Body With Internal Shutter Reduced Flange Insertion Loss: ≤0.2dB
Withdrawal Force (g/f): 200~600 Durability: <0.10 DB Typical Change, 500 Matings
Ports: LC Female To LC Female Sleeve: Zirconia Ceramic 1.25mm Split Sleeve
Body Material: PC Flammability: UL94 V-0

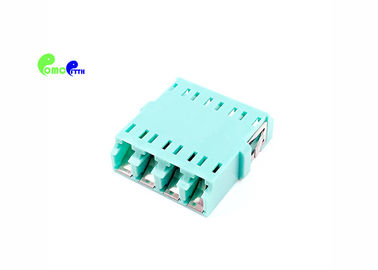

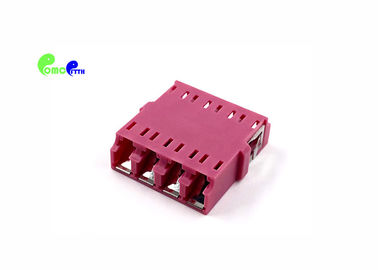

LC Quad Fiber Optic LC Adapter with internal shutter- Reduced flange SC footprint available for SM,MM , OM3 , OM4





LC Quad with internal shutter-full flange SC footprint type adapter is a one-piece design adapter. The shutter is 100% automatic and requires no physical handling of the shutter door. You can actuate this integrated, retractable shutter inside the adapter body by inserting the LC connector into the adapter. The shutter automatically opens as you insert the LC connector, and closes as you extract it. Due to the special design of the shutter, it will not touch the ferrule end face when you insert a connector, thus preventing end face damage. The internal shutter prevents eye exposure to lasers and provides protection from dust and other contaminants.



With increasingly high-powered active devices being used in today’s networking and telecommunication platforms, Eye safety and connector cleanliness are an absolute necessity. OMC’s LC adapter with Internal shutter has been designed to meet this growing need.



Specifications



Test item (SM-9/125) UPC (SM-9/125) APC MM PC
Insertion Loss ≤0.2dB(Standard Grade); ≤0.1dB(Premium Grade);
Return Loss ≥50 dB ≥60 dB ≥35 dB
Durability (1000 Mating) 0.1dB Max.
Withdrawal force(g/f) 2.0N ~ 5.9N (200gf ~ 600gf)
Storage Temp(℃) -40~+85



Products details:



Reduced Flange type Drawing
LC Quad Single Mode Optical Fiber Adapter PC Body With Internal Shutter Reduced Flange LC Quad Single Mode Optical Fiber Adapter PC Body With Internal Shutter Reduced Flange



Features:



TIA/EIA-604 FOCIS-10 compatible; exceeds TIA/EIA-568-B.3 requirements

Complies with IEC 61754-4, Flammability UL94 V-0 standard

Available in Flanged and Flangeless options

Precision connection with sleeve

Low insertion loss, High Return loss

Good interchangeability and reliability

Meet IEC and ROHS standards

High precision of mechanical dimensions Accuracy



Material



Parts name Material Color
Housing body PC Blue, Green Customized
Sleeve High precision Ceramic sleeve White
Inside hook PC Blue, Green Customized
Metal Plate Bronze bronze -
Inner shutter SUS304 -
Dust Cover PVC Black



Environment and Mechanical



Properties Test condition Conformance Test result
Vibration 10-55Hz, 1.5mm, 60min IEC61300-2-1 ≤0.2dB
Mating Durability 1000 Mating, clean every 25 mating. IEC61300-2-2 ≤0.2dB
Impact 1.5m, 8 drops IEC61300-2-6 ≤0.2dB
Strength of Coupling Mechanism 40N, 10Min, L=22-28cm IEC61300-2-12 ≤0.2dB
Temperature Cycling 40ºC to +75ºC, 40 cycles IEC61300-2-22 ≤0.2dB
Temperature humidity cycling 40ºC, 95%, 96Hr IEC61300-2-21 ≤0.2dB
Operating Temperature -40ºC to +85ºC   ≤0.2dB
Storage Temperature -40ºC to +85ºC   ≤0.2dB



Application:



Patch panels, ODF and other optical connections.

Optical networks demarcation and monitoring point
