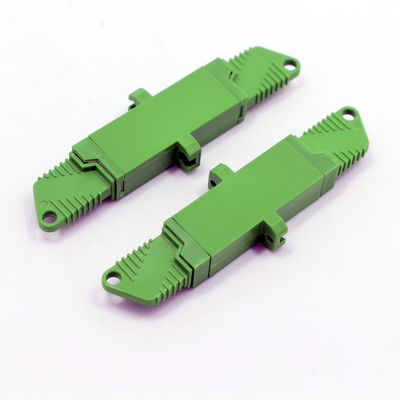

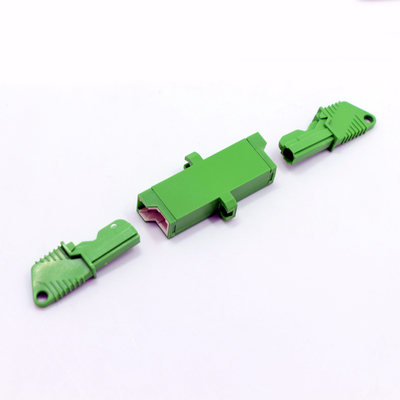

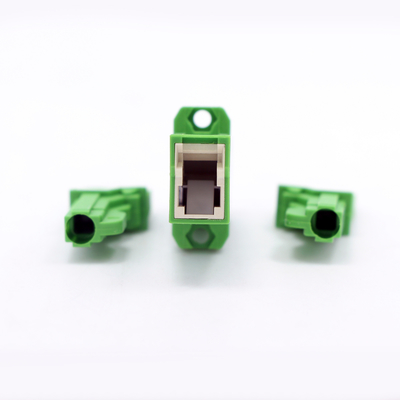

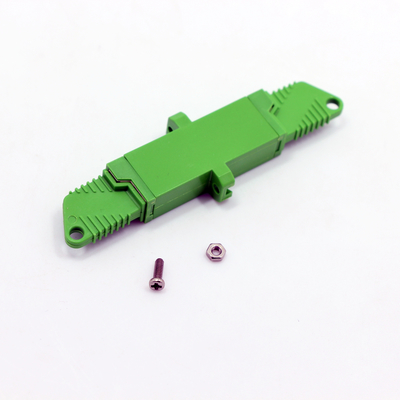

Fiber Optic Adapter E2000 / APC to E2000 / APC 9 / 125μm SX With Ceramic Sleeve Green

Place of Origin China
Brand Name OMC or OEM
Certification ISO 9001, RoHS
Model Number E2000 / APC to E2000 / APC 9 / 125μm SX
Minimum Order Quantity 10pcs
Price Negotiable
Packaging Details One piece in one plastic box, Several boxes then packed in a 54*39*35 carton paper box other size carton is available too.
Delivery Time 3 days after payment confirmed
Payment Terms Western Union, L/C, T/T, Paypal
Supply Ability 1000000pcs /month
Product Details
Product Name Fiber Optic Adapter E2000 / APC To E2000 / APC 9 / 125μm SX With Ceramic Sleeve Green Insertion Loss <0.2dB (100%)
Return Loss >35dB Sleeve Ceramic Sleeve 2.5mm-2.5mm
Durability 1000 Times Material Plastic, Metal
Withdrawl Force(g/f) 200~600 Temp -40°C To +80°C
High Light

single mode fiber adapter


fiber optic connector adapters

Leave a Message
Product Description

Fiber Optic Adapter E2000 / APC to E2000 / APC 9 / 125μm SX With Ceramic Sleeve Green



Our range of high quality E2000 adapters have high precision alignment sleeves for reliability and improved reconnectability. A ceramic sleeve is supplied to ensure a high precison alignment.The housing is available in different colors with options for flange or flangeless body, metal clips or inbuilt clips. A protective cap is provided at each end of the adaptor with the same color as the adaptor.


Optical Adaptor are developed to couple and mate two identical or two different (hybrid) connector plugs. The housing of the Adaptors of the last generation has a reference key for the right position coupling and zirconia or phosphorus bronze split sleeve for high alignment.


Fiber optical adapters uses a sleeve to precisely connect two side optical fiber connectors to allow signals to be transmitted at sufficiently low insertion loss. Fiber optical adapter include: SC, LC, FC, ST, MU, D4, DIN, E2000, SMA and other series.


OMC could supply standard types of Adaptors, such as SC-FC, SC-ST, FC-ST, SC-LC, FC-LC and ST-LC etc. Hybrid adaptor.


OMC Adaptors design, material and manufacturing process assure long life and high repeatability of optical performances even for different brand connectors mating.




Compliant with European (EN 186270) and International (IEC 61754-15) standards.

Push-pull locking mechanism for easy installation

Precision connection with sleeve

SM and MM connector can be used interchangeably

Low insertion loss, High Return loss

Good interchangeability and reliability

Meet IEC and ROHS standards

High precision of mechanical dimensions Accuracy




 ITEM SM - 9/125um MM - (50/125um ; 62.5/125um)
Insertion Loss ≤0.2dB ≤0.2dB
Return Loss PC≥45dB; UPC≥50dB ; APC≥60dB --
Withdrawal force (g/f) 200~600 200~600
Repeatablility 0.1dB Max 0.1dB Max
Durability <0.10 dB typical change, 1000 matings <0.10 dB typical change, 1000 matings
Temperature Range -40°C to +80°C -40°C to +80°C
ROHS Certificated Available  Available




Parts name Material Color
Housing body PBT Green
Sleeve High precision Ceramic sleeve Sleeve
Inside hook PBT/PPS Green
Dust Cover PBT Green


Available for Simplex of SM UPC, SM APC, MM OM1 62.5/125, MM OM2 50/125




Patch panels, ODF and other optical connections.

Optical networks demarcation and monitoring point.






Product Details:




Packaging & Shipping




Company Information:


OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.


Fiber Optic Adapter E2000 / APC to E2000 / APC 9 / 125μm SX With Ceramic Sleeve Green 3

Fiber Optic Adapter E2000 / APC to E2000 / APC 9 / 125μm SX With Ceramic Sleeve Green 4

Fiber Optic Adapter E2000 / APC to E2000 / APC 9 / 125μm SX With Ceramic Sleeve Green 5


Fiber Optic Adapter E2000 / APC to E2000 / APC 9 / 125μm SX With Ceramic Sleeve Green 7

Fiber Optic Adapter E2000 / APC to E2000 / APC 9 / 125μm SX With Ceramic Sleeve Green 8
