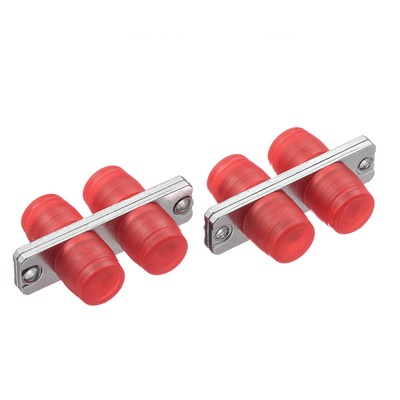

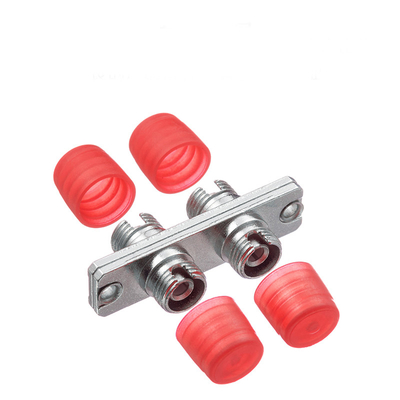

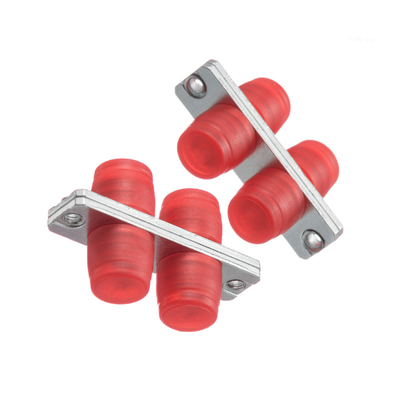

Optical Fiber Adapter FC Duplex Single Mode With 9 / 125μm Rectangle Mount Configurations

  • Optical Fiber Adapter FC Duplex Single Mode With 9 / 125μm Rectangle Mount Configurations
  • Optical Fiber Adapter FC Duplex Single Mode With 9 / 125μm Rectangle Mount Configurations
  • Optical Fiber Adapter FC Duplex Single Mode With 9 / 125μm Rectangle Mount Configurations
Place of Origin China
Brand Name OMC or OEM
Certification ISO9001; RoHS
Model Number FC DX SM With Rectangle Mount Configurations
Minimum Order Quantity ≥100pcs
Price Negotiable
Packaging Details blister box packing: 20pcs /blister blister size: 23cm(L)*18cm(W)*1.5cm(H) Carton box packing = 120 blisters /box Carton box size:52cm(L)*38.5(W)*33.5cm(H); GW:18KG
Delivery Time 5-8 working days
Payment Terms L/C, T/T, Western Union, Paypal
Supply Ability 5000000pcs / month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Optical Fiber Adapter FC Duplex Single Mode With 9 / 125μm Rectangle Mount Configurations Insertion Loss <0.2dB (100%)
Return Loss >50dB Durability <0.10 DB Typical Change, 1000 Matings
Sleeve Ceramic FC 2.5mm Sleeve Withdrawal Force (g/f) 200~600
High Light

single mode fiber adapter

,

fiber optic cable adapter
Leave a Message
Product Description

Optical Fiber Adapter FC Duplex Single Mode With 9 / 125μm Rectangle Mount Configurations





FC rectangle mount configurations Duplex fiber adapter are developed to couple and mate four FC connector plugs. The housing of the Adapters of the last generation has a reference key for the right position coupling and zirconia or phosphorus bronze split sleeve for high alignment.



OMC Adapters design, material and manufacturing process assure long life and high repeatability of optical performances even for different brand connectors mating.



Features:



NTT-FC compatibility

Corrosion resistant housing

Precision connection with sleeve

SM and MM connector can be used interchangeably

Low insertion loss, High Return loss

Good interchangeability and reliability

Meet IEC and ROHS standards

High precision of mechanical dimensions Accuracy



Specifications



Test item (SM-9/125) UPC (SM-9/125) APC MM PC
Insertion Loss ≤0.2dB ≤0.2dB ≤0.2dB
Return Loss ≥50 dB ≥60 dB ≥35 dB
Durability (1000 Mating) 0.1dB typical change
Withdrawal force(g/f) 2.0N ~ 5.9N (200gf ~ 600gf)
Storage Temp(℃) -40～+85



Material



Parts name Material Color
Housing body Nickel-plated brass or nickel-plated zinc -
Sleeve High precision Ceramic sleeve White
Dust Cover Rubber Red/Black/Green/White



 Application:



l  Patch panels, ODF and other optical connections.

l  Optical networks demarcation and monitoring point



Available for Simplex of SM UPC, SM APC, MM OM1 62.5/125, MM OM2 50/125



Drawing:



Optical Fiber Adapter FC Duplex Single Mode With 9 / 125μm Rectangle Mount Configurations 0



Products Detail:






Package Method:






Company Information:



OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.



Optical Fiber Adapter FC Duplex Single Mode With 9 / 125μm Rectangle Mount Configurations 3

Optical Fiber Adapter FC Duplex Single Mode With 9 / 125μm Rectangle Mount Configurations 4

Optical Fiber Adapter FC Duplex Single Mode With 9 / 125μm Rectangle Mount Configurations 5


Optical Fiber Adapter FC Duplex Single Mode With 9 / 125μm Rectangle Mount Configurations 7

Optical Fiber Adapter FC Duplex Single Mode With 9 / 125μm Rectangle Mount Configurations 8


FAQ:



1. Are you the real factory?

Yes,we are the real factory more than 10 years



2. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.



3. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.



4. What is your delivery time?

Within 24 hours for normal kinds of fiber optic cable;

3~5 days for fiber optic patch cords with 10000 connectors.



5. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.



6. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.



7. Payment

For large orders: T/T, L/C

For small orders: T/T,Western Union and Paypal are acceptable
