Fiber Optic Adapter MPO Key Up To Key Up SC Footprint Reduced Flange For Type B MPO Trunk Cable

Place of Origin China
Brand Name OMC or OEM
Certification ROHS and ISO
Model Number MPO SC Footprint Key Up To Key Up
Minimum Order Quantity 500pcs
Price Negotiable
Packaging Details Blister box: 25pcs / blister, blister size:23cm(L)*18cm(W)*1.5cm(H) ; Carton box: 3000pcs/box, Carton box size: 52cm(L)*38.5cm(W)*33.5cm(H)
Delivery Time 3 days after payment confirmed
Payment Terms Western Union, L/C, T/T, Paypal
Supply Ability 1000000pcs/month
Product Details
Products Fiber Optic Adapter MPO Key Up To Key Up SC Footprint Reduced Flange For Type B MPO Trunk Cable Insertion Loss <0.20dB
Durability <0.10 DB Typical Change, 500 Matings Intermateability IEC 61754-7 And TIA/EIA 604-5 Standards
Availability SC Simplex Or MTP Footprint Operating Temperature -40 To + 85°C
OEM Service Available Certificate RoHS, ISO9001
High Light

fiber optic cable adapter

,

fiber optic connector adapters

Leave a Message
Product Description

Fiber Optic Adapter MPO Key Up To Key Up SC Footprint Reduced Flange For Type B MPO Trunk Cable





MPO/MTP Standard footprint Adapter-Reduced flange

MPO/MTP adapter provides alignment for a male and female MPO/MTP connector. The housing is available with MPO/MTP or SC footprint, aligned or opposed alignment keys, different colors and with options for flange or flangeless body.

MTP/MPO adapter has two types as key-up to key-down and key-up to key-up. It provides the connection between cable to cable or cable to equipment in the MTP/MPO style. It works for any MTP Connector from 4 fibers to 72 fiber, widely used in trunk cabling and cassettes. This adapter meets appropriate standards and is perfect for your parallel optics and MTP adapter needs.



MPO/MTP fiber optical adapter comply with industry standard TIA - 568C. 3-2008 (standard of fiber optical system) and YD/T1272.5-2009 (fiber optical connector part v: MPO style).



OMC Adapters design, material and manufacturing process assure long life and high repeatability of optical performances even for different brand connectors mating.



Product Specifications



Connector Type MTP/MPO Foot print Keyway

Opposed (Up-Down)

Aligned (Up-Up)

Adapter Port Single Footprint SC
Insertion Loss ≤0.2dB Durability ≤0.1dB
Flammability Rate UL94-V0 Working Temperature -25~70°C



Material



Parts name Material Color
Housing body Polyetherimide Black, Green, Yellow, Beige, Aqua, Magenta or Customized
Metal Plate Stainless steel -
Dust Cover PC/Rubber Black



Product Features:



One-piece design

Anti-Fungus Plastic

Internal Shutter Capable

Stainless Steel Clip

Full flange type



Application:



Adapters Bridge the Gap Between Fiber Optic Connectors, Our MTP/MPO fiber optic adapters are widely applied in 10G/40G/100G networks, data center, optical fiber communication system, cable television network, fiber optic access network and video transmission.



Products detail

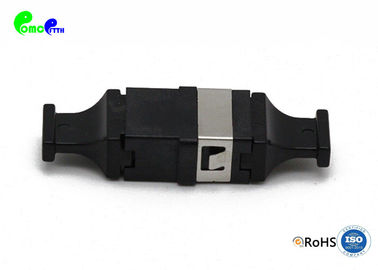

Fiber Optic Adapter MPO Key Up To Key Up SC Footprint Reduced Flange For Type B MPO Trunk Cable 0

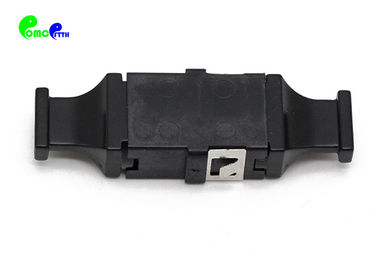

Fiber Optic Adapter MPO Key Up To Key Up SC Footprint Reduced Flange For Type B MPO Trunk Cable 1

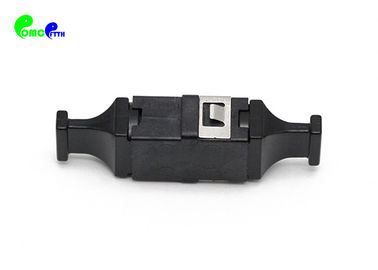

Fiber Optic Adapter MPO Key Up To Key Up SC Footprint Reduced Flange For Type B MPO Trunk Cable 2

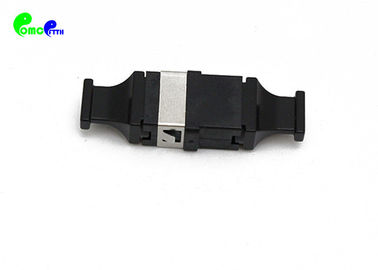

Fiber Optic Adapter MPO Key Up To Key Up SC Footprint Reduced Flange For Type B MPO Trunk Cable 3



Package method



Fiber Optic Adapter MPO Key Up To Key Up SC Footprint Reduced Flange For Type B MPO Trunk Cable 4





Company Information:



OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.



Fiber Optic Adapter MPO Key Up To Key Up SC Footprint Reduced Flange For Type B MPO Trunk Cable 5

Fiber Optic Adapter MPO Key Up To Key Up SC Footprint Reduced Flange For Type B MPO Trunk Cable 6

Fiber Optic Adapter MPO Key Up To Key Up SC Footprint Reduced Flange For Type B MPO Trunk Cable 7


Fiber Optic Adapter MPO Key Up To Key Up SC Footprint Reduced Flange For Type B MPO Trunk Cable 9

Fiber Optic Adapter MPO Key Up To Key Up SC Footprint Reduced Flange For Type B MPO Trunk Cable 10
