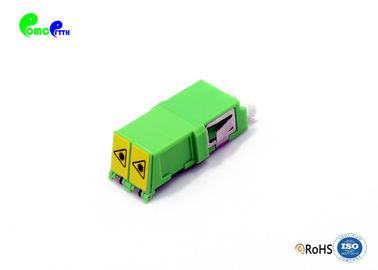

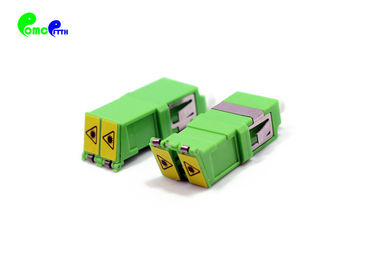

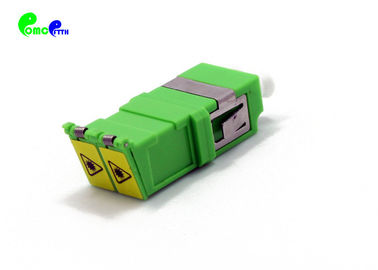

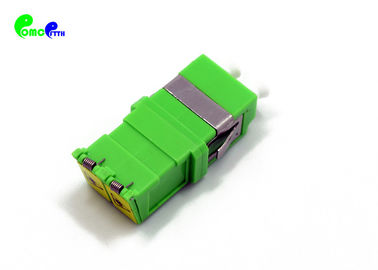

Two Door Type LC APC Duplex Fiber Optic Adapter With Integrated Outer Shutter Color Green

Place of Origin China
Brand Name OMC or OEM
Certification ROHS and ISO
Model Number LC APC Duplex Green
Minimum Order Quantity 1 piece
Price Negotiable
Packaging Details 25 pcs in a plastic box, several boxes in a carton of 54*39*35cm
Delivery Time 3 days after payment confirmed
Payment Terms T/T, Western Union
Supply Ability 1000000 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Products Two Door Type LC APC Duplex Fiber Optic Adapter With Integrated Outer Shutter Color Green IL <0.2dB
Return Loss >50dB Durability 1000 Times
Temp -40°C To +80°C Certification ISO9001:2008,ROHS
Sleeve Ceramic LC 1.25mm Sleeve Material Plastic
Withdrawal Force (g/f) 200~600 Application Patch Panels, ODF And Other Optical Connections
High Light

single mode fiber adapter

,

fiber optic cable adapter

Leave a Message
Product Description

Two Door Type LC APC Duplex Fiber Optic Adapter With Integrated Outer Shutter Color Green





LC Duplex Adapter with Integrated Outer Shutter is equipped with hinged dust cover, also called auto shutter adaptor. It is also available for SC adaptors with flange or without flange. It is developed to couple and mate 4 LC connector plugs. Each LC adapter has receptacles on both ends to connect LC patch cords together. It has stainless steel mounting clips allowing it to be easily snapped into rectangular cut outs for duplex SC mount.



Our range of high-quality LC adapters have high precision alignment sleeves for reliability and improved reconnect ability. For single mode and multimode applications, a ceramic sleeve is supplied. The housing is available in different colors with options for flange or flangeless body, metal clips or inbuilt clips.



OMC Adapters design, material and manufacturing process assure long life and high repeatability of optical performances even for different brand connectors mating.



Spec Performance:



Connector Type LC-LC Polish Type APC
Fiber Counts Duplex Fiber Mode Singlemode
Insertion Loss ≤0.2dB Durability ≤0.1dB
Flammability Rate UL94-V0 Working Temperature -25~70°C



Material



Parts name Material Color
Housing body PC/PEI Blue, Green
Sleeve High precision Ceramic sleeve White
Inside hook PBT/PEI Blue, Green
Metal Plate Stainless steel -
Outer shutter PC/PEI+ Stainless steel spring Blue, Green
Dust Cover ABS White



Environment and Mechanical



Properties Test condition Conformance Test result
Vibration 10-55Hz, 1.5mm, 60min IEC61300-2-1 ≤0.2dB
Mating Durability 1000 Mating, clean every 25 mating. IEC61300-2-2 ≤0.2dB
Impact 1.5m, 8 drops IEC61300-2-6 ≤0.2dB
Strength of Coupling Mechanism 40N, 10Min, L=22-28cm IEC61300-2-12 ≤0.2dB
Temperature Cycling 40ºC to +75ºC, 40 cycles IEC61300-2-22 ≤0.2dB
Temperature humidity cycling 40ºC, 95%, 96Hr IEC61300-2-21 ≤0.2dB
Operating Temperature -40ºC to +85ºC   ≤0.2dB
Storage Temperature -40ºC to +85ºC   ≤0.2dB



Application:

  • Patch panels, ODF and other optical connections.
  • Optical networks demarcation and monitoring point

Two Door Type LC APC Duplex Fiber Optic Adapter With Integrated Outer Shutter Color Green 0



Packaging & Shipping



Several piece in one plastic box,
Several boxes then packed in a 54*39*35 carton paper box

Other size carton is available too.



Two Door Type LC APC Duplex Fiber Optic Adapter With Integrated Outer Shutter Color Green 1



Company Information:



OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.



Two Door Type LC APC Duplex Fiber Optic Adapter With Integrated Outer Shutter Color Green 2

Two Door Type LC APC Duplex Fiber Optic Adapter With Integrated Outer Shutter Color Green 3

Two Door Type LC APC Duplex Fiber Optic Adapter With Integrated Outer Shutter Color Green 4


Two Door Type LC APC Duplex Fiber Optic Adapter With Integrated Outer Shutter Color Green 6

Two Door Type LC APC Duplex Fiber Optic Adapter With Integrated Outer Shutter Color Green 7



FAQ:



1. Are you the real factory?

Yes,we are the real factory more than 10 years



2. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.



3. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.



4. What is your delivery time?

Within 24 hours for normal kinds of fiber optic cable;

3~5 days for fiber optic patch cords with 10000 connectors.



5. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.



6. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.



7. Payment

For large orders: T/T, L/C

For small orders: T/T,Western Union and Paypal are acceptable
