62.5 / 125μm Simplex ST Female To SC Male Fiber Optic Adapter For Optical Networks Demarcation And Monitoring Point

China 62.5 / 125μm Simplex ST Female To SC Male Fiber Optic Adapter For Optical Networks Demarcation And Monitoring Point supplier
62.5 / 125μm Simplex ST Female To SC Male Fiber Optic Adapter For Optical Networks Demarcation And Monitoring Point supplier 62.5 / 125μm Simplex ST Female To SC Male Fiber Optic Adapter For Optical Networks Demarcation And Monitoring Point supplier 62.5 / 125μm Simplex ST Female To SC Male Fiber Optic Adapter For Optical Networks Demarcation And Monitoring Point supplier 62.5 / 125μm Simplex ST Female To SC Male Fiber Optic Adapter For Optical Networks Demarcation And Monitoring Point supplier

Large Image :  62.5 / 125μm Simplex ST Female To SC Male Fiber Optic Adapter For Optical Networks Demarcation And Monitoring Point

Product Details:

Place of Origin: Shenzhen,China
Brand Name: OMC or OEM
Certification: ROHS and ISO
Model Number: 62.5 / 125μm Simplex ST Female To SC Male

Payment & Shipping Terms:

Minimum Order Quantity: 20 piece
Price: Negotiable
Packaging Details: 25 pcs in a plastic box, several boxes in a carton of 54*39*35cm
Delivery Time: 3 days after payment confirmed
Payment Terms: T/T, Western Union, MoneyGram,alipay,credit card
Supply Ability: 1000000 pcs per month
Contact Now
Detailed Product Description
Product Name: 62.5 / 125μm Simplex ST Female To SC Male Fiber Optic Adapter For Optical Networks Demarcation And Monitoring Point IL:: <0.2dB
Return Loss:: >50dB Durability:: 1000 Times
Temp:: -40°C To +80°C Sleeve:: Ceramic Sleeve 2.5mm-2.5mm
Withdrawal Force (g/f):: 200~600 Application:: Patch Panels, ODF And Other Optical Connections

62.5 / 125μm Simplex ST Female To SC Male Fiber Optic Adapter For Optical Networks Demarcation And Monitoring Point





Female to male conversion adapter adopt embedded optical fiber connector and optical fiber ferrule matching Sleeve joint technology. The products can hybrid a type of fiber optic connectors (male) into another type of optical fiber connector (male). It keeps the advantages of small size, light signal stable, easy to use characteristics, widely used in optical fiber equipment instrument testing and rescue project construction field.



This ST(Female) to SC(Male) type fiber optic conversion adapter, Converting ST connector to SC Connector. Variable ST interface conversion SC interface. Provided a simple and reliable solution for connecting two different optic fiber transmission joints.



Features

Low insertion loss

High corrosion resistance

High interface performance

High return loss

Easy to handle

Environmentally stable



Specifications



Test item (SM-9/125) UPC (SM-9/125) APC MM-50/125 PC MM-62.5/125 PC
Insertion Loss ≤0.3dB ≤0.3dB ≤0.3dB ≤0.3dB
Return Loss ≥50 dB ≥60 dB ≥35 dB ≥35 dB
Durability (500 Mating) 0.2dB Max.
Operation Temp -40~+85
Storage Temp -40~+85
Remark: ST Female to SC Male Hybrid Adapter are ultra-reliable components featuring low insertion loss and back reflection loss. You can select single mode 9/125um or multimode 62.5/125um or multimode 50/125um.



Available for Simplex and Duplex , SM UPC, SM APC, MM OM1 62.5/125, MM OM2 50/125



Applications



Telecom network

Optical data transmission connection

Fiber optic equipment testing and engineering rescue construction

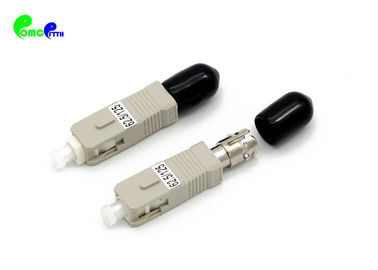

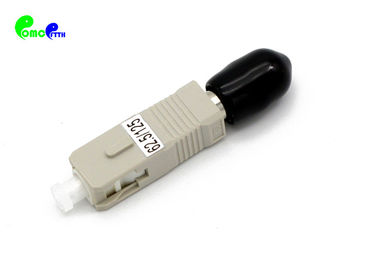

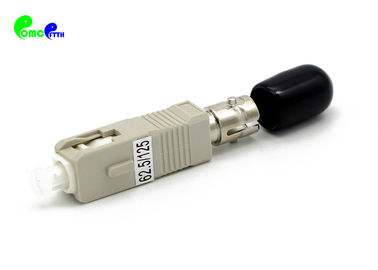

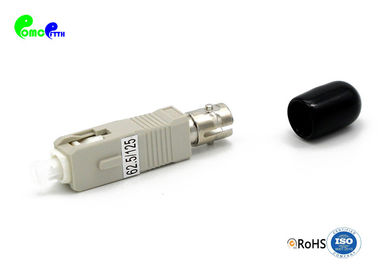

Products detail



62.5 / 125μm Simplex ST Female To SC Male Fiber Optic Adapter For Optical Networks Demarcation And Monitoring Point

62.5 / 125μm Simplex ST Female To SC Male Fiber Optic Adapter For Optical Networks Demarcation And Monitoring Point



Packaging & Shipping



Several piece in one plastic box,
Several boxes then packed in a 54*39*35 carton paper box

Other size carton is available too.



62.5 / 125μm Simplex ST Female To SC Male Fiber Optic Adapter For Optical Networks Demarcation And Monitoring Point



Company Information:



OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.



62.5 / 125μm Simplex ST Female To SC Male Fiber Optic Adapter For Optical Networks Demarcation And Monitoring Point

62.5 / 125μm Simplex ST Female To SC Male Fiber Optic Adapter For Optical Networks Demarcation And Monitoring Point

62.5 / 125μm Simplex ST Female To SC Male Fiber Optic Adapter For Optical Networks Demarcation And Monitoring Point


62.5 / 125μm Simplex ST Female To SC Male Fiber Optic Adapter For Optical Networks Demarcation And Monitoring Point

62.5 / 125μm Simplex ST Female To SC Male Fiber Optic Adapter For Optical Networks Demarcation And Monitoring Point
