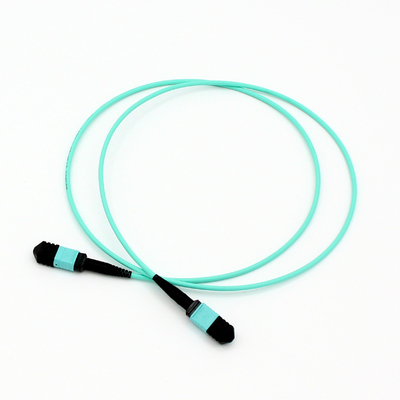

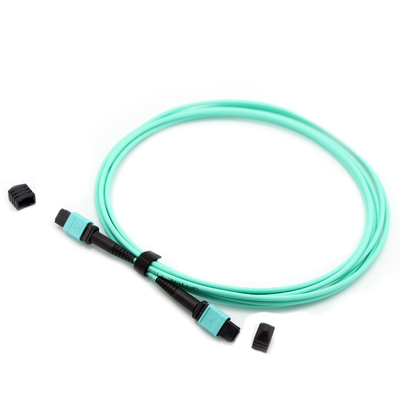

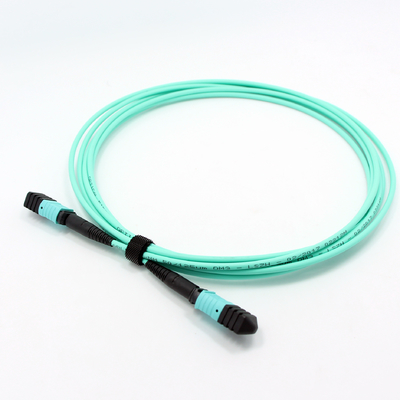

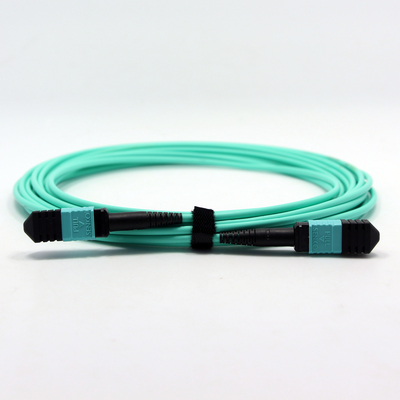

12F OM3 3.0mm MPO MPO Patch Cord PVC LSZH Aqua Senko Super Low Insertion Loss

12F OM3 3.0mm MPO-MPO Patch cord PVC LSZH Aqua Senko Super Low Insertion Loss

12F MPO TRUNK CABLE is terminated with MPO/MTP connector on both ends. MPO/MTP Patch cable/trunk cables connect MPO/MTP modules together as a permanent link. The Patch cable/trunk cables are available with 12, 24, 48,60,72 ,96,144fibers. Support speeds up to 10/40/100Gbps data center solutions. They are typically adopted to interconnect cassettes, panels or ruggedized MPO/MTP fan-outs, and to facilitate rapid deployment of high-density backbone cabling in data centers and other high fiber environments. Besides, MPO/MTP also provides much flexibility and convenience once you have to change the connector style in the patch panels. Instead of changing the connector
on the cable trunk, just installing a new cassette with the new connector style on the cross-connect side of the patch panel.

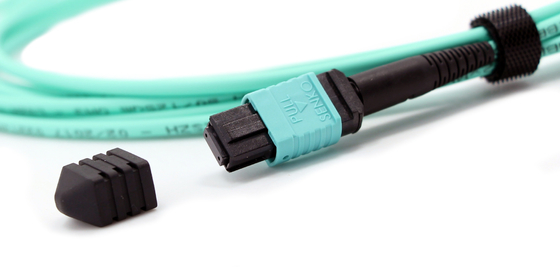

MPO Connector Types

Connector	Fiber Channel
MPO female Connectors	12 Fibers per one
Note: Female connector need to connect with male connector type.

Note: Maximum Bandwidths of Different Multimode Fibers

Length Tolerance

Features:

Low insertion loss, high return loss

MT based Multi-fiber Connector, 36-144 fiber connector terminations and assemblies

Economical solution for mass-termination of fiber

Designed for low loss and standard loss SM and MM applications

Ruggedized round cable, oval cable and bare ribbon options available

Color coded housings available to differentiate fiber type, polish type and/or connector grade

Good in repeatability and exchangeability

High Quality MPO/MTP Cable Guarantee

1. High-performance polishing machine, and complemented by precision plates holders designed for MT ferrules.
2. 3D interferometer provides verification of MTP/MPO polishing process, and making all parameters of the polished MT ferrule complies and exceeds industry standards.
3. The flexibility of the tester provides the complete spectrum of optical testing required for complex and high fiber count cable assemblies.

Packaging

fault .Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on goods

Qty . Packing can be customized.

Company Information:



OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.



---

FAQ:



1. Are you the real factory?

Yes,we are the real factory more than 10 years



2. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.



3. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.



4. What is your delivery time?

Within 24 hours for normal kinds of fiber optic cable;

3~5 days for fiber optic patch cords with 10000 connectors.



5. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.
