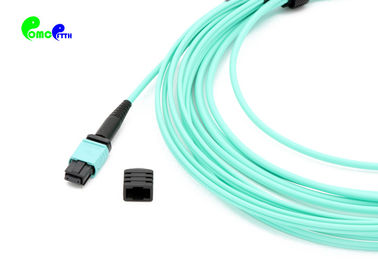

OM3 Breakout 2.0mm MPO Trunk Cable 12F MPO Female to SC UPC With 50 / 125μm LSZH Aqua Color

China OM3 Breakout 2.0mm MPO Trunk Cable 12F MPO Female to SC UPC With 50 / 125μm LSZH Aqua Color supplier
OM3 Breakout 2.0mm MPO Trunk Cable 12F MPO Female to SC UPC With 50 / 125μm LSZH Aqua Color supplier OM3 Breakout 2.0mm MPO Trunk Cable 12F MPO Female to SC UPC With 50 / 125μm LSZH Aqua Color supplier OM3 Breakout 2.0mm MPO Trunk Cable 12F MPO Female to SC UPC With 50 / 125μm LSZH Aqua Color supplier OM3 Breakout 2.0mm MPO Trunk Cable 12F MPO Female to SC UPC With 50 / 125μm LSZH Aqua Color supplier

Large Image :  OM3 Breakout 2.0mm MPO Trunk Cable 12F MPO Female to SC UPC With 50 / 125μm LSZH Aqua Color

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Senko
Certification: ROHS and ISO
Model Number: OM3 Breakout 2.0mm 12F MPO Female to SC UPC

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: 1 piece in a plastic bag, several pieces in a master bag, then packed in a carton of 54*39*35cm
Delivery Time: 1 week
Payment Terms: Western Union, T/T, alipay, paypal,credit card
Supply Ability: 1000000 pcs per month
Contact Now
Detailed Product Description
Product Name: OM3 Breakout 2.0mm MPO Trunk Cable 12F MPO Female To SC UPC With 50 / 125μm LSZH Aqua Color Connector B: 6xSC UPC MM Duplex
Fiber Mode: OM3-50/125 MPO Connector IL: 0.35dB Max(0.15dB Typ.)
MPO Connector RL: >25dB SC Connector 's IL: <0.3dB
SC Connector 's RL: >50dB Operating Temperature:: -40 To + 85°C
High Light:

mpo harness cable

,

mpo fanout cable

OM3 Breakout 2.0mm MPO Trunk Cable 12F MPO Female to SC UPC With 50 / 125μm LSZH Aqua Color

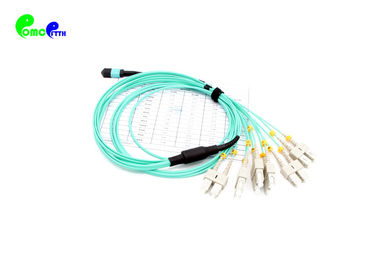

12 cores MPO to 6 SC Duplex( 6xSC uniboot;12 C Simplex) Straight harness Cables assemblies.


MPO- LC/SC/FC/ST Straight harness Cables are terminated with MPO and LC/SC/FC/ST connector on both ends. The
12pcs(6pcs for SC uniboot;12 SC Simplex) fanout cables are optimized for 40G QSFP+ PLR4 to 10G SFP+ LR optics direct
connection and high-density data center applications. have same length . It's specifically designed for high-density fiber
patching in data centers which need space saving and reduce cable management troubles.


12F MPO- LC/SC/FC/ST Straight harness Cables designed for 40G LR4 PSM, 40GBASE-SR4, 40G QSFP+ PLR4 and highdensity
data center. It is optimized for 10/40/100G high-density data center applications.



Optical Specifications



    Multimode Singlemode



IL

MPO

Single max :0.35db (L)

Single Max : 0.60db (G)

Single max :0.35db(L)

Single max :0.75db (G)

LC

MAX :0.10dB(L)

MAX :0.15 db (G)

Max:0.3db



RL

MPO >25DB >60DB (8 degree Angle Polish )
LC >35DB >50 db (UPC) >60DB(APC)



Mechanical

MPO <0.2DB, 200 times insertion
LC <0.2DB, 500 times insertion



Enviromental

working temperature -20~ +60 'C
storage temperature -40~ + 70'C
  Install temperature -5~ + 50'C



OM3 Breakout 2.0mm MPO Trunk Cable 12F MPO Female to SC UPC With 50 / 125μm LSZH Aqua Color


MPO Connector Types

OM3 Breakout 2.0mm MPO Trunk Cable 12F MPO Female to SC UPC With 50 / 125μm LSZH Aqua Color

Two other clearly visible features are the noses and guide grooves (keys) on the top side.
(Note: Female connector need to connect with male connector type.)


Features:

- Low insertion loss, high return loss
- MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies
- Economical solution for mass-termination of fiber
- Designed for low loss and standard loss SM and MM applications
- Ruggedized round cable, oval cable and bare ribbon options available
- Color coded housings available to differentiate fiber type, polish type and/or connector grade
- Good in repeatability and exchangeability

AVAILABILITY:

- Ribbon and bundle cable available;
- Patch cord, pigtail cable assemblies available.
- MT-MT ribbon patch cord is available.
- MPO Loopback available



OM3 Breakout 2.0mm MPO Trunk Cable 12F MPO Female to SC UPC With 50 / 125μm LSZH Aqua Color


The package will be packed according to standard export requirements, customer satisfication is our target.


Label printing : Customer logo or OMC brand are available
Inner packing: 5pcs in one carton
Outer packing: the carton will be packed with sack, well protect carton from dust and wet.
The transportation: By air ,by sea ,by DHL ,Fedex TNT ,UPS ...



Competitive Advantages



1).Lead time


With more than 200 employees in my company,at least 10,000 connectors can be produced.


2).Research Department


With our separate research team,so we are able to have products made according to your requirements.


3).Quality assurance


Every product will be tested to be of good quality.Meanwhile free samples can be supplied for your test.
The guarantee period is 10 years.So if there are problems with the goods,replacement will be available.



Packaging


This easily taken and well-protected fiber patch cable package has been labelled and marked by OMC as default
standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on goods Qty .
Packing can be customized.



OM3 Breakout 2.0mm MPO Trunk Cable 12F MPO Female to SC UPC With 50 / 125μm LSZH Aqua Color
