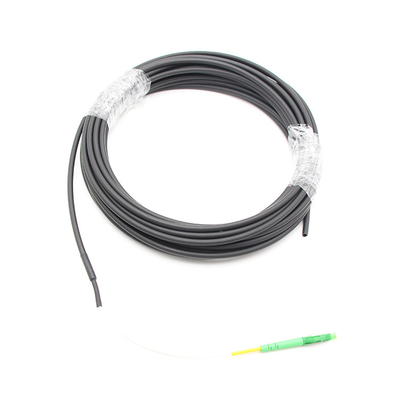

FTTH Outdoor Fiber Optic Pigtail LC APC 4.5mm Double Jackets CCA LSZH Simplex

  • FTTH Outdoor Fiber Optic Pigtail LC APC 4.5mm Double Jackets CCA LSZH Simplex
  • FTTH Outdoor Fiber Optic Pigtail LC APC 4.5mm Double Jackets CCA LSZH Simplex
  • FTTH Outdoor Fiber Optic Pigtail LC APC 4.5mm Double Jackets CCA LSZH Simplex
Place of Origin China
Brand Name OMC or OEM
Certification ROHS and ISO
Model Number LC APC simplex 4.5mm outdoor fiber optic pigtail
Minimum Order Quantity 10pcs
Price Negotiable
Packaging Details one peace in box, several pieces in cartoon
Delivery Time 2-4 work days
Payment Terms L/C, T/T, Western Union, Paypal
Supply Ability 200000 per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Products LC APC Simplex 4.5mm Outdoor Fiber Optic Pigtail Return Loss ≥60 DB
Insertion Loss ≤0.3 DB Wavelength 1310nm/1550nm
Polish Type APC Fiber Count 1F
Fiber Grade G657A2 Cable Diameter 4.5 Mm
Cable Jacket CCA LSZH Jacket Color White/Black
High Light

FTTH Fiber Optic Pigtail

,

Fiber Optic Pigtail 4.5mm

,

CCA LSZH buffer fiber optic cable
Leave a Message
Product Description

FTTH Outdoor Fiber Optic Pigtail LC APC 4.5mm Double Jackets CCA LSZH Simplex Pre-terminated Patch Cords



The fiber optic pigtail is normally a tight/semi-tight buffered fiber cable with a connector pre terminated on one end and exposed fiber on the other. The end is stripped and fusion spliced to a single or multi-fiber trunk. When utilized properly, the fiber optic pigtail allows light signal transmission with minimal return loss and low attenuation. Make sure your network is reinforced with OMC’s fiber pigtails, as ours are manufactured of superior quality materials.

This 9/125 OS2 single mode fiber optic cable is ideal for connecting 1G/10G/40G/100G/400G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm



Connector’s Standard:

LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973





Cable Specification

Items Description
Number of fiber 1F
Fiber type G657A2
Loose Buffer Material PVC
Diameter 0.9±0.05mm
Strength member Material Aramid Yarn
Inner sheath Material CCA LSZH
Color White
Diameter 2.0±0.1mm
Outer sheath Material CCA LSZH
Color Black
Diameter 4.5±0.45mm
Cable weight 19kg/km
Installation Temperature range(℃) -10+60
Operation and transport temperature(℃) -20+70
Min Bending Radius(mm) Long term 10D
Min Bending Radius(mm) Short term 20D
Min allowable Tensile Strength(N) Long term 100
Min allowable Tensile Strength(N) Short term 350
Crush Load (N/100mm) Long term 100
Crush Load (N/100mm) short term 500





Optical Specification





Connector LC Polish APC
Fiber Mode 9/125μm, G657A2 Jacket Color White/Black
Cable OD 4.5mm Wavelength SM:1310/1550nm
Cable Structure Simplex Jacket Material CCA LSZH
Insertion loss ≤0.3dB(IEC Grade C) Crush Resistance(N/100mm)

Long term 100;

short term:500
Return loss SM APC ≥ 60dB(min) Interchangeability &Vibration ≤0.2dB
Tensile Strength(N)

Long term 100;

short term:350

 Operation&Storage temperature -45~85°C



End-face Quality (SM)



Zone Range (μm) Scratches Defects Reference
A: Core 0 to 25 None None IEC 61300-3-35:2015
B: Cladding 25 to 115 None None
C: Adhesive 115 to 135 None None
D: Contact 135 to 250 None None
E: Rest of ferrule None None





Length Tolerance

FTTH Outdoor Fiber Optic Pigtail LC APC 4.5mm Double Jackets CCA LSZH Simplex 0

Overall Length(L)(m) length of tolerance(cm)
0<L<1 +5/-0
1<L<10 +10/-0
10<L<40 +15/-0
40<L +0.5% x L/-0

FTTH Outdoor Fiber Optic Pigtail LC APC 4.5mm Double Jackets CCA LSZH Simplex 1FTTH Outdoor Fiber Optic Pigtail LC APC 4.5mm Double Jackets CCA LSZH Simplex 2



Company Information:



OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.



dustfree wrokshop.jpg



Quality contorl.jpg



FAQ:



1. Are you the real factory?

Yes,we are the real factory more than 10 years



2. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.



3. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.



4. What is your delivery time?

Within 24 hours for normal kinds of fiber optic cable;

3~5 days for fiber optic patch cords with 10000 connectors.



5. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.



6. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.



7. Payment

For large orders: T/T, L/C

For small orders: T/T,Western Union and Paypal are acceptable
