LC OM3 Fiber Optic Pre - terminated Pigtail 12F 12 Colors LC UPC OM3 Aqua Bunch Fanout 0.9mm tail LSZH Material

China LC  OM3 Fiber Optic Pre - terminated Pigtail 12F 12 Colors LC UPC OM3 Aqua  Bunch Fanout 0.9mm tail  LSZH Material supplier
LC  OM3 Fiber Optic Pre - terminated Pigtail 12F 12 Colors LC UPC OM3 Aqua  Bunch Fanout 0.9mm tail  LSZH Material supplier LC  OM3 Fiber Optic Pre - terminated Pigtail 12F 12 Colors LC UPC OM3 Aqua  Bunch Fanout 0.9mm tail  LSZH Material supplier

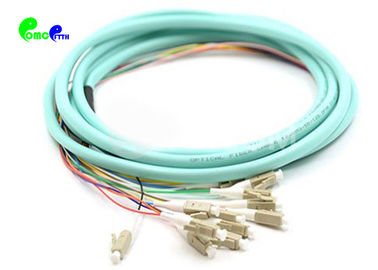

Large Image :  LC OM3 Fiber Optic Pre - terminated Pigtail 12F 12 Colors LC UPC OM3 Aqua Bunch Fanout 0.9mm tail LSZH Material

Product Details:

Place of Origin: Shenzhen,China
Brand Name: OMC or OEM
Certification: ROHS and ISO
Model Number: OM3 Pre - terminated Fanout 0.9mm tail 12F 12 Colors LC UPC

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: Negotiable
Packaging Details: Individual PE bag or customer OEM package
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union,paypal,alipay,credit card
Supply Ability: 20000pcs per week
Contact Now
Detailed Product Description
Product Name: LC OM3 Fiber Optic Pre - Terminated Pigtail 12F 12 Colors LC UPC OM3 Aqua Bunch Fanout 0.9mm Tail LSZH Material Insertion Loss: <0.3dB
Return Loss: UPC>50dB FIber Grade: G651
Connector: LC Wavelength: 850nm
Endface Standard: Telcordia GR-326.Core Package: Individual PE Bag Or Customer OEM Package
High Light:

fiber optic jumpers

,

fiber pigtails patch cords

LC OM3 Fiber Optic Pre - terminated Pigtail 12F 12 Colors LC UPC OM3 Aqua Bunch Fanout 0.9mm tail LSZH Material





12F Pre-terminated 900μm cable fiber pigtail is a multi-fibers pigtail. The unit fiber is 0.6 or 0.9 tight buffer cable. Meets Telcordia GR-326 Core and ROHS requirements.



OMC’s 4-144F Pre-terminated 900um cable fiber pigtail are available in both single and multimode versions with either APC or UPC polish types. Our fiber pigtails come with a partial outer jacket protecting the Tight/Loose buffers from damage. If installed in a high density application, the outer jacket can be easily removed to accommodate a tighter bend radius for the pigtails. Perfect for fiber optic installations within a building or between two buildings.



All of OMC pigtails are factory inspected and tested, with available interferometer data upon request.



Connector’s Standard:



LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.



Optical Specification



Connector LC Jacket OD(mm)

6.35mm

Fiber Mode 50/125μm Jacket Color

Aqua

Polish UPC Wavelength

MM:850nm

Cable Type Multi-fibers Breakout 0.9mm unit cable Jacket Material LSZH/PVC
Insertion loss ≤0.3dB(IEC Grade C) Insertion loss ≤0.12dB(IEC Grade B)
Return loss

PC ≥ 35dB(min)

Interchangeability &Vibration ≤0.2dB
Operating temperature -40~75°C Storage temperature -45~85°C



LC  OM3 Fiber Optic Pre - terminated Pigtail 12F 12 Colors LC UPC OM3 Aqua  Bunch Fanout 0.9mm tail  LSZH Material



Features

  • Low insertion loss, high return loss
  • High environmental stability
  • Available FTTH Drop cable diameters: Φ2.0*5.0mm; Φ2.0*5.2mm
  • For FTTH outdoor patch cord : FTTH Cable Self-Supported member: 1.0; 1.2 mm Steel wire
  • Connector Types: LC, FC, SC
  • Fiber Mode: Single mode G.657A1, G657A2, G657B3
  • Ferrule Interface Type: UPC to UPC, APC to APC, APC to UPC
  • Good exchangeability; Good Durability
  • High temperature stability
  • Compliant to IEC, TIA/EIA, NTT and JIS specifications

Application:



LC  OM3 Fiber Optic Pre - terminated Pigtail 12F 12 Colors LC UPC OM3 Aqua  Bunch Fanout 0.9mm tail  LSZH Material



End-face Quality (MM)



Zone Range (μm) Scratches Defects Reference
A: Core 0 to 65 None None IEC 61300-3-35:2015
B: Cladding 65 to 115 None None
C: Adhesive 115 to 135 None None
D: Contact 135 to 250 None None
E: Rest of ferrule None None



Length tolerance



LC  OM3 Fiber Optic Pre - terminated Pigtail 12F 12 Colors LC UPC OM3 Aqua  Bunch Fanout 0.9mm tail  LSZH Material



Overall Length(L)(m) length of tolerance(cm)
0<L<1 +5/-0
1<L<10 +10/-0
10<L<40 +15/-0
40<L +0.5% x L/-0



Two Important Methods for Fiber Optic Pigtail Splicing



Fiber optic pigtail assemblies are utilized in terminating fiber optic cables via fusion or mechanical splicing.



LC  OM3 Fiber Optic Pre - terminated Pigtail 12F 12 Colors LC UPC OM3 Aqua  Bunch Fanout 0.9mm tail  LSZH Material



Packaging


This easily taken and well-protected fiber optical cable package has been labelled and marked by OMC as default
.Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on
goods Qty . Packing can be customized.



LC  OM3 Fiber Optic Pre - terminated Pigtail 12F 12 Colors LC UPC OM3 Aqua  Bunch Fanout 0.9mm tail  LSZH Material

Application:



The 50/125μm OM3 multimode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It can also save more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed.


This 50/125 OM3 multimode fiber optic cable is ideal for connecting 10G SR, 10G LRM, SFP+ transceivers etc. for 10G/40G/100G Ethernet connections and is the preferred fiber specification for 10G Ethernet connections.



Company Information:



OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.



dustfree wrokshop.jpg


Quality contorl.jpg


LC  OM3 Fiber Optic Pre - terminated Pigtail 12F 12 Colors LC UPC OM3 Aqua  Bunch Fanout 0.9mm tail  LSZH Material

LC  OM3 Fiber Optic Pre - terminated Pigtail 12F 12 Colors LC UPC OM3 Aqua  Bunch Fanout 0.9mm tail  LSZH Material


FAQ:



1. Are you the real factory?

Yes,we are the real factory more than 10 years



2. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.



3. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.



4. What is your delivery time?

Within 24 hours for normal kinds of fiber optic cable;

3~5 days for fiber optic patch cords with 10000 connectors.



5. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.



6. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.



7. Payment

For large orders: T/T, L/C

For small orders: T/T,Western Union and Paypal are acceptable
