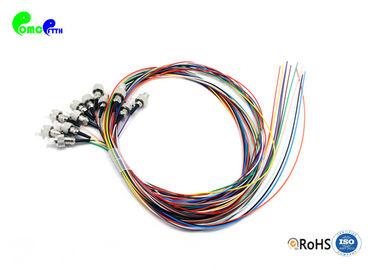

12F 12 Color 0.9mm FC UPC 9/125μm Fiber Optic Pigtail 900μm Set OS2 G657A1 PVC Jacket 1.5M loose buffer Easy to strip
|Place of Origin||China|
|Brand Name||OMC or OEM|
|Model Number||12F 12 Color 0.9mm FC UPC 9 / 125μm|
|Minimum Order Quantity||5pcs|
|Packaging Details||one peace in box, several pieces in cartoon|
|Delivery Time||3-7 work days|
|Payment Terms||L/C, T/T, Western Union, Paypal|
|Supply Ability||200000 per month|
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Products||12F 12 Color 0.9mm FC UPC 9 / 125μm Fiber Optic Pigtail 900μm Set OS2 G657A1 PVC Jacket 1.5M||Polish Type||UPC|
|Cable Type||G652D||Insertion Loss||<0.3dB|
|Return Loss||UPC>50dB||Clean End Face Ferrule||100% Clean,no Dust, No Water,no Scratch|
fiber optic pigtail connector,
fiber pigtails patch cords
12F 12 Color 0.9mm FC UPC 9/125μm Fiber Optic Pigtail 900μm Set OS2 G657A1 PVC Jacket 1.5M
The fiber optic pigtail is normally a tight/Tight buffered fiber cable with a connector pre terminated on one end and exposed fiber on the other. The end is stripped and fusion spliced to a single or multi-fiber trunk. When utilized properly, the fiber optic pigtail allows light signal transmission with minimal return loss and low attenuation. Make sure your network is reinforced with OMC’s fiber pigtails, as ours are manufactured of superior quality materials.
The Pigtail are available in both single and multimode versions with either APC or UPC polish types. Our fiber pigtails come with a partial outer jacket protecting the Tight/Loose buffers from damage. If installed in a high density application, the outer jacket can be easily removed to accommodate a tighter bend radius for the pigtails.
We offer Individual single pigtails, Discounted 6 packs, or 12 Packs. Also 12 fiber or 6 fiber jacketed pigtails .
FC: TIA/EIA, FOCIS3, GR-326.NTT-SC IEC61754-4 and JIS C5973.
|Fiber Mode||9/125μm||Jacket Color||
|Cable Type||12 cores||Jacket Material||PVC/LSZH|
|Insertion loss||≤0.3dB(IEC Grade C)||Buffer||Tight buffer/Loose buffer|
SM UPC ≥ 50dB(min)
|250um Color coded||Available||Operating &Storage temperature||-45~85°C|
1.Fumigation of wood drum, plywooden drum or wooden drum
Premium Performance Fiber Optic Pigtail
Geometric Specification (only for 3D interferometer tested)
|Items||Connector||PC End-face||APC End-face|
|Radius of Curvature||SC/FC/ST||10~25 mm||5~12 mm|
|LC/MU||7~25 mm||5~15 mm|
|Apex Offset||≤50 um|
|Fiber Spherical Height||+/- 100 nm|
|Angular Offset||------||8°± 0.5°|
End-face Quality (SM)
|A: Core||0 to 25||None||None||IEC 61300-3-35:2015|
|B: Cladding||25 to 115||None||None|
|C: Adhesive||115 to 135||None||None|
|D: Contact||135 to 250||None||None|
|E: Rest of ferrule||None||None|
This easily taken and well-protected fiber optical cable package has been labelled and marked by OMC as default
.Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on
goods Qty . Packing can be customized.
OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.
1. Are you the real factory?
Yes,we are the real factory more than 10 years
2. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;
Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.
3. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.
4. What is your delivery time?
Within 24 hours for normal kinds of fiber optic cable;
3~5 days for fiber optic patch cords with 10000 connectors.
5. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.
6. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory price could be offered.
For large orders: T/T, L/C
For small orders: T/T,Western Union and Paypal are acceptable
