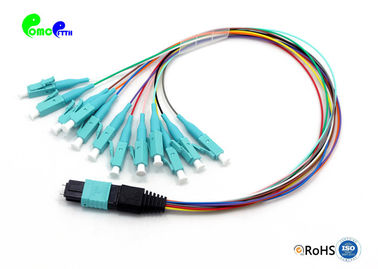

MPO Trunk Cable OM3 12F Fanout 0.9mm MPO Male to LC UPC With Auqe LSZH Fiber Patch Cable Jumper

Place of Origin China
Brand Name OEM or OMC
Certification ROHS and ISO
Model Number OM3 12F 12 Colorful Fanout 0.9mm MPO Male to LC UPC Patch cable
Minimum Order Quantity 1pcs
Price Negotiable
Packaging Details One piece in a plastic bag, several pieces in the carton of 54*39*35cm carton
Delivery Time 3-7days
Payment Terms Western Union, T/T, Paypal
Supply Ability 100000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name MPO Trunk Cable OM3 12F 12 Color Fanout 0.9mm MPO Male To LC UPC With Auqe LSZH Patch Cable Connector Type MPO/MTP To LC
Fiber Count 12 Cores Fiber Mode 850/1300nm
Insertion Loss ≤0.3dB Return Loss ≥30dB
Cable Diameter 0.9mm Operating Temperature -20~70°C
High Light

mpo harness cable

,

mpo patch cable

Leave a Message
Product Description

MPO Trunk Cable OM3 12F Fanout 0.9mm MPO Male to LC UPC With Auqe LSZH Fiber Patch Cable Jumper



12cores MPO Male - LC Fan-out 0.9mm 30cm patch cable are designed for MPO-LC LGX module cassettes are terminated with MPO and LC connector on each end.



This Cables are designed for 40G LR4 PSM, 40GBASE-SR4, 40G QSFP+ PLR4 and high-density data center. It is optimized for 10/40/100G high-density data center applications. This 12 Fiber harness cable is used for connecting (6) SFP+ into a MPO adapter panel and MPO trunk.



Connector’s Standard:



LC: TIA/EIA, FOCIS3, GR-326.NTT-SC IEC61754-4 and JIS C5973.



MPO/MTP: Meets IEC Standard IEC-61754-7; IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant



Packaging & Delivery:


Packaging Details

1. Fumigation of wood drum, plywooden drum or wooden drum
2. carton box
3. customized

Port: Shenzhen



Optical Specifications:



Spec items. Single mode (APC 8-degree polished) Multimode (PC Flat polish)

Insertion loss (MPO)

(IEC 61300-3-34)

Standard loss:≤0.75dB(max), ≤0.35dB(Typical)

Super Low loss:≤0.35dB(max), ≤0.20dB(Typical)

Standard loss:≤0.6dB(max), ≤0.35(Typical)

Super Low loss:≤0.35dB(max) , ≤0.20dB(Typical)

Insertion loss (LC/SC/FC/ST)

(IEC 61300-3-6)

≤0.3dB ≤0.3dB
Return loss(MPO) ≥60dB(8degree polishing) ≥25dB
Return loss(LC/SC/FC/ST) APC≥60dB; UPC≥50dB ≥35dB
Durability <0.3dBtypical change, 200 matings
Interchangeability ≤0.2dB
Tensile strength >70N
Operating Temperature -40 to + 85°C



Features:



· 100% pre-terminated and tested in factory to ensure transfer performance.

· Low insertion loss, high return loss

· MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies

· Economical solution for mass-termination of fiber

· Designed for low loss and standard loss SM and MM applications

· Ruggedized round cable, oval cable and bare ribbon options available

· Color coded housings available to differentiate fiber type, polish type and/or connector grade

· Good in repeatability and exchangeability



Description:



Premium Performance Fiber Optic Cable



Fiber optic cables are used for connections to data center, CATV, fiber test equipment, LAN, telecommunication networks, FTTx, communication rooms, fiber optic communication system, defense combat readiness, etc.



MPO Trunk Cable OM3 12F Fanout 0.9mm MPO Male to LC UPC With Auqe LSZH Fiber Patch Cable Jumper 0


MPO End-Face 3D Interference Index



Item (IEC-61300-3-30) Minimum Maximum
Radius of curvature (mm) ROC-X(ABS) 2000
ROC-Y(ABS) 50mm
Angle Angle-X -0.2° -0.2°
Angle-Y APC 7.85° 8.15°
PC -0.2° -0.2°
Fiber height (nm) 1000nm 3500nm
Max.DH.All Fiber: -300nm 300nm
DH.Adj: -300nm 300nm



LC/SC/FC/ST End-face Quality (MM)



Zone Range (μm) Scratches Defects Reference
A: Core 0 to 65 None None IEC 61300-3-35:2015
B: Cladding 65 to 115 None None
C: Adhesive 115 to 135 None None
D: Contact 135 to 250 None None
E: Rest of ferrule None None



Cable Drawing



MPO Trunk Cable OM3 12F Fanout 0.9mm MPO Male to LC UPC With Auqe LSZH Fiber Patch Cable Jumper 1



Packaging


This easily taken and well-protected fiber patch cable package has been labelled and marked by OMC as default
.Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on goods
Qty . Packing can be customized.



MPO Trunk Cable OM3 12F Fanout 0.9mm MPO Male to LC UPC With Auqe LSZH Fiber Patch Cable Jumper 2



Company Information:



OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.



dustfree wrokshop.jpg





MPO Trunk Cable OM3 12F Fanout 0.9mm MPO Male to LC UPC With Auqe LSZH Fiber Patch Cable Jumper 4

MPO Trunk Cable OM3 12F Fanout 0.9mm MPO Male to LC UPC With Auqe LSZH Fiber Patch Cable Jumper 5

MPO Trunk Cable OM3 12F Fanout 0.9mm MPO Male to LC UPC With Auqe LSZH Fiber Patch Cable Jumper 6

MPO Trunk Cable OM3 12F Fanout 0.9mm MPO Male to LC UPC With Auqe LSZH Fiber Patch Cable Jumper 7




MPO Trunk Cable OM3 12F Fanout 0.9mm MPO Male to LC UPC With Auqe LSZH Fiber Patch Cable Jumper 9

MPO Trunk Cable OM3 12F Fanout 0.9mm MPO Male to LC UPC With Auqe LSZH Fiber Patch Cable Jumper 10
