Fiber Optic Adapter E2000 APC To E2000 APC Simplex Coupler With Flange Plastic

Place of Origin China
Brand Name OEM or OMC
Certification ROHS and ISO
Model Number E2000 APC to E2000 APC Simplex With Full Flange Plastic
Minimum Order Quantity 20 pcs
Price Negotiable
Packaging Details One piece in a plastic bag, several pieces in the carton of 54*39*35cm carton
Delivery Time 3 days after payment confirmed
Supply Ability 1000000 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name Fiber Optic Adapter E2000 APC To E2000 APC Simplex Mating Sleeve With Full Flange Plastic Coupler Body Style Simplex
Polish Type APC Fiber Mode Singlemode
Insertion Loss ≤0.2dB Durability 1000 Times
Mounting Type Full Flanged Alignment Sleeve Material Ceramic
High Light

single mode fiber adapter


fiber optic cable adapter

Leave a Message
Product Description

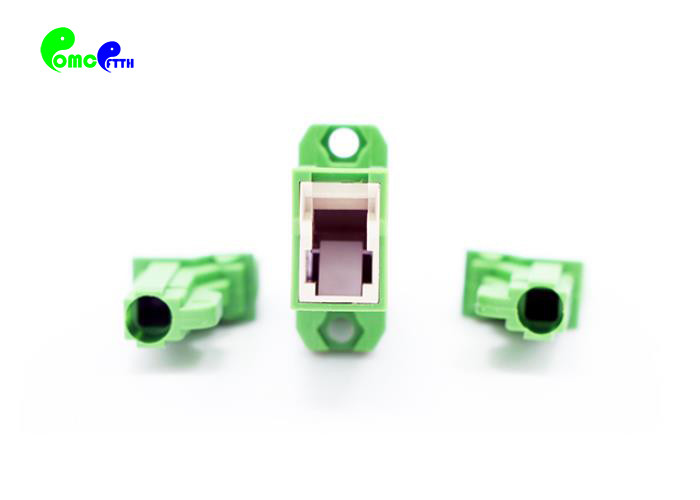

Fiber Optic Adapter E2000 APC To E2000 APC Simplex Mating Sleeve With Full Flange Plastic Coupler



E2000 Adapter are developed to couple and mate two E2000 connector plugs. The E2000 fiber optic adapter features injection-molded PBT housing, rated to the UL94V-01 Flammability Index. Spring-loaded shutters protect against dust and scratching. A high-quality split ceramic sleeve ensures high performance over 1000 mating cycles. The adapter may be ordered with color coded housing and frames.


OMC Adapters design, material and manufacturing process assure long life and high repeatability of optical performances even for different brand connectors mating.




Compliant with European (EN 186270) and International (IEC 61754-15) standards.

Push-pull locking mechanism for easy installation

Precision connection with sleeve

SM and MM connector can be used interchangeably

Low insertion loss, High Return loss

Good interchangeability and reliability

Meet IEC and ROHS standards

High precision of mechanical dimensions Accuracy




Test item (SM-9/125) UPC (SM-9/125) APC MM PC
Insertion Loss ≤0.2dB ≤0.2dB ≤0.2dB
Return Loss ≥50 dB ≥60 dB ≥35 dB
Durability (500 Mating) 0.1dB Max.
Withdrawal force(g/f) 2.0N ~ 5.9N (200gf ~ 600gf)
Storage Temp(℃) -40~+85




Parts name Material Color
Housing body PBT Green
Sleeve High precision Ceramic sleeve Sleeve
Inside hook PBT/PPS Green
Dust Cover PBT Green




Ø Patch panels, ODF and other optical connections.

Ø Optical networks demarcation and monitoring point


Available for Simplex of SM UPC, SM APC, MM OM1 62.5/125, MM OM2 50/125




E2000 APC to E2000 APC Simplex Single Mode Plastic Fiber Optic Adapter




Fiber Optic Adapter Features Small Size but Excellent Performance





Company Information:


OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.


Fiber Optic Adapter E2000 APC To E2000 APC Simplex Coupler With Flange Plastic 3

Fiber Optic Adapter E2000 APC To E2000 APC Simplex Coupler With Flange Plastic 4

Fiber Optic Adapter E2000 APC To E2000 APC Simplex Coupler With Flange Plastic 5




1. Are you the real factory?

Yes,we are the real factory more than 10 years


2. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.


3. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.


4. What is your delivery time?

Within 24 hours for normal kinds of fiber optic cable;

3~5 days for fiber optic patch cords with 10000 connectors.


5. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.


6. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.


7. Payment

For large orders: T/T, L/C

For small orders: T/T,Western Union and Paypal are acceptable
