72 Cores MPO Trunk Cable Flexible Yellow Color For Data Center Solutions LSZH PVC Super low loss

Place of Origin China
Brand Name OMC or OEM
Certification ROHS and ISO
Model Number MPO cable
Minimum Order Quantity 1 pc
Price Negotiable
Packaging Details One piece in a plastic bag, several pieces in the carton.
Delivery Time 3-7days
Payment Terms L/C, T/T, Western Union
Supply Ability 100000 pcs per month
Product Details
Brand OMC Or OEM Model MPO Cable
Color Yellow Item MPO Trunk Cable
Application Data Center Solutions Cores 72
High Light

mpo fanout cable


mpo patch cable

Leave a Message
Product Description

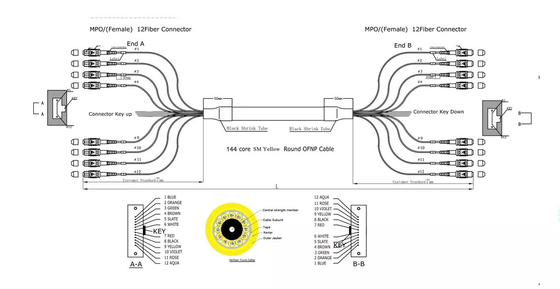

 Manufacture in China SM 9/125 MTP-MTP Trunk Cable 72 Cores for Data Center Solutions

MTP trunk cables connect MTP modules together as a permanent link. The trunk cables are available with 12, 24, 48 and 72 fibers, support speeds up to 10/40/100Gbps data center solutions. They are typically adopted to interconnect cassettes, panels or ruggedized MTP fan-outs, and to facilitate rapid deployment of high-density backbone cabling in data centers and other high fiber environments. Besides, MTP also provides much flexibility and convenience once you have to change the connector style in the patch panels. Instead of changing the connector on the cable trunk, just installing a new cassettes with the new connector style on the cross-connect side of the patch panel.   MTP Fiber Trunk Patch cable are terminated with MTP connector on both end. All of OMC’s MTP Connectors are from US Conec. MTP Trunk cable is a kind of high density cable assemblies which is generally use in three areas. 1, The Data Center application with high dense degree environment 2, The optical fiber to the building 3, The internal connector application in fiber equipment.

Pre-terminated MTP Technology-Polarity

The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.

Please Note: When it is connected with two 40G QSFP+ transceivers, please choose the Type B Cross as polarity; when it is connected with other equipment such as MTP LGX Cassette, you can choose any of the polarities as you need.

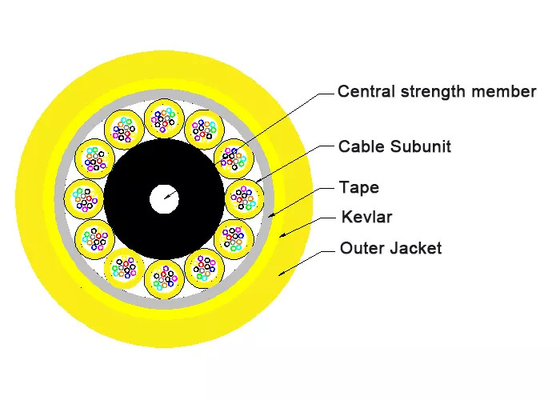

MTPs-loss.png     Features: Low insertion loss, high return loss MT based Multi-fiber Connector, 36-144 fiber connector terminations and assemblies Economical solution for mass-termination of fiber Designed for low loss and standard loss SM and MM applications Ruggedized round cable, oval cable and bare ribbon options available Color coded housings available to differentiate fiber type, polish type and/or connector grade Good in repeatability and exchangeability   MTP 72 cores.jpg

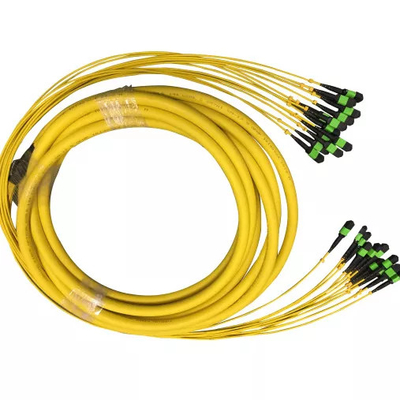

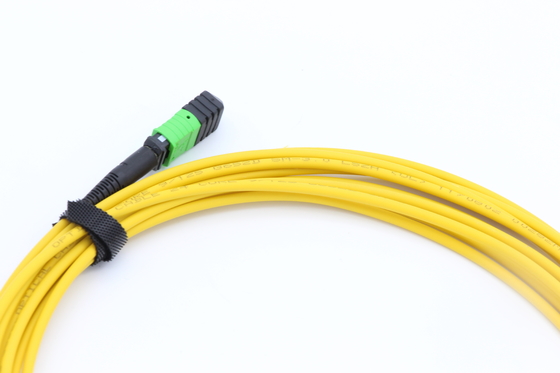

72 Cores MPO Trunk Cable Flexible Yellow Color For Data Center Solutions LSZH PVC Super low loss 2

For more info, pls contact: amanda@omcftth.com
