5MW 10MW VFL FTTH Optical Light Source Teste power meter+VFL OPMV-02

Place of Origin China
Brand Name OMC or OEM
Certification ROHS and ISO
Model Number fiber tool kit
Minimum Order Quantity 1pcs
Price 35usd
Packaging Details Inner PE Bag and carton
Delivery Time 5-8days
Payment Terms L/C, , T/T, Western Union,paypal,alibaba
Supply Ability 10000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Optical Fibers Application Fiber Optical Network
Measurable Range -70~+10dbm Probe Type InGaAs
Wavelength Range 850、980、1300、1310、1490、1550、1625 Time For Auto Off(min) 10 Minutes
High Light

FTTH Optical Light Source Tester

,

5MW Optical Light Source Tester

,

10MW VFL Fiber Power Meter

Leave a Message
Product Description

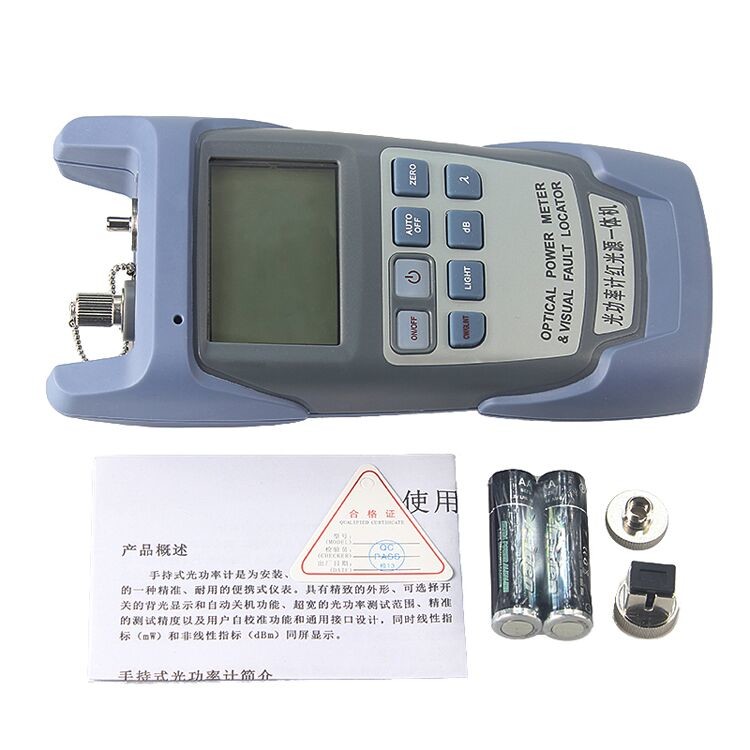

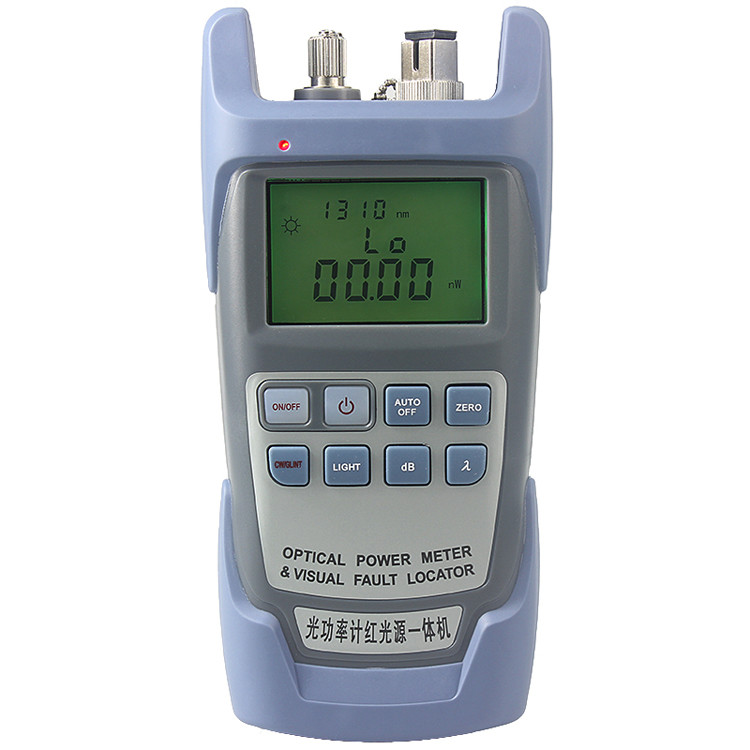

Optical Power Meter&VFL:OPMV-02



Specification:

This portable optical power meter with red light source is an accurate portable instrument with long service time specially designed for the installation, operation and maintenance of fiber-optical network. It features fine appearance, controllable backlight display, automatic power off, supper wide testing range for optical power, high accuracy, self-calibration and universal interface. What’s more, the linearity index(mW) and nonlinear index (dBm) will be displayed in a same screen. The optical power meter can be used alone for saving power.



Feature:

The optical power meter with red light of 10mW or 1mW features open self-calibration which could be operated by the user.

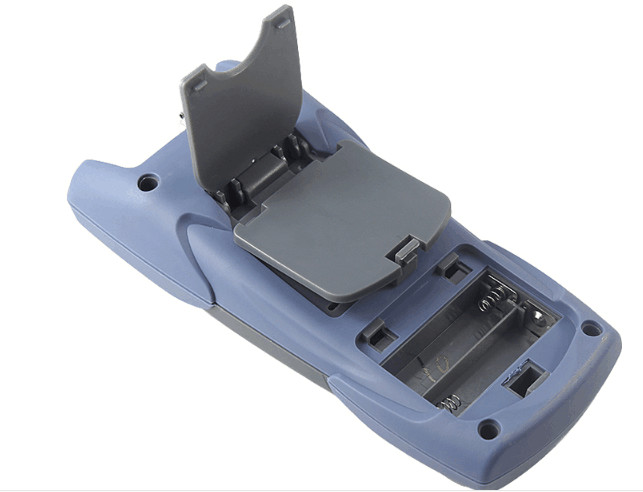

With two AA batteries, the optical power meter can work continuously for 40 hours. It can work continuously if working with a red light source of 10mW, or 42 hours with a red light source of 1mW.

the linearity index(mW) and nonlinear index (dBm) will be displayed on the same screen of the optical power meter.

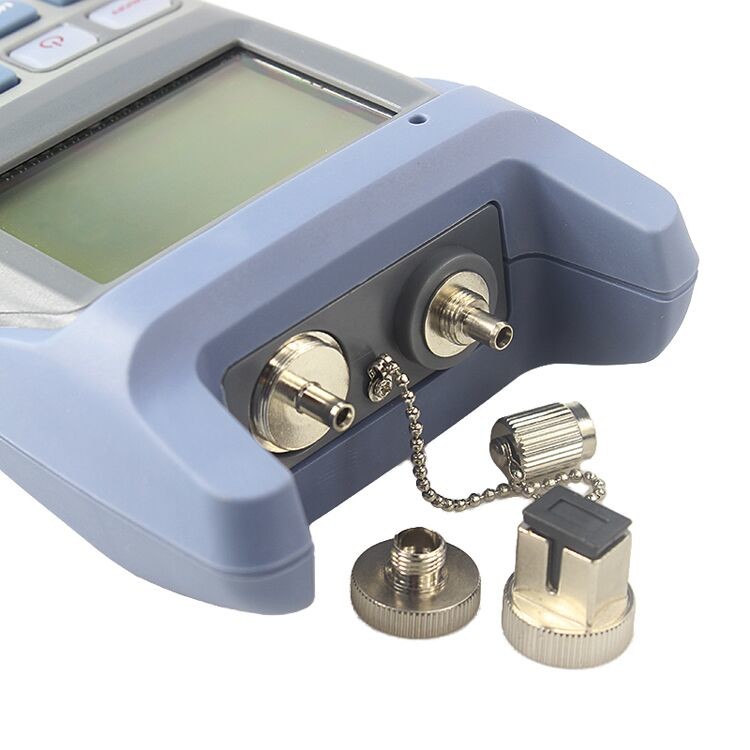

Special universal interface for FC/SC/ST, easy to transformation.

Optional auto off.

Optional backlight display.

Optional steady/flashing red light.



TECHNICAL SPECIFICATIONS

Part No. OPMV-02
Measurable range -70~+10dbm
Probe type InGaAs
Wavelength range 800~1700nm
Standard wavelength(nm) 850,980,1300,1310,1490,1550,1625
Display resolution linear display: 0.1% logarithmic display: 0.01dBm
Working temperature(℃) -10~+60℃
Storage temperature(℃) -25~+70℃
Time for auto off(min) 10 minutes
Continuous working time with batteries No less than 40 hours
Boundary dimension(mm) 180×83×28
Power supply Two chargeable lithium battery or AA alkaline battery
Weight(g) 210g
Suffix of the model &1 &10
Output power of the red light >1mW >10mW
Output wavelength of the red light 650nm
Optical fiber adapter of the red light ST/SC/FC & 2.5mm Universal Adapter





5MW 10MW VFL FTTH Optical Light Source Teste power meter+VFL OPMV-02 05MW 10MW VFL FTTH Optical Light Source Teste power meter+VFL OPMV-02 15MW 10MW VFL FTTH Optical Light Source Teste power meter+VFL OPMV-02 25MW 10MW VFL FTTH Optical Light Source Teste power meter+VFL OPMV-02 3

Product Name
Optical FTTH Tool Kit tool
Place of Origin
Guangdong, China (Mainland)
Application
FTTH FTTB FTTX Network
Fiber Type
Single Fiber Single Mode/Multi mode
Power Saving
Backlight off, Auto shutdown
