Indoor Cable Fiber Optic Tools , FTTH High Precision Fiber Optic Splicing Machine

Place of Origin China
Brand Name OMCFTTH or OEM
Model Number OMCFS-118 Handheld Fiber fusion Splicer
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details One piece in a paper carton+carrying box
Delivery Time 3 days
Payment Terms T/T, Western Union,paypal,alipay,credit card, MoneyGram, L/C
Supply Ability 10000 pcs per month
Product Details
Splicing Loss 0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS) Splicing Type SM, MM, DS, NZDS, BIF,PMF
Splicing Mode Manual, Half Auto, Auto Fiber Alignment Core To Core Alignment By PAS Technology
Applicable Fiber Cable Indoor And 0.25mm,0.9mm Fiber, SC Connector(option) Splicing Time ≤9s
Heat Time ≤30s Cleaved Length 8~16mm
Fiber Image/ Magnification 300/150 Motor Number 4
High Light

fiber optic splicing tools

,

fiber optic hand tools

Leave a Message
Product Description

FTTH High Precision Fusion Splicer With ENGLISH, RUSSIAN,SPANISH,PORTUGUESE,ITALIAN,FRENCH,GERMAN language software



OMCFS-118 is a special design for the installation, operation and maintenance of optical fiber Splice purpose. It’s a high precision, durable, convenient optical instrument. Widely used in the construction, inspection, maintenance of FTTX project.



Specifications

Model OMCFS-118 Fusion Splicer
Splicing Type SM, MM, DS, NZDS,BIF,PMF
Splicing Loss 0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS)
Return Loss >60dB
Splicing Mode Manual, Half Auto, Auto
Fiber Alignment Core to Core Alignment by PAS technology
Applicable Fiber Cable indoor and 0.25mm,0.9mm fiber, SC connector(option)
Splicing Time ≤9s
Heat Time ≤30s
Cleaved Length 8~16mm
Fiber Image/ Magnification 300/200
View Display 5 inch digital high-quality LCD screen
Tension Test Standard 2N (option)
Heat Shrinkable Sleeve 60mm, 40mm and serials heat Shrinkable Sleeve



Battery Capacity

200 cycles splicing and heating, 3 hours charging time

( splicing and charging at same time)

Battery Life Cycling charge 300-500 times, easy to replace battery
Electrodes Life 3000, easy to replace electrodes
Power Source ≤20W
Interface USB Convenient data download and software update
Construction Lighting Built in high brightness, wide range of lights, easy to operate at night



Power supply

Built in lithium battery 5200mAh 11.1V; external adapter,

input: AC100-240V, output: DC13.5V/4.5A



Operating Condition

0-5000m above sea level, Temperature: -10-60℃,

Humidity:0~95%RH (No dew)

Weight 1.98 KG (including battery)
Dimension (LxWxH) 135mm(L)×158mm(W)×155mm(H)

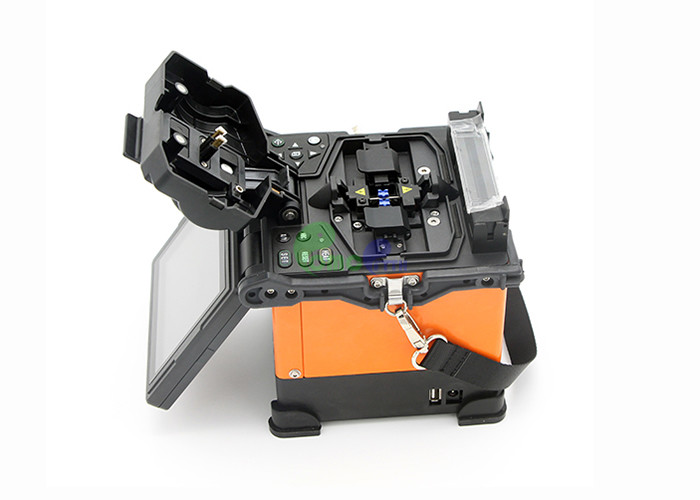

Indoor Cable Fiber Optic Tools , FTTH High Precision Fiber Optic Splicing Machine 0

Available language: English, Russian,Spanish,Portuguese,Italian,French,German



Package:

No Name Qty
1 Fusion Splicer (OMCFS-118) 1 set
2 Fiber Cleaver 1 pc
3 Fiber Stripper 1 pc
4 AC Adatpor 1 pc
5 Li Battery 1 pc
6 Charger 1 pc
7 Spare Electrodes 1 pair
8 Cooling Tray 1 pc
9 Carrying Case 1 pc





SC FIBER FUSION-ON CONNECTOR



Indoor Cable Fiber Optic Tools , FTTH High Precision Fiber Optic Splicing Machine 1



SOC Jig to splice SC connector

Indoor Cable Fiber Optic Tools , FTTH High Precision Fiber Optic Splicing Machine 2


Indoor Cable Fiber Optic Tools , FTTH High Precision Fiber Optic Splicing Machine 3
