Plastic Fiber Optic Tools 5.6'' Touchscreen FL - 480 OTDR Optical Time Domain Reflectometer

Place of Origin China
Brand Name No brand
Certification ROHS and ISO
Model Number FL-480
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details 1 piece in a plastic bag
Delivery Time Within 1 week after payment confirmed
Payment Terms L/C, T/T, Western Union, Credit card
Supply Ability 10000 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Products Plastic Fiber Optic Tools 5.6'' Touchscreen FL - 480 OTDR Optical Time Domain Reflectometer Pulse Width 5ns 20ns 50ns 100ns 500ns
Sampling Point 128,000 Loss Resolution 0.001dB
Distance Range Dead Zone Test, 1.3km, 2.5k Linearity ≤0.05dB/dB
Sampling Resolution Minimum 0.05m Color Grey
High Light

fiber optic splicing tools

,

fiber optic hand tools

Leave a Message
Product Description

Plastic Fiber Optic Tools 5.6'' Touchscreen FL - 480 OTDR Optical Time Domain Reflectometer

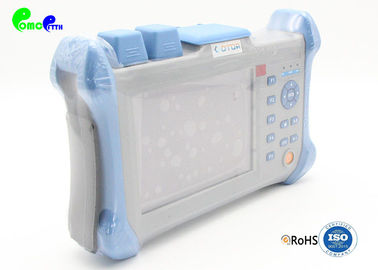

Plastic Fiber Optic Tools 5.6'' Touchscreen FL - 480 OTDR Optical Time Domain Reflectometer 0



Functions:



Automatic Measurement Mode:Operators do not need to choose the test distance and pulse width, the tester will automatically judge the length, and choose suitable dynamic range as well as pulse width to complete the work; The storage of event trace can be saves manually or automatically which will be convenient for data analysis



Multiple Wavelengths Measurement Mode:In order to use different wavelengths to execute the loss calculation in one fiber, we can choose duplex wavelengths test mode from parameter settings, the tester will switch wavelengths automatically



Multiple Trace Analysis:Simultaneous display 4 traces, operators can compare the traces and make analysis of any ones among the traces



Online Test:This will protect the test instruments and equipment



Duplex Operation Mode: Pure operation through touch screen ; or pure operation through the pressing keys



Technical specifications



Pulse Width SM 5ns 20ns 50ns 100ns 500ns 1μs 2μs 5μs 10μs ,
Distance Range SM Dead zone test, 1.3km, 2.5km, 5.0km, 10km, 20km, 40km, 80km, 120km,
Sampling Resolution Minimum 0.05m
Sampling Point 128,000
Linearity ≤0.05dB/dB
Loss Threshold 0.01dB
Loss Resolution 0.001dB
Distance Resolution 0.01m
Distance Accuracy ±(1m+measuring distance×3×10 +sampling resolution)
Data Storage 20000 groups of curve
VFL 10mW,CW/2Hz

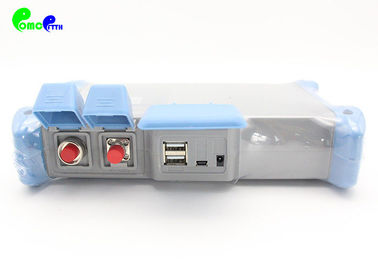

Interface 3 USB ports(Type A×2,Type B×1)
Display 5.6 inch TFT-LCD, Touching screen
Battery 7.4V/4.4Ah lithium battery , support 8 hours continuous working
Working conditions Working Temp:-10℃~+50℃;Storage Temp:-20℃~+70℃;Humitity :≤95%(non-dew)
Dimensions/Weight 253×168×73.5mm / 1.5kg(include battery)

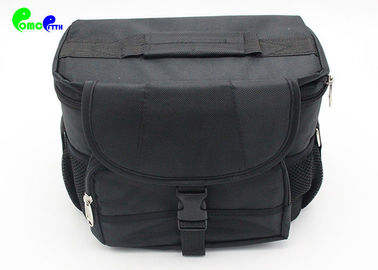

Packing list OTDR tester, CD(management software/user manual);charger, mini USB data Cable; FC-SC connector; cotton swab; softcase




Test curve of typical events as below:



l Precision judgment of fiber faults; splicing posit and connector terminal;

l Precision measurement of test distance and the fiber loss

l Contracted design style ,lively graphical interface, easy operation and easy analysis of various events

l Measure the length of whole fiber; length between two points, as well as the distance, loss and attenuation coefficient etc

l Detailed description of fiber loss distribution curve and the events

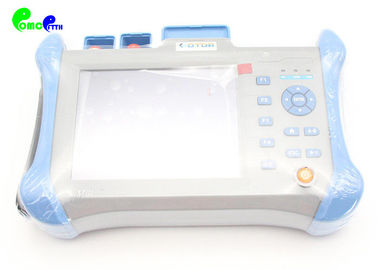

Plastic Fiber Optic Tools 5.6'' Touchscreen FL - 480 OTDR Optical Time Domain Reflectometer 1



Data Analysis:



Save and generator standard trace file(. Sor), more than 20000 groups storage capacity



Print the analysis report and traces which make the acceptance or work easily;
