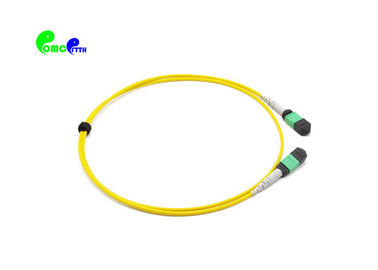

MTP Trunk Cable 12 Fibre 9 / 125μm MTP to MTP Female Single Mode OS2 LSZH Type A Patch Cable
|Place of Origin||China|
|Brand Name||OEM or OMC|
|Certification||ROHS and ISO|
|Model Number||12 Fibre 9 / 125μm MTP to MTP Female Single Mode|
|Minimum Order Quantity||5pcs|
|Packaging Details||One piece in a plastic bag, several pieces in the carton of 54*39*35cm carton|
|Payment Terms||Western Union, T/T, Paypal|
|Supply Ability||1000000pcs per month|
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Products||55dB Return Loss MTP Trunk Cable OS2 LSZH Type A 12 Fibre 9 / 125μm Single Mode||Insertion Loss||≤0.35dB(Low Loss)|
|Return Loss||≥60dB||Cable OD||3.0mm|
|Fiber Type||9/125μm||Material||PVC/LSZH Jacket|
|Certification||IEC-61754-7; JIS C5982; TIA-604-5(FOCIS5); Telcordia GR-1435-CORE||Interchangeability||≤0.2dB|
mtp fanout cable,
mtp breakout cable
MTP to MTP Female OS2 LSZH Type A 12 Fibre Single Mode Trunk Cable Yellow Fiber Optic Patch Cable
12F MTP(Female)- MTP(Female) 3.0mm LSZH Patch cable/trunk cable. MTP Fiber Patch cable/trunk cable is terminated with MTP connector on both ends. MTP Patch cable/trunk cables connect MTP modules together as a permanent link. The Patch cable/trunk cables are available with 12, 24, 48,60,72 ,96,144fibers. Support speeds up to 10/40/100Gbps data center solutions. They are typically adopted to interconnect cassettes, panels or ruggedized MTP fan-outs, and to facilitate rapid deployment of high-density backbone cabling in data centers and other high fiber environments. Besides, MTP also provides much flexibility and convenience once you have to change the connector style in the patch panels. Instead of changing the connector on the cable trunk, just installing a new cassette with the new connector style on the cross-connect side of the patch panel.
The merits of MTP/MPO Patch cable/trunk cable generally include
High quality—MTP/MTP Patch cable/trunk cables are factory pre-terminated, tested and packaged along with the test reports. These reports serve as long-term documentation and quality control.
Decreasing cable volume—MTP/MPO Patch cable/trunk cables have very small diameters, which decrease the cable volume and improve the air-conditioning conditions in data centers.
Time saving—With the special plug and play design, MTP/MPO Patch cable/trunk cables can be incorporated and immediately plugged in. It greatly helps reduce the installation time.
All of OMC’s MTP Connectors are from USconec. MTP Patch cable/trunk cable is a kind of high-density cable assemblies which is generally use in three areas.
1, The Data Center application with high dense degree environment
2, The optical fiber to the building
3, The internal connector application in fiber equipment.
MTP Patch Cord’s Specification
|MPO/MTP’s spec items.||
(UPC Flat polish, APC 8 degree polish)
(PC Flat polish)
|Insertion loss||Standard loss≤0.7dB;Low loss≤0.35dB||Standard loss≤0.5dB;Low loss≤0.35dB|
|Durability||<0.3dBtypical change, 200 matings|
|Operating Temperature||-40 to + 85°C
Low insertion loss, high return loss
MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies
Economical solution for mass-termination of fiber
Designed for low loss and standard loss SM and MM applications
Ruggedized round cable, oval cable and bare ribbon options available
Color coded housings available to differentiate fiber type, polish type and/or connector grade
Good in repeatability and exchangeability
MTP Female to MTP Female OS2 9/125 Single Mode Trunk Cable
High Quality MPO Cable Guarantee
1. High-performance polishing machine, and complemented by precision plates holders designed for MT ferrules.
2. 3D interferometer provides verification of MTP/MPO polishing process, and making all parameters of the polished MT ferrule complies and exceeds industry standards.
3. The flexibility of the tester provides the complete spectrum of optical testing required for complex and high fiber count cable assemblies.
MPO Connector Types
MPO Male with Pins MPO Female without Pins
Two other clearly visible features are the noses and guide grooves (keys) on the top side
(Note: Female connector need to connect with male connector type.)
Packaging & Delivery:
1. Fumigation of wood drum, plywooden drum or wooden drum
2. carton box
2. Active dvice termination
3. Telecommunication networks
5. Local Area Networks(LANs)
6. Data Processing networks
7. Test Equipment
This easily taken and well-protected fiber patch cable package has been labelled and marked by OMC as default .Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on goods Qty . Packing can be customized.
1. self-seal PE bag 2. Bubble bag 3. Paper carton 4 .fumig-free Pallet
OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.
1. Are you the real factory?
Yes,we are the real factory more than 10 years
2. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;
Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.
3. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.
4. What is your delivery time?
Within 24 hours for normal kinds of fiber optic cable;
3~5 days for fiber optic patch cords with 10000 connectors.
5. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.
6. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory price could be offered.
For large orders: T/T, L/C
For small orders: T/T,Western Union and Paypal are acceptable
