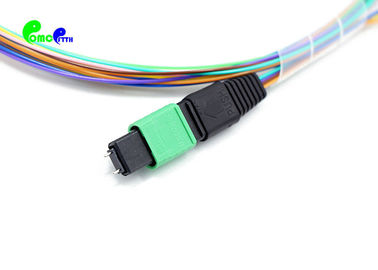

MTP Trunk Cable 9 / 125μm 8F MTP Male - LC UPC 0.9mm Fiber Optic Patch Cable 30cm SM LSZH Elite Type A

Place of Origin China
Brand Name USCONEC
Certification ROHS and ISO
Model Number 9 / 125μm 8F MTP Male - LC UPC 0.9mm
Minimum Order Quantity 1pcs
Price Negotiable
Packaging Details 1 piece in a plastic bag, several pieces in a master bag, then packed in a carton of 54*39*35cm
Delivery Time 3-7days
Payment Terms Western Union, T/T, alipay, paypal,credit card
Supply Ability 100000pcs per month
Product Details
Products MTP Trunk Cable 9 / 125μm 8F MTP Male - LC UPC 0.9mm 30cm SM LSZH Elite Type A Fiber Module G657A1 9/125 BIF
Connector A MTP SM APC 8degree 12F Connector B LC Simplex 0.9 SM UPC
Insertion Loss <0.5dB(standard MTP),<0.35dB(Elite MTP) Return Loss MTP>60dB,SC>50dB
Operating Temperature -40 To + 85°C Application Data Center Of FTTH,FTTB,FTTX Network
High Light

mtp breakout cable

,

mtp patch cable

Leave a Message
Product Description

MTP Trunk Cable 9 / 125μm 8F MTP Male - LC UPC 0.9mm 30cm SM LSZH Elite Type A





MTP-LC fanout trunk cables provide a transition from multi-fiber cables to individual fibers or duplex connectors. Known as MTP breakout cable or MTP fanout cable as well, it has a single MTP connector on one end that breaks out into 6 or 12 connectors, and these connector types can be LC, SC, ST, etc. It’s available in 4, 6, 8, or 12 fiber ribbon configurations with lengths below 1 meter. MTP-SC fanout cable provides a reliable, cost-effective cabling system for migrating from legacy 10G to higher speed 40G/100G Ethernet. The following are the advantages of MTP harness cable:

- Space saving—The active equipment and backbone cable are good for saving space.
- Easy deployment—Factory terminated system saves installation and network reconfiguration time.
- Reliability—High standard components are used in the manufacturing process to guarantee the product quality.

MTP-LC Fiber Patch Cord are terminated with MTP and SC connector on both end. All of OMC’s MTP Connectors are from USconec.



MTP products’ Standard:



- Meets IEC Standard IEC-61754-7; JIS C5982; TIA-604-5(FOCIS5); Telcordia GR-1435-CORE compliant
- Structured cabling per TIA-568-C

Other connectors’ Industrial Standard:


LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.



MPO patch cord’s Specification:



Spec items. Single mode( APC 8 degree polish) Multimode(PC Flat polish)
Insertion loss(MPO) Standard loss≤0.7dB
Low loss≤0.35dB
Standard loss≤0.5dB
Low loss≤0.35dB
Insertion loss(LC) ≤0.3dB ≤0.3dB
Return loss(MPO) ≥60dB ≥25dB
Return loss(LC) UPC≥50dB PC≥35dB
Durability <0.3dBtypical change, 200 matings
Interchangeability ≤0.2dB
Tensile strength >70N
Operating Temperature -40 to + 85°C




MTP Low Insertion Loss :



MTP Trunk Cable 9 / 125μm 8F MTP Male - LC UPC 0.9mm Fiber Optic Patch Cable 30cm SM LSZH Elite Type A 0



MTP Connector Types:



MTP Trunk Cable 9 / 125μm 8F MTP Male - LC UPC 0.9mm Fiber Optic Patch Cable 30cm SM LSZH Elite Type A 1

Two other clearly visible features are the noses and guide grooves (keys) on the top side.
(Note: Female connector need to connect with male connector type.)



Features:

- Low insertion loss, high return loss
- MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies
- Economical solution for mass-termination of fiber
- Designed for low loss and standard loss SM and MM applications
- Ruggedized round cable, oval cable and bare ribbon options available
- Color coded housings available to differentiate fiber type, polish type and/or connector grade
- Good in repeatability and exchangeability



AVAILABILITY:

- Ribbon and bundle cable available;
- Patch cord, pigtail cable assemblies available.
- MT-MT ribbon patch cord is available.
- MPO Loopback available



Cable drawing:



MTP Trunk Cable 9 / 125μm 8F MTP Male - LC UPC 0.9mm Fiber Optic Patch Cable 30cm SM LSZH Elite Type A 2



Application:

MTP Trunk Cable 9 / 125μm 8F MTP Male - LC UPC 0.9mm Fiber Optic Patch Cable 30cm SM LSZH Elite Type A 3



package-patch cord



Company Information:



OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.



dustfree wrokshop.jpg

MTP Trunk Cable 9 / 125μm 8F MTP Male - LC UPC 0.9mm Fiber Optic Patch Cable 30cm SM LSZH Elite Type A 6

MTP Trunk Cable 9 / 125μm 8F MTP Male - LC UPC 0.9mm Fiber Optic Patch Cable 30cm SM LSZH Elite Type A 7

MTP Trunk Cable 9 / 125μm 8F MTP Male - LC UPC 0.9mm Fiber Optic Patch Cable 30cm SM LSZH Elite Type A 8

MTP Trunk Cable 9 / 125μm 8F MTP Male - LC UPC 0.9mm Fiber Optic Patch Cable 30cm SM LSZH Elite Type A 9


MTP Trunk Cable 9 / 125μm 8F MTP Male - LC UPC 0.9mm Fiber Optic Patch Cable 30cm SM LSZH Elite Type A 11

MTP Trunk Cable 9 / 125μm 8F MTP Male - LC UPC 0.9mm Fiber Optic Patch Cable 30cm SM LSZH Elite Type A 12


FAQ:



1. Are you the real factory?

Yes,we are the real factory more than 10 years



2. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.



3. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.



4. What is your delivery time?

Within 24 hours for normal kinds of fiber optic cable;

3~5 days for fiber optic patch cords with 10000 connectors.



5. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.



6. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.



7. Payment

For large orders: T/T, L/C

For small orders: T/T,Western Union and Paypal are acceptable
