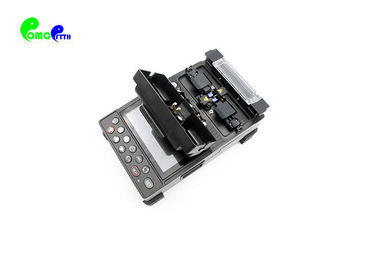

Fibre Tools Small Handheld Fiber Splicing Machine With SOC Jig / 8 Foreign Language Software

Place of Origin China
Brand Name OMC or OEM
Certification ISO, ROHS
Model Number OMCFS-115
Minimum Order Quantity 1 set
Price USD 900/set
Packaging Details 1 set in a black plastic box
Delivery Time 3 days after payment confirmed
Payment Terms L/C, T/T, Western Union, Paypal
Supply Ability 1000 sets per day
Product Details
Products Fibre Tools Small Handheld Fiber Splicing Machine With SOC Jig / 8 Foreign Language Software Return Loss >60dB
Fiber Alignmentt Core To Core Alignment By PAS Technology Applicable Fiber Cable Indoor And 0.25mm,0.9mm Fiber, SC Connector(option)
Splicing Time ≤9s Heat Time ≤30s
Interface USB Convenient Data Download And Software Update Dimension (LxWxH) 200mm(L)×130mm(W)×98mm(H)
High Light

fiber optic splicing tools


fiber optic hand tools

Leave a Message
Product Description

Small Handheld Fusion Splicer Black Color with SOC Jig and 8 Foreign Language Software



OMCFS-115 Handheld Fusion Splicer, with high performance price ratio, is the main product of our Company. With smart appearance, reliable quality, OMCFS-115 is a special design for the installation, operation and maintenance of optical fiber specially design a precision, durable, convenient optical fiber construction instrument. Widely used in the construction, inspection, maintenance of fiber cable.




Model OMCFS-115 Handheld Fusion Splicer
Splicing Type SM, MM, DS, NZDS
Splicing Loss 0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS)
Return Loss >60dB
Splicing Mode Manual, Half Auto, Auto
Fiber Alignment Core to Core Alignment by PAS technology
Applicable Fiber Cable indoor and 0.25mm,0.9mm fiber, SC connector(option)
Splicing Time ≤9s
Heat Time ≤30s
Cleaved Length 8~16mm
Fiber Image/ Magnification 300/150
View Display 4.3 inch digital high quality LCD screen
Tension Test Standard 2N (option)
Heat Shrinkable Sleeve 60mm, 40mm and serials heat Shrinkable Sleeve
Battery Capacity

300 cycles splicing and heating, 3 hours charging time

( splicing and charging at same time)

Battery Life Cycling charge 300-500 times, easy to replace battery
Electrodes Life 3000, easy to replace electrodes
Power Source ≤20W
Interface USB Convenient data download and software update
Construction Lighting Built in high brightness, wide range of lights, easy to operate at night
Power supply Built in lithium battery 5200mAh 11.1V; external adapter, input: AC100-240V, output: DC13.5V/4.5A
Operating Condition

0-5000m above sea level, Temperature: -10-60℃,

Humidity:0~95%RH (No dew)

Weight 1.6KG (including battery), 1.1KG (excluding battery)
Dimension (LxWxH)

































● Used for FTTH and ordinary fiber project ●Core to core alignment by PAS technology

● 8 sec splicing time and 30 sec heat time ●300 X or Y view, 150 X and Y view

● 4.3 inch digital high quality LCD screen, observe X and Y view at same time

● Three in one fixture, splicing single fiber, cable indoor and pigtail

● Built in large capacity lithium battery of 200 times splicing and heating

● Small size and light weight, 1.6KG including battery


Standard Configuration


No Name Qty
1 Fusion Splicer (OMCFS-115) 1 set
2 Fiber Cleaver 1 pc
3 Fiber Stripper 1 pc
4 AC Adaptor 1 pc
5 Li Battery 1 pc
6 Charger 1 pc
7 Spare Electrodes 1 pair
8 Cooling Tray 1 pc
9 Carrying Case 1 pc

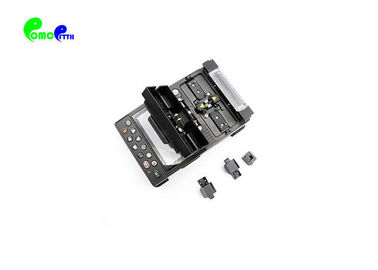

Fibre Tools Small Handheld Fiber Splicing Machine With SOC Jig / 8 Foreign Language Software 0


Company Information:


OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.

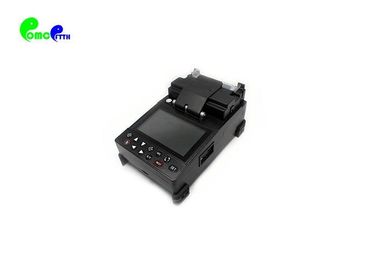

Fibre Tools Small Handheld Fiber Splicing Machine With SOC Jig / 8 Foreign Language Software 2

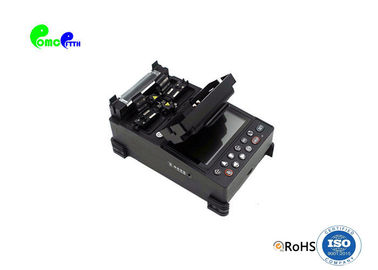

Fibre Tools Small Handheld Fiber Splicing Machine With SOC Jig / 8 Foreign Language Software 3
