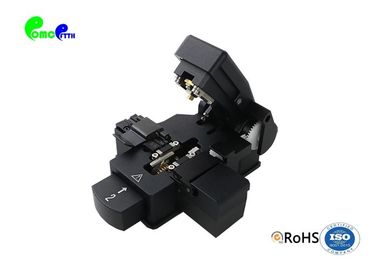

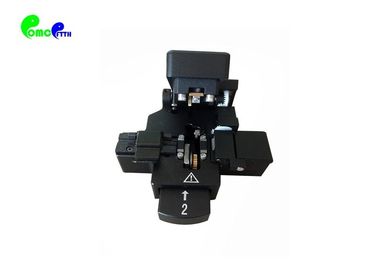

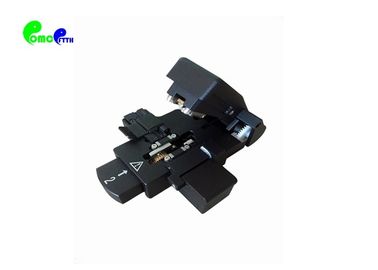

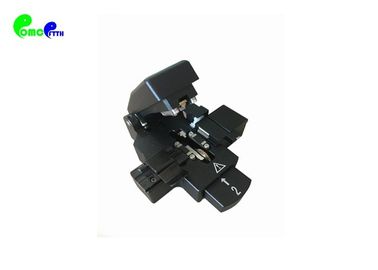

Automatically Rotate Fiber Optic Cleaver Tools Ideal For Various Pre - Polished Connectors

Place of Origin China
Brand Name OMC or OEM
Certification ROHS and ISO
Model Number High Precision Fiber Cleaver OMCFC - 230/231
Minimum Order Quantity 1 piece
Price Negotiable
Packaging Details Plastic hard box
Delivery Time 2-5 working days
Payment Terms T/T, Western Union,paypal,alipay,credit card, MoneyGram, L/C
Supply Ability 1000pcs per month
Product Details
Products Automatically Rotate Fiber Optic Cleaver Tools Ideal For Various Pre - Polished Connectors Fiber Type Single Core Silica Fiber
Outer Coat Diameter φ0.25&φ0.9 Cleaved Length 10~16mm(φ0.25) 10~16(φ0.9)
Dimension 93mm(W)×102mm(D) ×50mm(H) Weight 350g
Adaptive Value Of Cutting Angle ≤0.5° Blade Life 78000
High Light

fiber optic splicing tools

,

fiber optic hand tools

Leave a Message
Product Description

High Precision Fiber Cleaver OMCFC - 230 /231, Ideal for standard fibers and various pre-polished connectors





Fiber optic cleaver is used to cut the fiberglass for fusion splicing, also ideal for preparing fiber for pre-polished connectors to make a good end face, and it is very important in the fiber splicing process, usually it works together with the fusion splicer to meet the end needs.



Specifications:



Products FIBER CLEAVER OMCFC - 230/231
Fiber Type Single core silica fiber
Outer coat diameter φ0.25&φ0.9
Bare fiber diameter 125μm
Cleaved length 10~16mm(φ0.25) 10~16(φ0.9)
Dimension 93mm(W)×102mm(D) ×50mm(H)
Weight 350g
Adaptive value of cutting angle ≤0.5°
Blade life 78000




Features:



● The first step in the real sense of the precision cutting knife.
● The cutting angle is 0.5 degrees, the performance index can reach or exceed the level of the same cutting knife.
● In the process of cutting the blade automatically rotate, can keep the blade is always sharp.
● The cutting efficiency is high, and the requirements for the operator is lower without manual labor.
● Blade can be automatically rotated using 26 point of view, the service life of the blade is more than 78000 times, is two times more than ordinary cutting knife service life.
● Blade replacement, adjustment is convenient and fast, the operation is significantly better than the international same cutting knife.
● Keep only when the lock cover, do not take up space, without a fixed blade.



Replacement Blade /Cutting Wheel



Automatically Rotate Fiber Optic Cleaver Tools Ideal For Various Pre - Polished Connectors 0



Auto Gear



Automatically Rotate Fiber Optic Cleaver Tools Ideal For Various Pre - Polished Connectors 1



Company Information:



OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.




Automatically Rotate Fiber Optic Cleaver Tools Ideal For Various Pre - Polished Connectors 3

Automatically Rotate Fiber Optic Cleaver Tools Ideal For Various Pre - Polished Connectors 4
