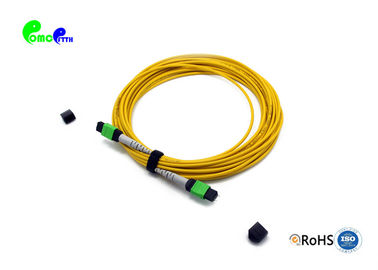

12F Elite MTP APC Trunk Cable MTP - MTP OS2 G657A1 9 / 125μm 3.0mm Yellow LSZH 20M For HD Data Center
|Place of Origin||China|
|Certification||ROHS and ISO|
|Model Number||12F Elite MTP APC Trunk Cable|
|Minimum Order Quantity||10pcs|
|Packaging Details||individual PE bag or customer demand package|
|Payment Terms||D/P, T/T, Western Union, L/C,Credit Card|
|Supply Ability||50000pcs per month|
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Product||12F Elite MTP Trunk Cable MTP - MTP OS2 G657A1 9 / 125μm 3.0mm Yellow LSZH 20M For HD Data Center||Fiber Mode||OS2 9/125μm SM|
|Connector||MTP Male To MTP Male||Polish Type||APC To APC|
|Insertion Loss||0.35dB Max||Return Loss||≥60dB|
|Jacket OD||3.0mm||Fiber Count||12|
mtp fanout cable,
mtp breakout cable
12F Elite MTP Trunk Cable MTP - MTP OS2 G657A1 9 / 125μm 3.0mm Yellow LSZH 20M For HD Data Center
MTP Fiber Patch Cord are terminated with MTP connector on both end. All of OMC’s MTP Connectors are from US Conec. MTP patch cord is a kind of high density cable assemblies which is generally use in three areas.
1, The Data Center application with high dense degree environment
2, The optical fiber to the building
3, The internal connector application in fiber equipment
MTP products’ Standard:
- Meets IEC Standard IEC-61754-7; JIS C5982; TIA-604-5(FOCIS5); Telcordia GR-1435-CORE compliant
- Structured cabling per TIA-568-C
|Connector A||MTP male||Connector B||MTP male|
|Fiber Mode||OS2 9/125μm SM||Wavelength||1310/1550nm|
|Polish Type||APC to APC||Minimum Bend Radius||10mm|
|Insertion Loss||0.35dB Max (0.15dB Typ.)||Return Loss||≥60dB|
|Attenuation at 1310nm||≤0.32dB/km||Attenuation at 1550nm||≤0.18dB/km|
|Jacket OD||3.0mm||Cable Jacket||LSZH/Plenum (OFNP)|
|Installation Tensile Load||100 N||Long-Term Tensile Load||50 N|
|Operating Temperature||-10°C to +70°C||Polarity||Type B|
Low insertion loss, high return loss
MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies
Economical solution for mass-termination of fiber
Designed for low loss and standard loss SM and MM applications
Ruggedized round cable, oval cable and bare ribbon options available
Color coded housings available to differentiate fiber type, polish type and/or connector grade
Good in repeatability and exchangeability
Test Assured Program
3D interferometer provides verification of MTP/MPO polishing process, and making all parameters of the polished MT ferrule complies and exceeds industry standards. Clean optical connectors are paramount in providing a reliable, high-performance fiber optic infrastructure.
This easily taken and well-protected fiber patch cable package has been labelled and marked by OMC as default
.Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on goods
Qty . Packing can be customized.
OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.
1. Are you the real factory?
Yes,we are the real factory more than 10 years
2. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;
Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.
3. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.
4. What is your delivery time?
Within 24 hours for normal kinds of fiber optic cable;
3~5 days for fiber optic patch cords with 10000 connectors.
5. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.
6. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory price could be offered.
For large orders: T/T, L/C
For small orders: T/T,Western Union and Paypal are acceptable
