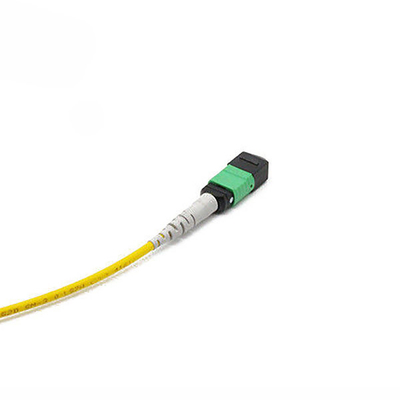

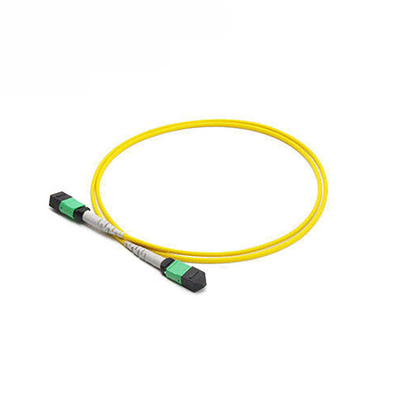

MTP Trunk Cable 12 Fibre 9 / 125μm MTP to MTP Female OS2 LSZH Type B SM Yellow Patch Cable
Place of Origin | China |
---|---|
Brand Name | OMC or OEM |
Certification | RoHS and ISO |
Model Number | 12 Fibre SM MTP to MTP Female Trunk cable |
Minimum Order Quantity | 2pcs |
Price | Negotiable |
Packaging Details | Individual PE bag or customer requested |
Delivery Time | 2-4 working days |
Payment Terms | L/C, T/T, Western Union, MoneyGram |
Supply Ability | 2000000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProducts | 12 Fibre SM MTP To MTP Female Trunk Cable | Fiber Mode | OS2 9/125μm SM |
---|---|---|---|
Polish Type | APC To APC | Insertion Loss | ≤0.7dB |
Return Loss | ≥60dB | Wavelength | 1310/1550nm |
Jacket OD | 3.0mm | Cable Jacket | LSZH |
Storage Temperature | -40°C To +85°C | Color | Yellow |
High Light | mtp fanout cable,mtp patch cable |
MTP Trunk Cable 12 Fibre 9 / 125μm MTP to MTP Female OS2 LSZH Type B SM Yellow Patch Cable
MTP Fiber Patch Cord are terminated with MTP connector on both end. All of OMC’s MTP Connectors are from Senko,Nissin,Sumitomo etc. MTP patch cord is a kind of high density cable assemblies which is generally use in three areas.
The Data Center application with high dense degree environment
The optical fiber to the building
The internal connector application in fiber equipment.
MTP products’ Standard:
- Meets IEC Standard IEC-61754-7; JIS C5982; TIA-604-5(FOCIS5); Telcordia GR-1435-CORE compliant
- Structured cabling per TIA-568-C
- Parallel Optics
- Optical Internetworking Forum (OIF) Compliant
- InfiniBand Compliant
- InfiniBand
- 10G Fiber Channel Compliant
- 40G and 100G IEEE 802.3
- QSFP
MTP patch cord’s Specification:
MPO/MTP’s spec items. |
Single mode (UPC Flat polish, APC 8 degree polish) |
Multimode (PC Flat polish) |
Insertion loss | Standard loss≤0.7dB;Low loss≤0.35dB | Standard loss≤0.5dB;Low loss≤0.35dB |
Return loss | ≥55dB | ≥35dB |
Durability | <0.3dBtypical change, 200 matings | |
Interchangeability | ≤0.2dB | |
Tensile strength | >70N | |
Operating Temperature | -40 to + 85°C |
Features:
- Low insertion loss, high return loss
- MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies
- Economical solution for mass-termination of fiber
- Designed for low loss and standard loss SM and MM applications
- Ruggedized round cable, oval cable and bare ribbon options available
- Color coded housings available to differentiate fiber type, polish type and/or connector grade
- Good in repeatability and exchangeability
Description:

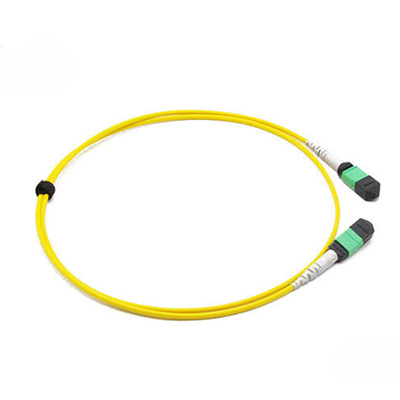

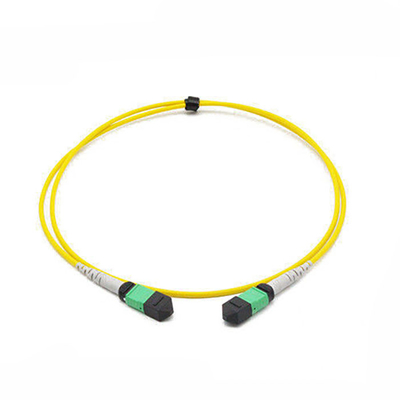

MTP Female to MTP Female OS2 9/125 Single Mode Trunk Cable
High Quality MPO Cable Guarantee
1. High-performance polishing machine, and complemented by precision plates holders designed for MT ferrules.
2. 3D interferometer provides verification of MTP/MPO polishing process, and making all parameters of the polished MT ferrule complies and exceeds industry standards.
3. The flexibility of the tester provides the complete spectrum of optical testing required for complex and high fiber count cable assemblies.
Application:
1. CATV
2. Active dvice termination
3. Telecommunication networks
4. Metro
5. Local Area Networks(LANs)
6. Data Processing networks
7. Test Equipment
Packaging
This easily taken and well-protected fiber patch cable package has been labelled and marked by OMC as default .Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on goods Qty . Packing can be customized.
1. self-seal PE bag 2. Bubble bag 3. Paper carton 4 .fumig-free Pallet
Company Information:
OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.
FAQ:
1. Are you the real factory?
Yes,we are the real factory more than 10 years
2. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;
Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.
3. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.
4. What is your delivery time?
Within 24 hours for normal kinds of fiber optic cable;
3~5 days for fiber optic patch cords with 10000 connectors.
5. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.
6. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory price could be offered.
7. Payment
For large orders: T/T, L/C
For small orders: T/T,Western Union and Paypal are acceptable
