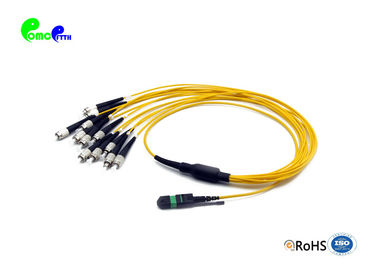

Harness Elite MTP - FC Fanout 2.0mm Trunk Cable 12F 9 / 125μm OS2 G657A2 Yellow LSZH Jacket With Push / pull tab MTP

China Harness Elite MTP - FC Fanout 2.0mm Trunk Cable 12F 9 / 125μm OS2 G657A2 Yellow LSZH Jacket With Push / pull tab MTP supplier
Harness Elite MTP - FC Fanout 2.0mm Trunk Cable 12F 9 / 125μm OS2 G657A2 Yellow LSZH Jacket With Push / pull tab MTP supplier Harness Elite MTP - FC Fanout 2.0mm Trunk Cable 12F 9 / 125μm OS2 G657A2 Yellow LSZH Jacket With Push / pull tab MTP supplier Harness Elite MTP - FC Fanout 2.0mm Trunk Cable 12F 9 / 125μm OS2 G657A2 Yellow LSZH Jacket With Push / pull tab MTP supplier Harness Elite MTP - FC Fanout 2.0mm Trunk Cable 12F 9 / 125μm OS2 G657A2 Yellow LSZH Jacket With Push / pull tab MTP supplier

Large Image :  Harness Elite MTP - FC Fanout 2.0mm Trunk Cable 12F 9 / 125μm OS2 G657A2 Yellow LSZH Jacket With Push / pull tab MTP

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Usconec and OMC
Certification: ROHS and ISO
Model Number: Fanout 2.0mm 12F 9 / 125μm MTP Female to FC UPC

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: individual PE bag or customer demand package
Delivery Time: 3-8 working days
Payment Terms: T/T, Western Union,paypal,alipay,credit card
Supply Ability: 10000pcs per week
Contact Now
Detailed Product Description
Product Name: MTP Trunk Cable Fanout 2.0mm 12F 9 / 125μm MTP Female To FC UPC With Push / Pull Tab OS2 G657A2 Yellow LSZH Jacket IL: MTP<0.75dB ,FC<0.3dB
RL: MTP>60dB,FC>50dB Fiber Type: 9 / 125μm
3D Interference: 100% Tested And Passed Highlight: Push/pull Tab For MTP
OEM: Available Package: Individual PE Bag Or OEM

Harness Elite MTP - FC Fanout 2.0mm Trunk Cable 12F 9 / 125μm OS2 G657A2 Yellow LSZH Jacket With Push / pull tab MTP



MTP- FC Straight harness Cables are terminated with MTP and FC connector on both ends. The 12pcs(12 FC Simplex) fanout cables are optimized for 40G QSFP+ PLR4 to 10G SFP+ LR optics direct connection and high-density data center applications. have same length . It's specifically designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.


12F MTP - FC Straight harness Cables designed for 40G LR4 PSM, 40GBASE-SR4, 40G QSFP+ PLR4 and highdensity data center. It is optimized for 10/40/100G high-density data center applications.



MTP products’ Standard:

  • Meets IEC Standard IEC-61754-7; JIS C5982; TIA-604-5(FOCIS5); Telcordia GR-1435-CORE compliant
  • Structured cabling per TIA-568-C

Other connectors’ Industrial Standard:

  • FC: EIA /TIA-604-04, FOCIS4, NTT-FC, GR-326. IEC61754-13 and JIS C5973

MTP Female -FC UPC 12F SM harness patch cord’s Specification:



Connector A MTP Female Connector B FC UPC Simplex
Fiber Mode OS2 SMF 9/125μm Wavelength 1310/1550nm
Insertion Loss MTP≤0.75dB, FC≤0.3dB Return Loss MTP≥60dB, LC≥50dB
Attenuation at 1310nm ≤0.32dB/km Attenuation at 1550nm ≤0.18dB/km
Jacket OD 3.0mm Fan-Out Diameter 2.0mm
Installation Tensile Load 100 N Long-Term Tensile Load 50 N
Cable Jacket LSZH Fiber Count 12 Fibers
Operating Temperature -10°C to +70°C Storage Temperature -40°C to +85°C



Features:

  • Low insertion loss, high return loss
  • MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies
  • Economical solution for mass-termination of fiber
  • Designed for low loss and standard loss SM and MM applications
  • Ruggedized round cable, oval cable and bare ribbon options available
  • Color coded housings available to differentiate fiber type, polish type and/or connector grade
  • Good in repeatability and exchangeability

AVAILABILITY:

  • 4,8,12,16,24 cores
  • Fanout connector can be SC,FC,LC,ST,E2000 etd
  • LC can be simplex,duplex,uniboot, unibody

MTP Connector Types



Harness Elite MTP - FC Fanout 2.0mm Trunk Cable 12F 9 / 125μm OS2 G657A2 Yellow LSZH Jacket With Push / pull tab MTP Harness Elite MTP - FC Fanout 2.0mm Trunk Cable 12F 9 / 125μm OS2 G657A2 Yellow LSZH Jacket With Push / pull tab MTP
MTP Male with Pins MTP Female without Pins

Two other clearly visible features are the noses and guide grooves (keys) on the top side.

(Note: Female connector need to connect with male connector type.



MTP Interference index



Connector type Testing items Min Max
MTP PC ROC_X(abs)(mm) 500
ROC_Y(abs)(mm) 50
Angle_X(deg) -0.2 0.2
Angle_Y(deg) -0.2 0.2
Max.DH.All Fiber(nm) -600 600
Max.DH.Ave(nm) -300 300
Max.DH.Adj(nm) -300 300
Max. Core Dip(nm) -300 300
Fiber height(nm) -300 300
ROC_X(abs)(mm) 1000 3000
MTP APC ROC_X(abs)(mm) 500
ROC_Y(abs)(mm) 50
Angle_X(deg) -0.2 0.2
Angle_Y(deg) 7.8 8.2
Max.DH.All Fiber(nm) -600 600
Max.DH.Ave(nm) -300 300
Max.DH.Adj(nm) -300 300
Fiberheight(nm)

Harness Elite MTP - FC Fanout 2.0mm Trunk Cable 12F 9 / 125μm OS2 G657A2 Yellow LSZH Jacket With Push / pull tab MTP

Harness Elite MTP - FC Fanout 2.0mm Trunk Cable 12F 9 / 125μm OS2 G657A2 Yellow LSZH Jacket With Push / pull tab MTP



Cable Drawing



Harness Elite MTP - FC Fanout 2.0mm Trunk Cable 12F 9 / 125μm OS2 G657A2 Yellow LSZH Jacket With Push / pull tab MTP



Application:



Harness Elite MTP - FC Fanout 2.0mm Trunk Cable 12F 9 / 125μm OS2 G657A2 Yellow LSZH Jacket With Push / pull tab MTP



Packaging


This easily taken and well-protected fiber patch cable package has been labelled and marked by OMC as default
standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on goods Qty .
Packing can be customized.



Harness Elite MTP - FC Fanout 2.0mm Trunk Cable 12F 9 / 125μm OS2 G657A2 Yellow LSZH Jacket With Push / pull tab MTP



High Quality MTP Cable Guarantee



1. High-performance polishing machine, and complemented by precision plates holders designed for MT ferrules.
2, 3D interferometer provides verification of MTP polishing process, and making all parameters of the polished MT ferrule complies and exceeds industry standards.
3. The flexibility of the tester provides the complete spectrum of optical testing required for complex and high fiber count cable assemblies.



Harness Elite MTP - FC Fanout 2.0mm Trunk Cable 12F 9 / 125μm OS2 G657A2 Yellow LSZH Jacket With Push / pull tab MTP



Company Information:



OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.



dustfree wrokshop.jpg

Harness Elite MTP - FC Fanout 2.0mm Trunk Cable 12F 9 / 125μm OS2 G657A2 Yellow LSZH Jacket With Push / pull tab MTP

Harness Elite MTP - FC Fanout 2.0mm Trunk Cable 12F 9 / 125μm OS2 G657A2 Yellow LSZH Jacket With Push / pull tab MTP

Harness Elite MTP - FC Fanout 2.0mm Trunk Cable 12F 9 / 125μm OS2 G657A2 Yellow LSZH Jacket With Push / pull tab MTP

Harness Elite MTP - FC Fanout 2.0mm Trunk Cable 12F 9 / 125μm OS2 G657A2 Yellow LSZH Jacket With Push / pull tab MTP


Harness Elite MTP - FC Fanout 2.0mm Trunk Cable 12F 9 / 125μm OS2 G657A2 Yellow LSZH Jacket With Push / pull tab MTP

Harness Elite MTP - FC Fanout 2.0mm Trunk Cable 12F 9 / 125μm OS2 G657A2 Yellow LSZH Jacket With Push / pull tab MTP


FAQ:



1. Are you the real factory?

Yes,we are the real factory more than 10 years



2. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.



3. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.



4. What is your delivery time?

Within 24 hours for normal kinds of fiber optic cable;

3~5 days for fiber optic patch cords with 10000 connectors.



5. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.



6. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.



7. Payment

For large orders: T/T, L/C

For small orders: T/T,Western Union and Paypal are acceptable
