Duplex outdoor CPRI fiber patch cable for FTTA project Insertion Loss<0.3dB

Place of Origin China
Brand Name OMC or OEM
Certification ROHS and ISO
Model Number Duplex outdoor CPRI fiber patch cable for FTTA project
Minimum Order Quantity 20
Price Negotiation
Packaging Details Inner PE Bag and carton
Delivery Time 5 - 8 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 1000/pcs/month
Product Details
Fiber Count 2 Cable Dimension Mm 7.0
Cable Jacket Material Dca Level LSZH Connector Type LC,SC,FC,ST,E2000
Insertion Loss <0.3dB Return Loss SM>50dB,APC>60dB,MM>35dB
Repeatability <=0.1 Interchangeability <=0.2dB
Leave a Message
Product Description

Duplex outdoor CPRI fiber patch cable for FTTA project

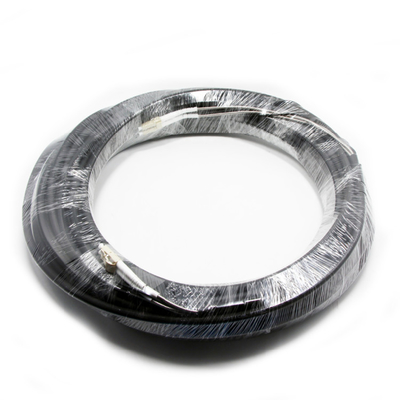

Duplex outdoor CPRI fiber patch cable for FTTA project Insertion Loss<0.3dB 0



CPRI fiber patch cable for the new generation wireless base stations (WCDMA/TD-SCDMA/WiMax/GSM). Such products can be meet the FTTA(fiber to the top of the tower) program requirements for outdoor environment conditions and adverse weather conditions. Especially in the 3G, 4G, and WiMax base stations and fiber-optic distributed zoom technology, CPRI fiber patch cable are rapidly becoming the standard connector interface.



Cable Parameters-

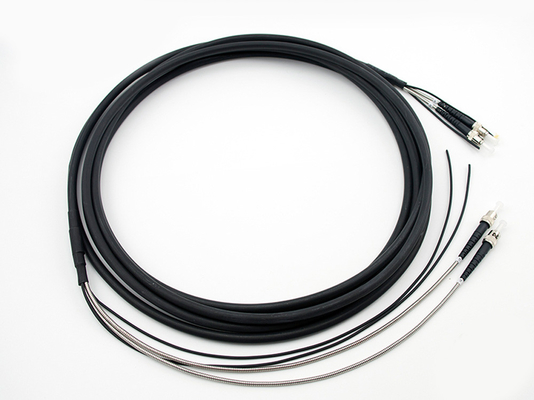

Duplex outdoor CPRI fiber patch cable for FTTA project Insertion Loss<0.3dB 1



Fiber Count

Cable Dimension

mm

Cable Jacket Material



Tensile (N)

Crush

(N/100mm)

Min. Bend Radius

(mm)

Range of Temperature



      Long Term Short Term Long Term Short Term Dynamic Static
2 7.0

Dca level LSZH

black

200 400 300 1000 20D 10D -20-+70

Note:

1. All the values in the table, which are for reference only, are subject to change without notice;

2. The cable dimension and weight are subject to the simplex cable of 2.0/1.6 outer diameter;

3. D is outer diameter of the round cable;



Products drawing



Duplex outdoor CPRI fiber patch cable for FTTA project Insertion Loss<0.3dB 2



Features





· Open bulkhead for easy access to SFP

· Positive mechanical feedback to operator when fully mated

· One-hand mating

· Plug has tolerance free design, fully free floating on Z-axis

· No Cable buckling during or after installation

· Cost effective metal die cast bulkhead

· Field installable version available

· Water proof, dust proof and corrosion resistant

· Good mechanical and environmental characteristics;

· Flame retardant characteristics meet the requirements of relevant standards;

· The mechanical characteristics of jacket meet the requirements of relevant standards;

· Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data transmission;

· Meet various requirements of market and clients

· Bulkhead cutout allows for removal of transceiver through the bulkhead (no need to open PRH for transceiver replacement)

· Robust bayonet locking for easy, fast, and secure mating



Specification





Specification

ITEM

PARAMETER
Connector type LC,SC,FC,ST,E2000
Insertion Loss <0.3dB
Return Loss SM>50dB,APC>60dB,MM>35dB
Repeatability <=0.1
Interchangeability <=0.2dB
Durability <=0.2dB
Fiber Length 1m, 2m….. any length optional.
Length and tolerance 10cm
Operating Temperature -20C ~ +85C
Storage Temperature -20C ~ +85C






Application





· 3G,4G,5G base station cabling

· Aerospace & Defence

· Equipment diagnosis

· FTTA ,FTTP, FTTX,WIMAX

· BBU, RRU, RRH, LTE
