8C Military tactical Armored Fiber Patch Cord TPU Jacket Insertion Loss≤0.3dB

  • 8C Military tactical Armored Fiber Patch Cord TPU Jacket Insertion Loss≤0.3dB
  • 8C Military tactical Armored Fiber Patch Cord TPU Jacket Insertion Loss≤0.3dB
  • 8C Military tactical Armored Fiber Patch Cord TPU Jacket Insertion Loss≤0.3dB
Place of Origin China
Brand Name OMC or OEM
Certification ROHS and ISO
Model Number 8C Military tactical Armored Fiber Patch Cord TPU Jacket
Minimum Order Quantity 20
Price Negotiation
Packaging Details Inner PE Bag and carton
Delivery Time 5 - 8 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 1000/pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Fiber Count SX DX 4C 6C 8C 12C 24C Connector LC /SC /FC /ST /Waterproof Connectors,etc
Insertion Loss ≤0.3dB Return Loss SM/UPC≥55dB, SM/APC≥60dB, MM≥35dB
Mechanical life 500cycles Working temperature -40°C~+85°C
Leave a Message
Product Description

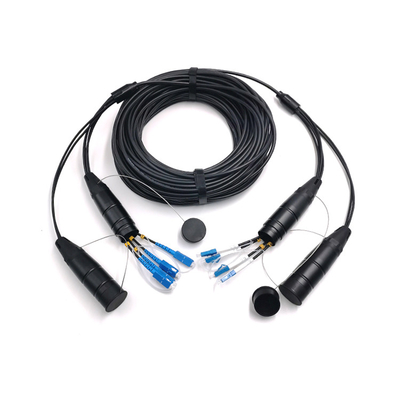

Armored Fiber Patch Cord TPU Jacket

8C Military tactical Armored Fiber Patch Cord TPU Jacket Insertion Loss≤0.3dB 0

8C Military tactical Armored Fiber Patch Cord TPU Jacket Insertion Loss≤0.3dB 1



Armored fiber patch cords can be laid in all kinds of harsh environments. It has stainless steel tube to protect optical fibers and provides better security for the whole system.



Features:



Flexible stainless steel tube to protect optical fibers from damage



Good performance of torsion, tensile strength, pressure, and anti-rodent



Various connectors are available complying with international standard, such as



FC/SC/ST/LC, etc



Applications:



Fiber optic sensing / Telecommunication networks



CATV / LAN & WAN / Test Equipment / National defense



FTTX, FTTH(Fiber to the Home) / Oil & Ga,Broadcast & Industrial



Performance:

Item Data
Fiber Count SX DX 4C 6C 8C 12C 24C
Connector LC /SC /FC /ST /Waterproof connectors,etc
Insertion Loss ≤0.3dB
Return Loss SM/UPC≥55dB, SM/APC≥60dB, MM≥35dB
Mechanical life 500cycles
Working temperature -40°C~+85°C
Storage temperature -40°C~+85°C





l Cable Structure:

8C Military tactical Armored Fiber Patch Cord TPU Jacket Insertion Loss≤0.3dB 2

  • 8C: 8×Tight Buffer(0.6mm)+Spiral Steel Tube+Kevlar+TPU Jacket OD=5.0mm



Cable Count OD (mm) Weight Tensile strength General attenuation Minimal Bending radius Storage temperature
      Short term Long term Singlemode Multimode
8 5.0±0.2 37kg 1200N 600N 1310nm ≤0.4dB/km 850nm ≤3.0dB/km 20D -40℃～+85℃



Cable Count OD (mm) Weight Tensile strength General attenuation Minimal Bending radius Storage temperature
      Short term Long term Singlemode Multimode
8 5.5±0.2 40kg 1200N 600N 1310nm ≤0.4dB/km 850nm ≤3.0dB/km 20D -40℃～+85℃

8C Military tactical Armored Fiber Patch Cord TPU Jacket Insertion Loss≤0.3dB 3
