Aerial Single Mode Fiber Optic Cable GYXTW 12F Armoured Optical Fiber Cable

Place of Origin China
Brand Name OMC or OEM
Certification RoHS,SGS,ISO
Model Number GYXTW
Minimum Order Quantity 1KM
Price Negotiable
Packaging Details Plywood Reel/customized
Delivery Time 7-9 working days
Payment Terms L/C, T/T,Paypal
Supply Ability 100000 Kilometer/Kilometers per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name GYXTW 12F Optical Cable Cable Diameter 8.0 Mm
Cable Weight 75KG/KM Max Tension 1500N
Max Crush Resistance 3000N/per 100cm Min Bending Radius 10D
Jacket Material PE Package Plywood Reel/customized
High Light

GYXTW 12F fiber optic cable

,

8.0 mm fiber optic cable

,

Aerial armoured optical fiber cable

Leave a Message
Product Description

Aerial Single mode fiber optic cable 8 12 core G652D armoured optical fiber cable GYXTW GYXTY fibra optic cable

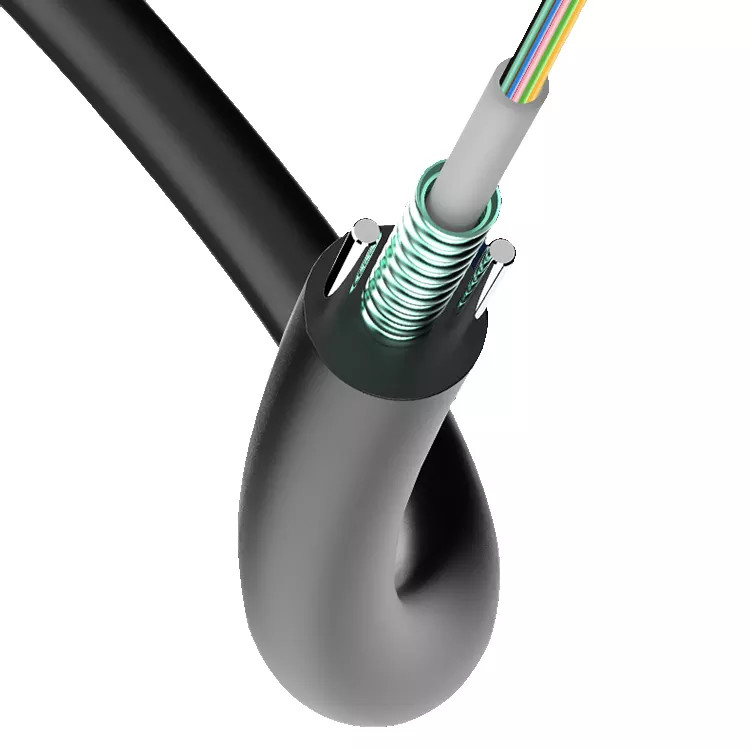

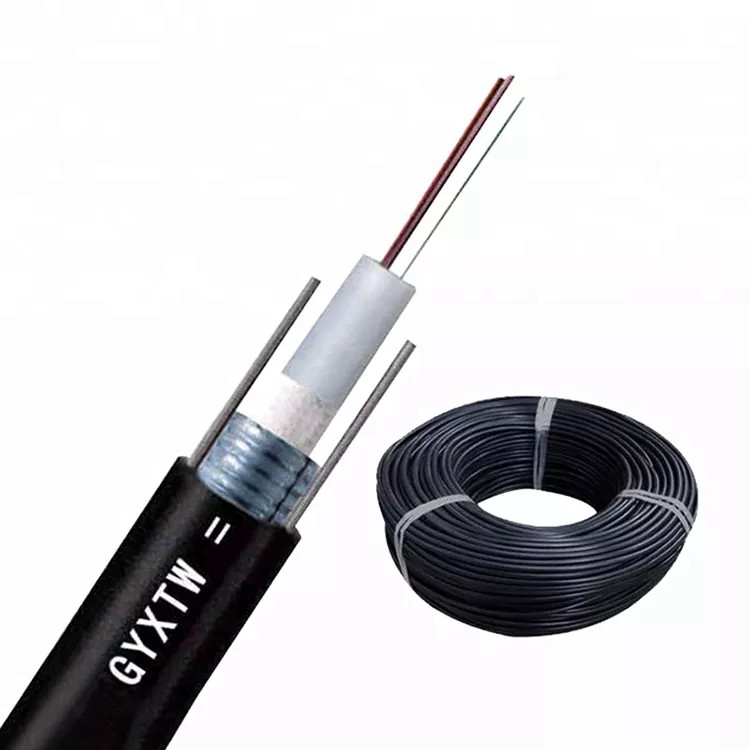

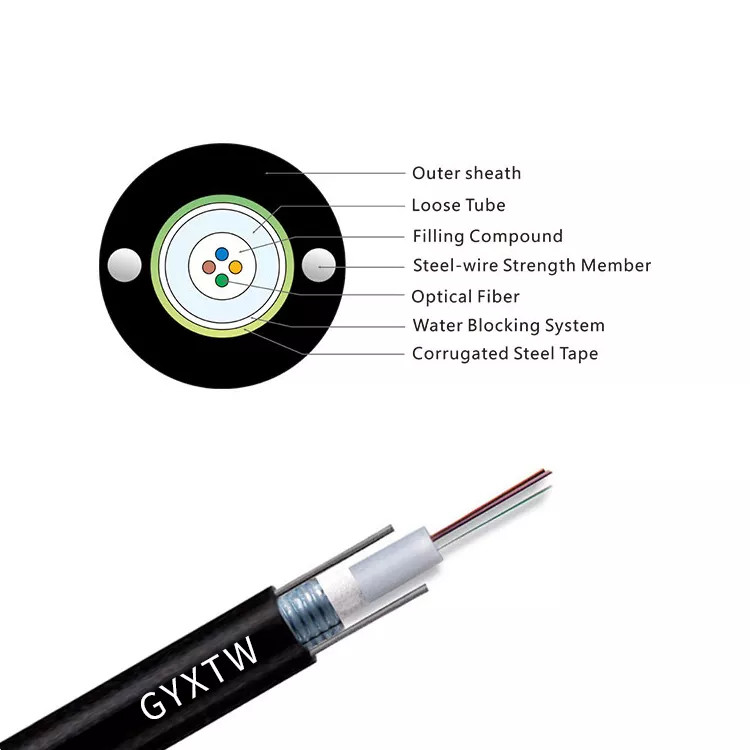

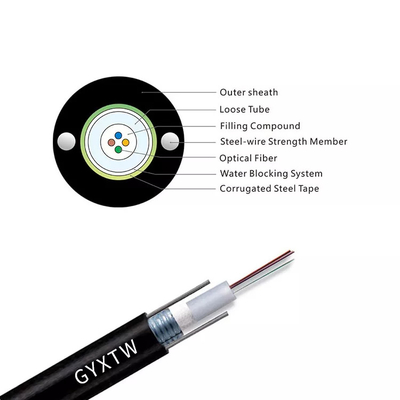

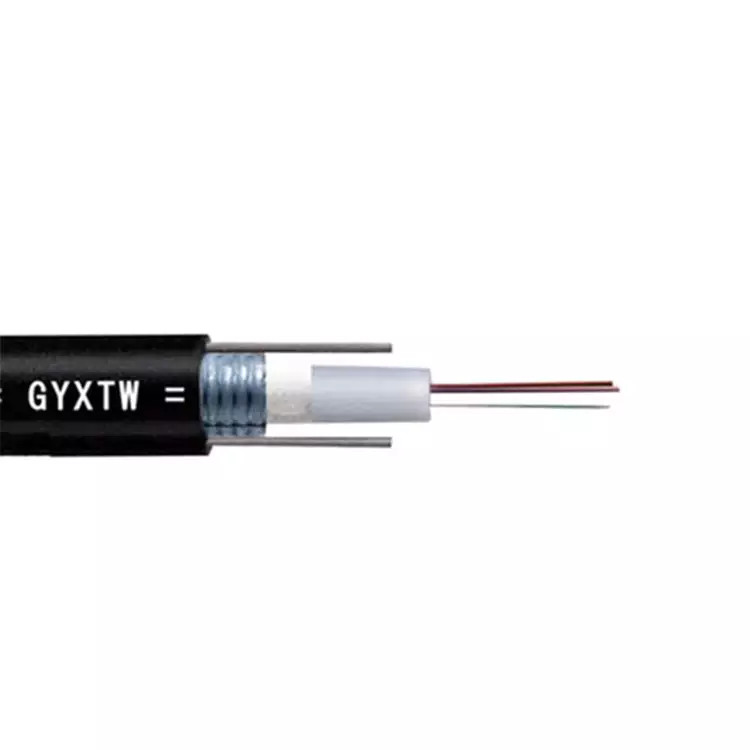

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.

Aerial Single Mode Fiber Optic Cable GYXTW 12F Armoured Optical Fiber Cable 0

Characteristics

Good mechanical and temperature performance

High strength loose tube that is hydrolysis resistant

Special tube filling compound ensure a critical protection of fiber

Crush resistance and flexibility

PSP enhancing moisture-proof

Two parallel steel wires ensure tensile strength

Small diameter, light weight and friendly installation

Long delivery length



Technical Parameters

Optical cable model Fiber number

Cable

Diameter

cable weight kg/km Maximum Tension(N) Maximum Crush Resistance(N/per100cm) Minimum Bending Radius
GYXTW-2~12 2~12 8.0 mm 75 600/1500 1000/3000 10D/20D

Aerial Single Mode Fiber Optic Cable GYXTW 12F Armoured Optical Fiber Cable 1
