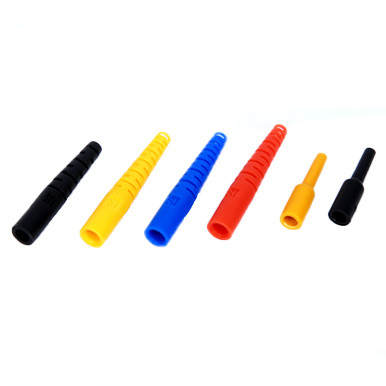

SM / MM APC ST Fiber Optic Connector Boot Size 0.9mm 2.0mm 3.0mm

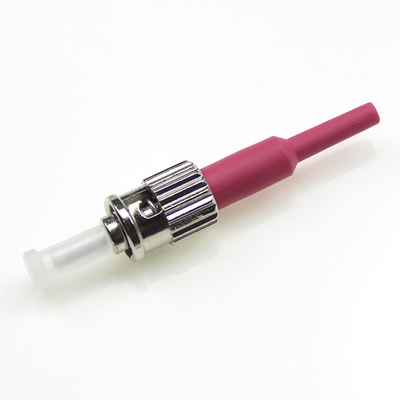

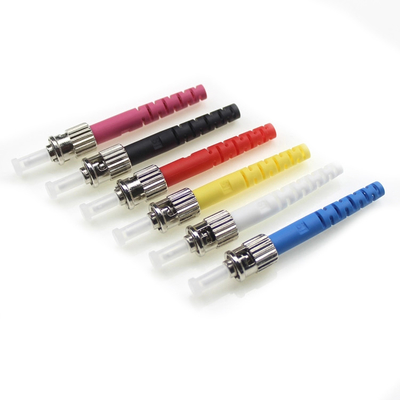

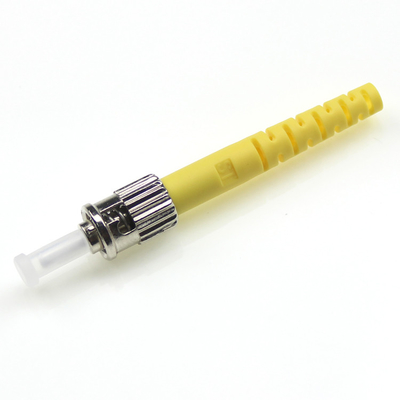

ST Fiber optic Connector

Optical Connector is a reusable passive component which could be applied in fiber and Cable connection. They are widely used in ODF, ODN,PON etc.
The ST connect was developed by AT&T shortly after the arrival of the FC. At a glance they can be mistaken for one another but the ST uses a bayonet fitment rather than a screw thread. Usage has declined in recent decades, for the same reasons as the FC. Additionally it cannot be terminated with an angled polish, which limits use in single mode fiber and FTTH applications.
Deployed predominately in multi-mode datacoms it is most common in network environments such as campuses, corporate networks and in military applications where the quick connecting bayonet had its advantages at the time. It is typically installed into infrastructures that were built at the turn of the century; when retro-fitting, STs are typically swapped out for more cost effective SC and LC connectors.

OMC manufactures many sorts of fiber connectors. Such as SC,LC,ST,FC,MU,MTRJ,E2000 ,MPO,MTP,SMA,DIN,D4 etc.
Industrial Standard:
ST: TIA/EIA, FOCIS2, GR-326. IEC61754-2 and JIS C5973 Etc.


Products Details

Environmental Performance:
Operating Environment: -40°C ~ + 80°C
Meets UL94-V0 Flammability Requirements
ROHS compliant
Optical Performance:
Meets Telcordia GR-326-Core issue
IL(Typical):SM<0.3dB; MM <0.3dB:
RL(Typical):SM >50dB; MM >35dB:
Mechanical Performance:
Connection Durability: 500 Matings cycles
Connector Repeatability: MM<0.2dB; SM <0.1dB

Company Information:

OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.

FAQ:

1. Are you the real factory?

Yes,we are the real factory more than 10 years

2. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.

3. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.

4. What is your delivery time?

Within 24 hours for normal kinds of fiber optic cable;

3~5 days for fiber optic patch cords with 10000 connectors.

5. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.

6. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.

7. Payment

For large orders: T/T, L/C

For small orders: T/T,Western Union and Paypal are acceptable
