Green Optic Fiber Fast Connector 0.9mm SC APC Quick Connector

Place of Origin China
Brand Name OMC or OEM
Model Number SC
Minimum Order Quantity 1000
Payment Terms L/C, D/A, D/P, Western Union, T/T, MoneyGram
Supply Ability 200000
Product Details
Model SC Brand OMC Or OEM
Color Green Name SC Fiber Connector
Material Plastic Body Application Patch Cord Cable
Boot Size 0.9mm IL SM<0.3dB; MM <0.3dB
High Light

plastic green Optic Fiber Fast Connector

,

SC APC Optic Fiber Fast Connector

,

0.9mm SC APC quick connector

You can tick the products you need and communicate with us in the message board.
Fiber Connector SC Ceramic Material Zirconia Ceramic
Housing SM:BlueMM:BeigeAPC: Green Boot Size 0.9mm,2.0mm 3.0mm
Operating Temp Range -40~80°C Boot color SM: Blue /white/red
Suit Cable 0.6-3.0mm OD cable Available for Not assembled Multi-Piece
Leave a Message
Fiber Connector SC Ceramic Material Zirconia Ceramic
Product Description

Description



An optical fiber connector terminates the end of an optical fiber and enablequicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers.



The SC was developed by the laboratories at Nippon Telegraph and Telephone (NTT) in the mid-eighties, and was one of the first connectors to hit the market following the advent of ceramic ferrules. Sometimes referred to as the ‘square connector’ the SC has a push-pull coupling end face with a spring loaded ceramic ferrule. Initially intended for Gigabit Ethernet networking, it was standardized into the telecommunications specification TIA-568-A in 1991 and slowly grew in popularity as manufacturing costs came down. Due to its excellent performance it dominated fiber optics for over a decade with only the ST rivalling it. Thirty years on, it remains the second most common connector for polarization maintaining applications. The SC is ideally suited for datacoms and telecoms applications including point to point and passive optical networking.



OMC manufactures many sorts of fiber connectors. Such as SC,LC,ST,FC,MU,MTRJ,E2000 ,MPO,MTP,SMA,DIN,D4 etc.

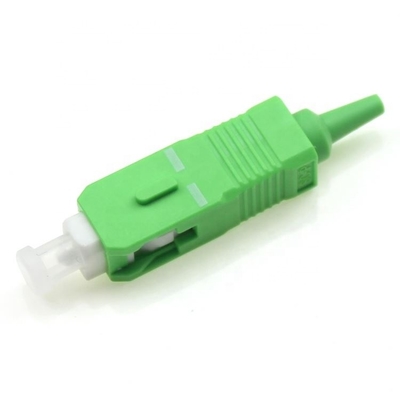

Green Optic Fiber Fast Connector 0.9mm SC APC Quick Connector 0

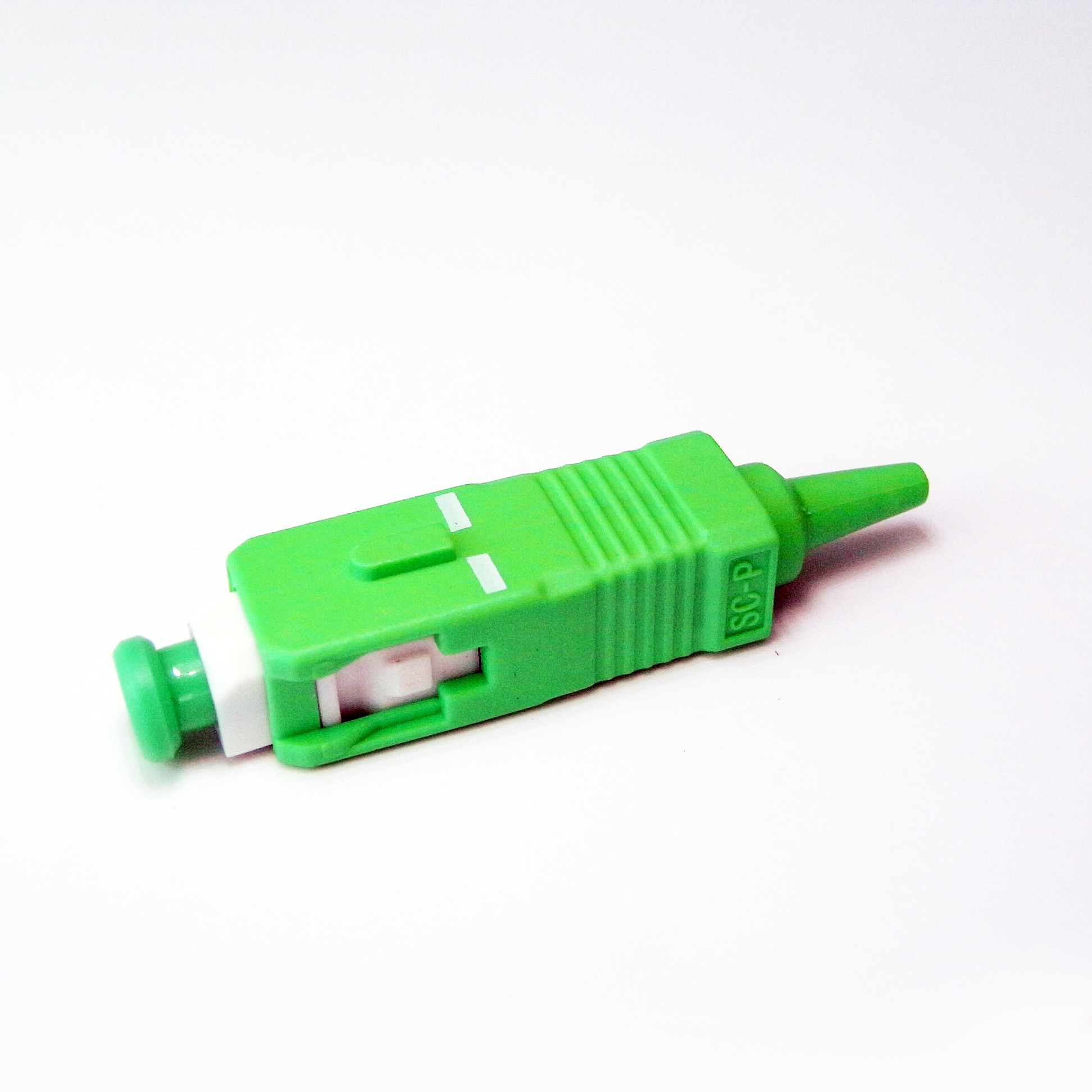

Green Optic Fiber Fast Connector 0.9mm SC APC Quick Connector 1

Industrial Standard:

SC: TIA/EIA, FOCIS3, GR-326.NTT-SC IEC61754-4 and JIS C5973.

Optical Performance:

Meets Telcordia GR-326-Core issue

IL(Typical):SM<0.3dB; MM <0.3dB:

RL(Typical):SM >50dB; MM >35dB:



Mechanical Performance:

Connection Durability: 500 Matings cycles

Connector Repeatability: MM<0.2dB; SM <0.1dB



Environmental Performance:

Operating Environment: -40°C ~ + 80°C

Meets UL94-V0 Flammability Requirements

ROHS compliant



Application

Patch cord&pigtail produce&Manufacture



Products Details

Fiber Connector SC Ferrule Material Zirconia Ceramic 2.5mm OD
Housing

SM: Blue

MM: Beige/aqua/magenta

APC: Green

Boot Size

0.9mm,

2.0mm,

3.0mm

Operating Temp Range -40~80°C Boot color

SM: Blue//white/red/yellow

MM: Beige/aqua/magenta/black

APC: Green

Suit Cable 0.6-3.0mm OD cable Available for

Not assembled Multi-Piece

Pre-assembled one piece
