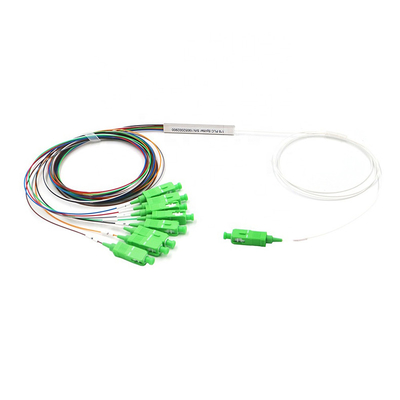

Fiber Optic PLC Splitter 1x8 Blockless With SC APC 9 / 125μM Connector
|Place of Origin||China|
|Brand Name||OMC or OEM|
|Certification||ROHS and ISO|
|Model Number||1x8 Blockless With SC APC 9 / 125μm Connector|
|Minimum Order Quantity||10pcs|
|Packaging Details||Blister Box or PE bag|
|Delivery Time||3-7 workday|
|Payment Terms||T/T, Western Union, Paypal|
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Product Name||Fiber Optic PLC Splitter 1x8 Blockless With SC APC 9 / 125μm Connector||Configuration Type||1x8|
|Package Style||Mini Module||Connector Type||SC/APC|
|Fiber Type||Singlemode||Return Loss||≥60dB|
Fiber Optic PLC Splitter 1x8,
Blockless Fiber Optic PLC Splitter,
Fiber Optic Splitter Blockless
Fiber Optic PLC Splitter 1x8 Blockless With SC APC 9 / 125μm Connector
PLC splitter is an optical power distribution device based on the integrated waveguide of quartz plate. With the features of small size, wide range of operating wavelength, stable reliability and good uniformity, It’s widely used in PON,ODN,FTTX point to connect between termination device and central office to achieve the signal splitter.
OMC ‘s Blockless PLC Splitter family has 1x2, 1x4, 1x8, 1x16, 1x32, 1x64, 2x2, 2x4, 2x8, 2x16, 2x32,2 x 64 PLC splitter, with specifications that are tailored for different applications and markets. Wide bandwidth, compact size. All products meets, ROHS, GR-1209-CORE-2001 and GR-1221-CORE-1999.
1x8 Blockless PLC Splitter in FTTH Solution
Blockless PLC splitter can integrate multiple functions onto a single chip to significantly reduce size and cost. It is widely used in PON networks to realize optical signal power management. The following figure shows 1X8 blockless PLC fiber splitter interconnected with GPON OLT and ONT through fiber optic splice closure.
|Parameter||Unit||Specification (P Grade)|
|Insertion Loss with Connector (Max)||dB||4.1/4.4||7.4/7.9||10.5/11.0||13.8/14.1||17.1/17.4||20.4/21.0|
|Insertion Loss without Connector (Max)||dB||3.8/4.1||7.1/7.6||10.2/10.7||13.5/13.8||16.8/17.1||20.1/20.7|
|Uniformity (Max.)||dB||0.6||0. 7||0.8||1.0||1.5||2.0|
|Polarization Dependent Loss||dB||0.2||0.2||0.2||0.3||0.3||0.3|
Blockless PLC Splitter
1.1X16 PLC splitter, uniform distribution of optical signal
2.Small size, with the splitter type of mini module, LC/APC connector
3.Ideal for EPON, GPON, FTTH/FTTX network
Simple and Easy Connection
Blockless PLC splitter can be easily installed in fiber splice closure, optical distribution box for space saving and no need to splice.
Best Alternative for FTTx Solution
Being installed in an outside plant enclosure, PON splitter is used to distribute or combine optical signals, which gives carriers the ability to split optical signals to multiple homes or businesses.
OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.
1. Are you the real factory?
Yes,we are the real factory more than 10 years
2. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;
Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.
3. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.
4. What is your delivery time?
Within 24 hours for normal kinds of fiber optic cable;
3~5 days for fiber optic patch cords with 10000 connectors.
5. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.
6. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory price could be offered.
For large orders: T/T, L/C
For small orders: T/T,Western Union and Paypal are acceptable
