G657A1 Fiber Planar lightwave circuit Bare Fiber PLC Splitter
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Bare Fiber PLC Splitter | Operating Temperature | -40～+85℃ |
|---|---|---|---|
| Storage Temperature | -40～+85℃ | Loose Tube Bare Fiber Only | Bare Fiber Only |
| Ins1X2Insertion Loss With Connector (Max) | 4.1 | Directivity | ≥55dB |
| Return Loss | ≥45（PC）；50（UPC）；60（APC）dB | Operation Wavelength | 1260～1650mm |
| High Light | 1x32 Fiber Optic Splitter,Fiber Optic Splitter 1x32,Bare Fiber PLC Splitter |
||
Product Description

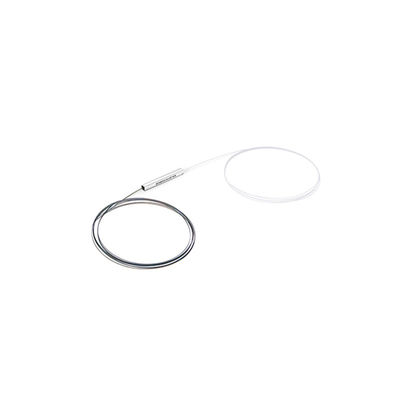

G657A1 Fiber Optic Splitter 1X2 1x4 1x32 Bare Fiber PLC Splitter
Bare fiber PLC Splitter is an optical power distribution device based on the integrated waveguide of quartz plate. With the features of small size, wide range of operating wavelength, stable reliability and good uniformity, It’s widely used in PON,ODN,FTTX point to connect between termination device and central office to achieve the signal splitter.
OMC ‘s Bare fiber PLC Splitter family has 1x2, 1x4, 1x8, 1x16, 1x32, 1x64,with specifications that are tailored for different applications and markets. Wide bandwidth, compact size. All products meets, ROHS, GR-1209-CORE-2001 and GR-1221-CORE-1999.
| Parameter | Unit | Specification (P Grade) | |||||
| Operation Wavelength | nm | 1260～1650 | |||||
| Channel Number | 1X2 | 1X4 | 1X8 | 1X16 | 1X32 | 1X64 | |
| Insertion Loss with Connector (Max) | dB | 4.1 | 7.4 | 10.5 | 13.8 | 17.1 | 20.4 |
| Insertion Loss without Connector (Max) | dB | 3.8 | 7.1 | 10.2 | 13.5 | 16.8 | 20.1 |
| Uniformity (Max.) | dB | 0.6 | 0. 7 | 0.8 | 1.0 | 1.5 | 2.0 |
| Polarization Dependent Loss | dB | 0.2 | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 |
| Return Loss | dB | ≥45(PC)；50(UPC)；60(APC) | |||||
| Directivity | dB | ≥55 | |||||
Environmental Conditions
| Operating Temperature | ℃ | -40～+85 |
| Storage Temperature | ℃ | -40～+85 |
| Operating Humidity | %RH | ≤93 |
| Storage Humidity | %RH | ≤93 |
Dimension (mm)
| Splitter | 1X2 | 1X4 | 1X8 | 1X16 | 1X32 | 1X64 |
| Cassette size | 40×4×4 | 40×4×4 | 40×4×4 | 45x4.5x4 | 50x7x4 | 60×12×4 |
| Splitter | 2X2 | 2X4 | 2X8 | 2X16 | 2X32 | 2X64 |
| Cassette size | 40×4×4 | 45x4.5x4 | 45×4×4 | 60x7x4 | 65×7×4 | 60×12×4 |
Cable Information
| Fiber type | G657A1 |
| Loose Tube | Bare fiber only |
| Connector | / |
| 2xN Splitter | Only Single Chip |
Application
The bare PLC splitter can allow a single GPON network interface to be shared among many subscribers and allow service providers to enable bandwidth-intensive applications. The following figure shows 1X8 bare PLC fiber splitter interconnected with GPON OLT and ONT through fiber optic splice closure.
Simple and Easy Connection
Bare PLC splitter can be easily installed in fiber splice closure or joint box for space saving.
Best Alternative for FTTx Solution
Being installed in an outside plant enclosure, PON splitter is used to distribute or combine optical signals, which gives carriers the ability to split optical signals to multiple homes or businesses.
