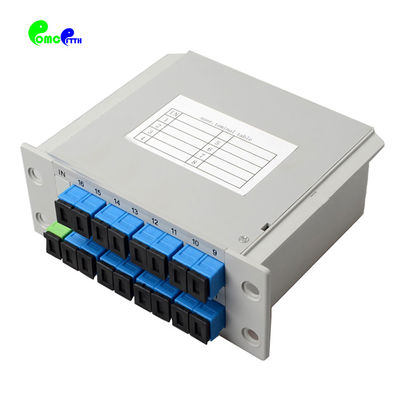

1650 nm Fiber Optic Splitter 1x16 PLC Splitter LGX Box Cassette Card Inserting

Place of Origin China
Brand Name OMC or OEM
Certification RoHS,SGS,ISO
Model Number 1X16 Mini Plug-in Module Type PLC Splitter
Minimum Order Quantity 1
Price US $ 12.5-14
Packaging Details 54*40*35cm
Delivery Time 3-7 working days
Payment Terms L/C, T/T,Paypal
Supply Ability 100000 Piece/Pieces per Month
Product Details
Product Name 1X16 Mini Plug-in Module Type PLC Splitter Channel Number 1X16
Operation Wavelength 1260~1650nm Insertion Loss (Max) 13.8/14.1
Return Loss UPC≥50dB APC≥60dB Directivity ≥55dB
Uniformity (Max.) 1.0dB Operating Temperature -40~+85℃
Use FTTX No. Of Fiber 16
High Light

1650 nm Fiber Optic Splitter

,

Fiber Optic Splitter 1x16

,

1x16 PLC Splitter

Leave a Message
Product Description

1650 nm Fiber Optic Splitter 1x16 PLC Splitter LGX Box Cassette Card Inserting



1x16 PLC Splitter LGX Box Cassette Card Inserting PLC Splitter Mini Plug-in Module Type 16 Port Fiber Optic Splitter



Planar lightwave circuit (PLC) splitter is an optical power distribution device based on the integrated waveguide of quartz plate. With the features of small size, wide range of operating wavelength, stable reliability and good uniformity, It’s widely used in PON,ODN,FTTX point to connect between termination device and central office to achieve the signal splitter.

1650 nm Fiber Optic Splitter 1x16 PLC Splitter LGX Box Cassette Card Inserting 0

OMC ‘s Mini Plug-in module Type PLC Splitter family has 1x2, 1x4, 1x8, 1x16, 1x32 PLC splitter, with specifications that are tailored for different applications and markets. Wide bandwidth, compact size. All products meets, ROHS, GR-1209-CORE-2001 and GR-1221-CORE-1999.



Specification

Parameter Unit Specification (P Grade)
Operation Wavelength nm 1260~1650
Channel Number   1X2 1X4 1X8 1X16 1X32 1X64
Insertion Loss with Connector (Max) dB 4.1/4.4 7.4/7.9 10.5/11.0 13.8/14.1 17.1/17.4 20.4/21.0
Insertion Loss without Connector (Max) dB 3.8/4.1 7.1/7.6 10.2/10.7 13.5/13.8 16.8/17.1 20.1/20.7
Uniformity (Max.) dB 0.6 0. 7 0.8 1.0 1.5 2.0
Polarization Dependent Loss dB 0.2 0.2 0.2 0.3 0.3 0.3
Return Loss dB ≥45(PC);50(UPC);60(APC)
Directivity dB ≥55



Parameter Unit Specification (P Grade)
Operation Wavelength nm 1260~1650
Channel Number   2X2 2X4 2X8 2X16 2X32 2X64
Insertion Loss with Connector (Max) dB 4.4/4.6 7.7/8.1 10.8/11.3 14.1/14.4 17.4/17.7 20.6/21.3
Insertion Loss without Connector (Max) dB 4.1/4.3 7.4/7.8 10.5/11 13.8/14.1 17.1/17.4 20.3/21.0
Uniformity (Max.) dB 0.6 0. 7 0.8 1.0 1.5 2.0
Polarization Dependent Loss dB 0.2 0.2 0.2 0.3 0.3 0.5
Return Loss dB ≥45(PC);50(UPC);60(APC)
Directivity dB

≥55



Environmental Conditions

Operating Temperature -40~+85
Storage Temperature -40~+85
Operating Humidity %RH ≤93
Storage Humidity %RH ≤93



Cable Infor

Fiber type G657A1
Pigtail cable 900um
Connector SC, LC,FC,ST,…….
2xN Splitter Only Single Chip



Dimension (mm)

1650 nm Fiber Optic Splitter 1x16 PLC Splitter LGX Box Cassette Card Inserting 1



Small Size and Compact Design

Usually mounted in the FTTx box for fiber optic signal distribution, saving time and space but still providing reliable protection for fiber optic splitter

1650 nm Fiber Optic Splitter 1x16 PLC Splitter LGX Box Cassette Card Inserting 2

1650 nm Fiber Optic Splitter 1x16 PLC Splitter LGX Box Cassette Card Inserting 3
