FC 0.9mm Fiber Optic Connectors Mullti - Piece UPC Simplex For FC Pigtail Assemblies

China FC 0.9mm Fiber Optic Connectors Mullti - Piece UPC Simplex For FC Pigtail Assemblies supplier
FC 0.9mm Fiber Optic Connectors Mullti - Piece UPC Simplex For FC Pigtail Assemblies supplier FC 0.9mm Fiber Optic Connectors Mullti - Piece UPC Simplex For FC Pigtail Assemblies supplier

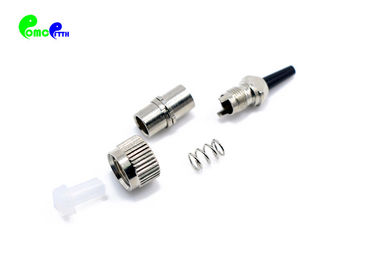

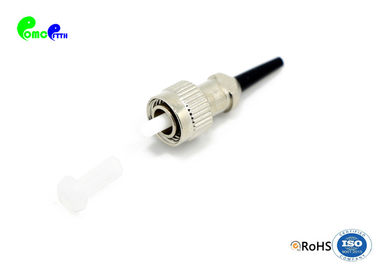

Large Image :  FC 0.9mm Fiber Optic Connectors Mullti - Piece UPC Simplex For FC Pigtail Assemblies

Product Details:

Place of Origin: China
Brand Name: OMC or OEM
Model Number: FC UPC Simplex 0.9mm

Payment & Shipping Terms:

Minimum Order Quantity: 200 pcs
Price: Negotiable
Packaging Details: 200 pcs per plastic bag, This easy to take and well-protected fiber optical cable package has been labelled and marked by OMC as default.
Delivery Time: 3 days
Payment Terms: T/T, Western Union, alipay, paypal, credit card, , MoneyGram, L/C
Supply Ability: 1000000 pcs per month
Contact Now
Detailed Product Description
Model Number:: FC UPC Simplex 0.9mm Quality Level:: IEC Grade C And IEC Grade B
Insertion Loss:: <0.2dB(Typical), 0.3dB (Max) Return Loss:: >35dB
Cable:: SM Cable Size:: 0.9mm,

FC 0.9mm Fiber Optic Connector Mullti-piece, UPC Simplex, for FC pigtail assemblies



Optical Connector is a reusable passive component which could be applied in fiber and Cable connection. They are widely used in ODF, ODN,PON etc.

OMC manufactures many sorts of fiber connectors. Such as SC,LC,ST,FC,MU,MTRJ,E2000 ,MPO,MTP,SMA,DIN,D4 etc.



Industrial Standard:



SC: TIA/EIA, FOCIS3, GR-326.NTT-SC IEC61754-4 and JIS C5973.

LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.

FC: EIA /TIA-604-04, FOCIS4, NTT-FC, GR-326. IEC61754-13 and JIS C5973

ST: TIA/EIA, FOCIS2, GR-326. IEC61754-2 and JIS C5973 Etc.

MU: TIA/EIA-604-3A, GR-326.NTT-MU, JIS and IEC.

MTRJ: TIA/EIA, FOCIS12, GR-326. IEC and JIS C5973.

MPO/MTP is available too





Environmental Performance:



Ø Operating Environment: -40°C ~ + 80°C

Ø Meets UL94-V0 Flammability Requirements

Ø ROHS compliant



Optical Performance:



Ø Meets Telcordia GR-326-Core issue

Ø IL(Typical):SM<0.3dB; MM <0.3dB:

Ø RL(Typical):SM >50dB; MM >35dB:



Mechanical Performance:



Ø Connection Durability: 500 Matings cycles

Ø Connector Repeatability: MM<0.2dB; SM <0.1dB



FC 0.9mm Fiber Optic Connectors Mullti - Piece UPC Simplex For FC Pigtail Assemblies
