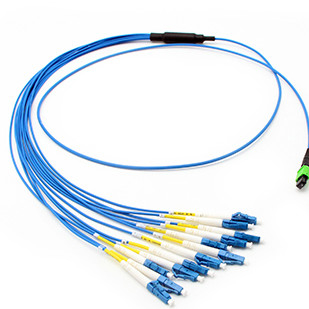

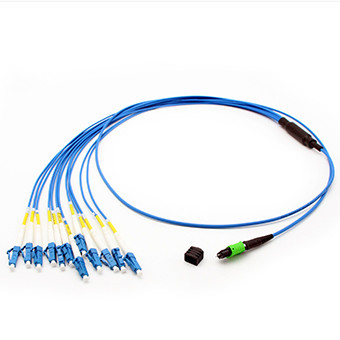

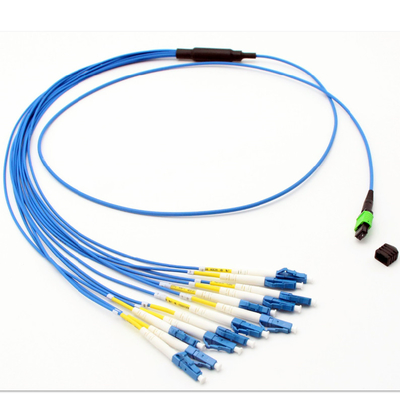

MPO LC Standard Harness Cable Assembly 12 Cores MPO Female To 6 LC Duplex
Place of Origin | China |
---|---|
Brand Name | OMC or OEM |
Certification | ROHS and ISO |
Model Number | 12F MPO-LC Standard harness Cables assemblies |
Minimum Order Quantity | 20 |
Price | Negotiation |
Packaging Details | Inner PE Bag and carton |
Delivery Time | 5 - 8 work days |
Payment Terms | L/C, T/T, Western Union |
Supply Ability | 1000/pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProducts | 12F MPO-LC Standard Harness Cables Assemblies | Insertion Loss | ≤0.3dB Mean (Standard) |
---|---|---|---|
Return Loss | APC≥60dB; UPC≥50dB | Connector | MPO Female Connectors;LC |
Fiber Channel | 12 Fibers | Tensile Strength | >70N |
High Light | MPO LC harness Cable assembly,12 Fibers harness Cable assembly,data center mpo fanout cable |
12 cores MPO Female to 6 LC Duplex( 6xLC uniboot;12 LC Simplex) Standard harness Cables assemblies.
MPO- LC/SC/FC/ST Standard harness Cables are terminated with MPO and LC/SC/FC/ST connector on both ends. The 12pcs(6pcs for LC uniboot;12 LC Simplex) fanout cables are optimized for 40G QSFP+ PLR4 to 10G SFP+ LR optics direct connection and high-density data center applications. have same length . It's specifically designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.
12F MPO- LC/SC/FC/ST Standard harness Cables designed for 40G LR4 PSM, 40GBASE-SR4, 40G QSFP+ PLR4 and high-density data center. It is optimized for 10/40/100G high-density data center applications.
All of OMC’s MPO Connectors are from Senko/Nissin/Sumitomo. MPO Patch cable/trunk cable is a kind of high density cable assemblies which is generally use in three areas.
1, The Data Center application with high dense degree environment
2, The optical fiber to the building
3, The internal connector application in fiber equipment.
MPO Connector’s Details:
Connector | Fiber Channel |
MPO Female Connectors | 12 Fibers |
Note: Female connector need to connect with male connector type. |
Connector | Reference | Housing Details |
MPO Single Mode | IEC 61754-7 |
SM APC: Green connectors+black boot (Standard Loss MPO) SM APC: Yellow connectors+black boot (Super low loss MPO) |
MPO Multimode | IEC 61754-7 |
OM1&OM2 PC: Beige connectors+black boot (Standard Loss MPO) OM3&OM4 PC: Aqua connectors+black boot (Standard&Super low loss MPO) OM3&OM4 PC: Heather Violet connectors+black boot (Standard loss MPO) |
- Meets IEC Standard IEC-61754-7; IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant
- Structured cabling per TIA-568-C
- 10G Fiber Channel Compliant
- 40G and 100G IEEE 802.3
Other connectors’ Industrial Standard:
SC: TIA/EIA, FOCIS3, GR-326.NTT-SC IEC61754-4 and JIS C5973.
LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.
FC: EIA /TIA-604-04, FOCIS4, NTT-FC, GR-326. IEC61754-13 and JIS C5973
ST: TIA/EIA, FOCIS2, GR-326. IEC61754-2 and JIS C5973 Etc.
E2000: IEC61754-15
Available for
G657A1 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000
G657A2/B2 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000
G657B3 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000
OM1 62.5/125 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000
OM2 50/125 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000
OM3 50/125 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000
OM4 50/125 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000
OM5 50/125 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000
12 cores MPO Female to 6 LC Duplex( 6xLC uniboot;12 LC Simplex) Standard harness Cables assemblies.
’s Specification:
Spec items. | Single mode (APC 8-degree polished) | Multimode (PC Flat polish) |
Insertion loss (MPO) (IEC 61300-3-34) |
Standard loss:≤0.75dB(max), ≤0.35dB(Typical) Super Low loss:≤0.35dB(max), ≤0.20dB(Typical) |
Standard loss:≤0.6dB(max), ≤0.35(Typical) Super Low loss:≤0.35dB(max) , ≤0.20dB(Typical) |
Insertion loss (LC/SC/FC/ST) (IEC 61300-3-6) |
≤0.3dB | ≤0.3dB |
Return loss(MPO) | ≥60dB(8degree polishing) | ≥25dB |
Return loss(LC/SC/FC/ST) | APC≥60dB; UPC≥50dB | ≥35dB |
Durability | <0.3dBtypical change, 200 matings | |
Interchangeability | ≤0.2dB | |
Tensile strength | >70N | |
Operating Temperature | -40 to + 85°C |
MPO End-Face 3D Interference Index
Item (IEC-61300-3-30) | Minimum | Maximum | ||
Radius of curvature (mm) | ROC-X(ABS) | 2000 | ||
ROC-Y(ABS) | 50mm | |||
Angle | Angle-X | -0.2° | -0.2° | |
Angle-Y | APC | 7.85° | 8.15° | |
PC | -0.2° | -0.2° | ||
Fiber height (nm) | 1000nm | 3500nm | ||
Max.DH.All Fiber: | -300nm | 300nm | ||
DH.Adj: | -300nm | 300nm | ||
DH.Ave Fiber: | -300nm | 300nm | ||
Core Dip: | SM | N/A | N/A | |
MM | -200nm | 300nm |
LC/SC/FC/ST End-Face Geometry 3D Interference Index
Items | Connector | PC End-face | APC End-face |
Radius of Curvature | SC/FC/ST | 10~25 mm | 5~12 mm |
LC/MU | 7~25 mm | 5~15 mm | |
Apex Offset | ≤50 um | ||
Fiber Spherical Height | +/- 100 nm | ||
Angular Offset | ------ | 8°± 0.5° |
LC/SC/FC/ST End-face Quality (SM)
Zone | Range (μm) | Scratches | Defects | Reference |
A: Core | 0 to 25 | None | None | IEC 61300-3-35:2015 |
B: Cladding | 25 to 115 | None | None | |
C: Adhesive | 115 to 135 | None | None | |
D: Contact | 135 to 250 | None | None | |
E: Rest of ferrule | None | None |
LC/SC/FC/ST End-face Quality (MM)
Zone | Range (μm) | Scratches | Defects | Reference |
A: Core | 0 to 65 | None | None | IEC 61300-3-35:2015 |
B: Cladding | 65 to 115 | None | None | |
C: Adhesive | 115 to 135 | None | None | |
D: Contact | 135 to 250 | None | None | |
E: Rest of ferrule | None | None |
Features:
- 100% pre-terminated and tested in factory to ensure transfer performance.
- Low insertion loss, high return loss
- MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies
- Economical solution for mass-termination of fiber
- Designed for low loss and standard loss SM and MM applications
- Ruggedized round cable, oval cable and bare ribbon options available
- Color coded housings available to differentiate fiber type, polish type and/or connector grade
- Good in repeatability and exchangeability
The merits of MTP/MPO Patch cable/trunk cable generally include:
High quality—MTP/MPO Patch cable/trunk cables are factory pre-terminated, tested and packaged along with the test reports. These reports serve as long-term documentation and quality control.
Decreasing cable volume—MTP/MPO Patch cable/trunk cables have very small diameters, which decrease the cable volume and improve the air-conditioning conditions in data centers.
Time saving—With the special plug and play design, MTP/MPO Patch cable/trunk cables can be incorporated and immediately plugged in. It greatly helps reduce the installation time.
Cable Drawing
Length Tolerance
Overall Length(L)(m) | length of tolerance(cm) |
0<L<1 | +5/-0 |
1<L<10 | +10/-0 |
10<L<40 | +15/-0 |
40<L | +0.5% x L/-0 |
