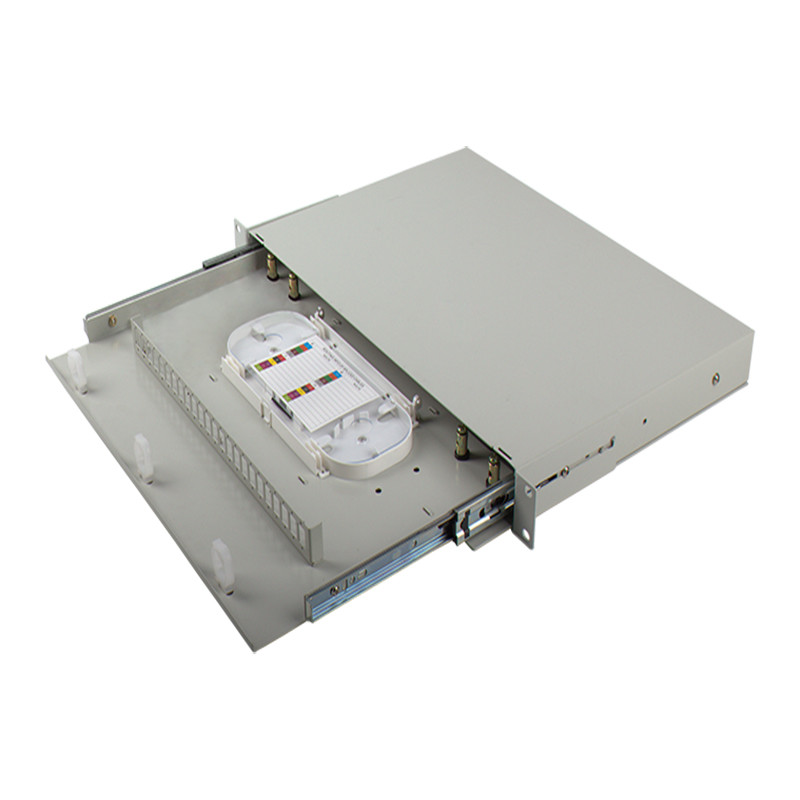

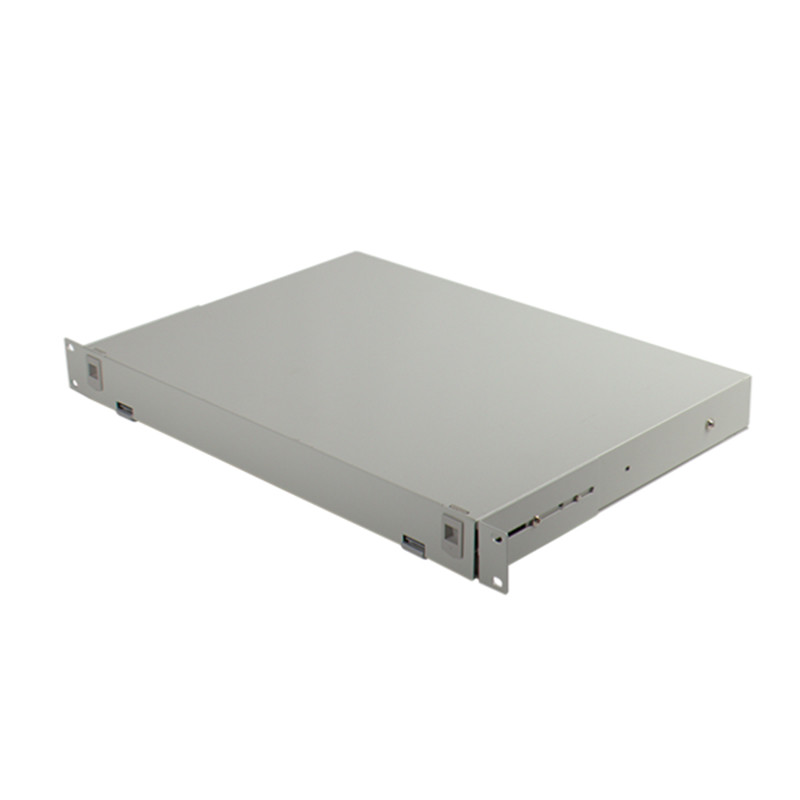

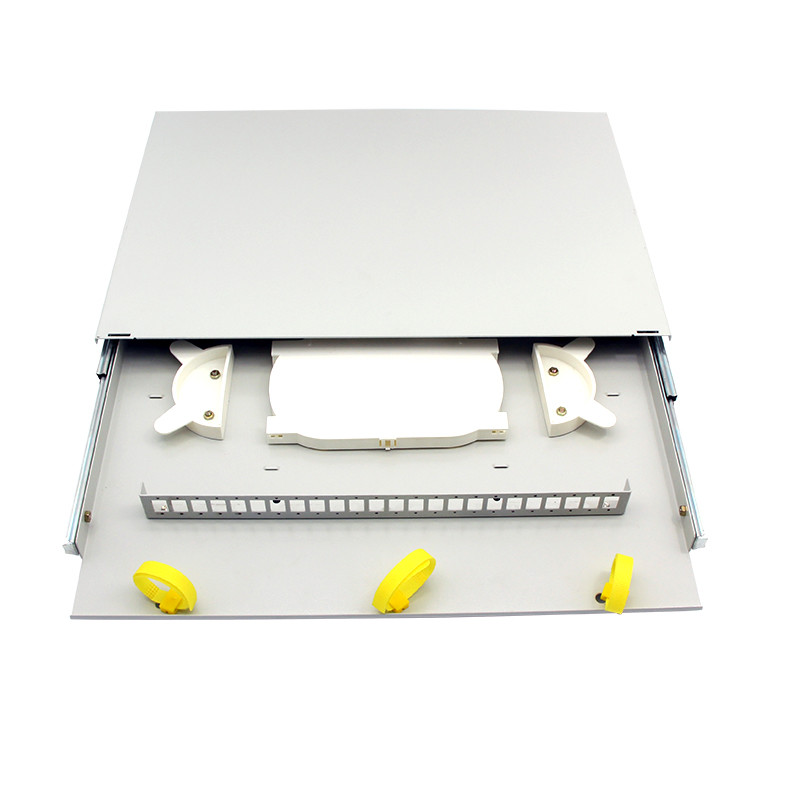

Full Cover Slide Rail Rack Mount Patch Panel 19" Rack Mountable
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Fiber Optic Equipment 19‘ 1RU Full Cover Slide Rail Rack Mount Patch Panel | Connection Port | 2 –24 Ports SC/FC/ST/LC/ST/E2000/MPO |
|---|---|---|---|
| Material | CRS Cold Rolled Steel | Dimensions (HxWxD) | 482*300*44.5mm |
| Enclosure Type | 19’ Rack Mountable | Installation | Standard EIA 19" Rack |
| Compliant | TIA/EIA-568-C.3 | OEM Service | Available |
| High Light | 19" Rack Fiber Optic Patch Panel,Full Cover Fiber Optic Patch Panel,Full Cover Rack Mount Patch Panel |
||
Product Description
Fiber optic equipment 19‘ 1RU Full cover Slide rail rack mount patch panel
The Fiber Optic Patch panel is a kind of fiber optic management products used to distribute and protect the optical fiber links in FTTH Network. It is available for the distribution and terminal connection of various kinds of optical fiber system. These units are available in sizes that fit the most common distribution requirements.
OMC provide is a kind of high quality, micro sized fiber optical Patch panel made of quality cold-rolled steel sheet and undergoes static plastic spraying treatment, which can be used to mount SC/LC/FC/ST/ MPO/E2000 adapter, the box can be installed on the indoor wall and terrace.
Specification:
| Part No. | L7xxxx | Material | CRS Cold rolled steel |
| Connection Port | 2 –24 Ports SC/FC/ST/LC/ST/E2000/MPO | Dimensions (HxWxD) | 482*300*44.5mm |
| Product Name | 19‘ 1RU Slide rail rack mount patch panel-Full cover |
| Enclosure Type | 19’ Rack Mountable |
| Installation | Standard EIA 19" Rack |
| Compliant | TIA/EIA-568-C.3 |
Features and Advantages
- Made of cold-rolling steel, static spreading-plastic, small dimension and exquisite and easy for operation
- The box has a pothook, which is convenient to install and dismantle
- The splice tray could be piled one upon another, flexible to turn; the curve radius of the coiled spear fibers should be guaranteed to be over 37.5mm in the splice tray
- The box is of unique structure, reasonable layout, and has adequate room for operation
- Adjustable clamp seal ring and reinforce configuration, which could adjust different sizes of cables flexibly to make sure the cables are clamp tightly
- The indoor type is of excellent seal performance, which could prevent water from entering effectively
- Can be installed with SC/LC/FC/ST adapter
- Up to 48 cores splice capacity MAX in 1U patch panel
- Rack Mount and Sliding drawer design both available

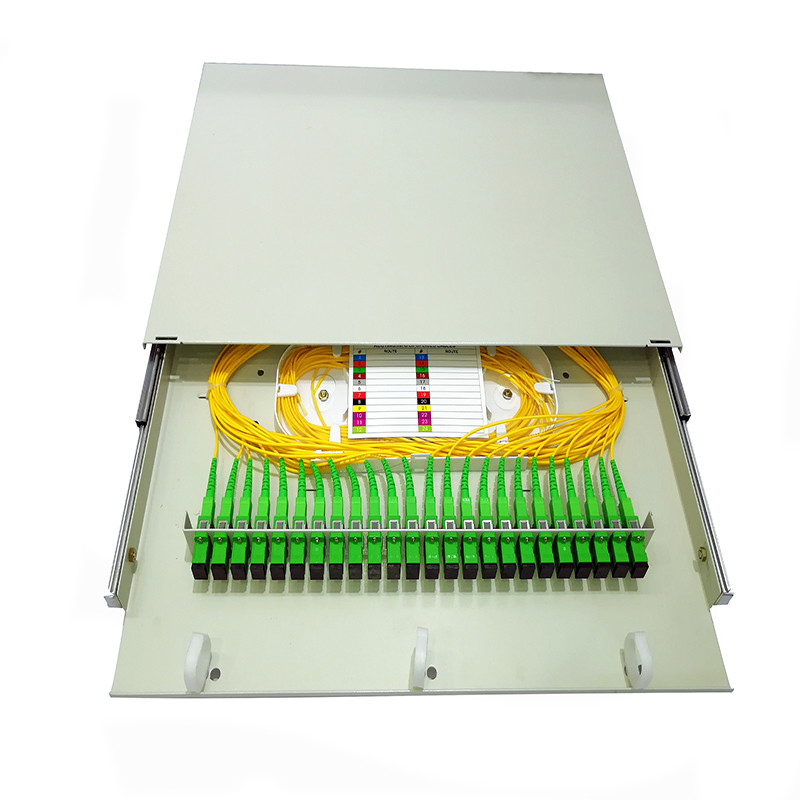

The Full loaded products include: Adapters and pigtails (for reference)
Full loaded Accessories
12F Color-Coded Fiber pigtails set Adapter
Blank port cap Cage nut
Kind Reminder
Fiber optic patch panel not including the adapters and pigtails. If you need them be installed, please contact us for details at sales@omcftth.com, we can make it for you with reasonable price. Thank you!
Kind Reminder:
We can make any patch panel according to your drawing. 2U,3U,4U are available
