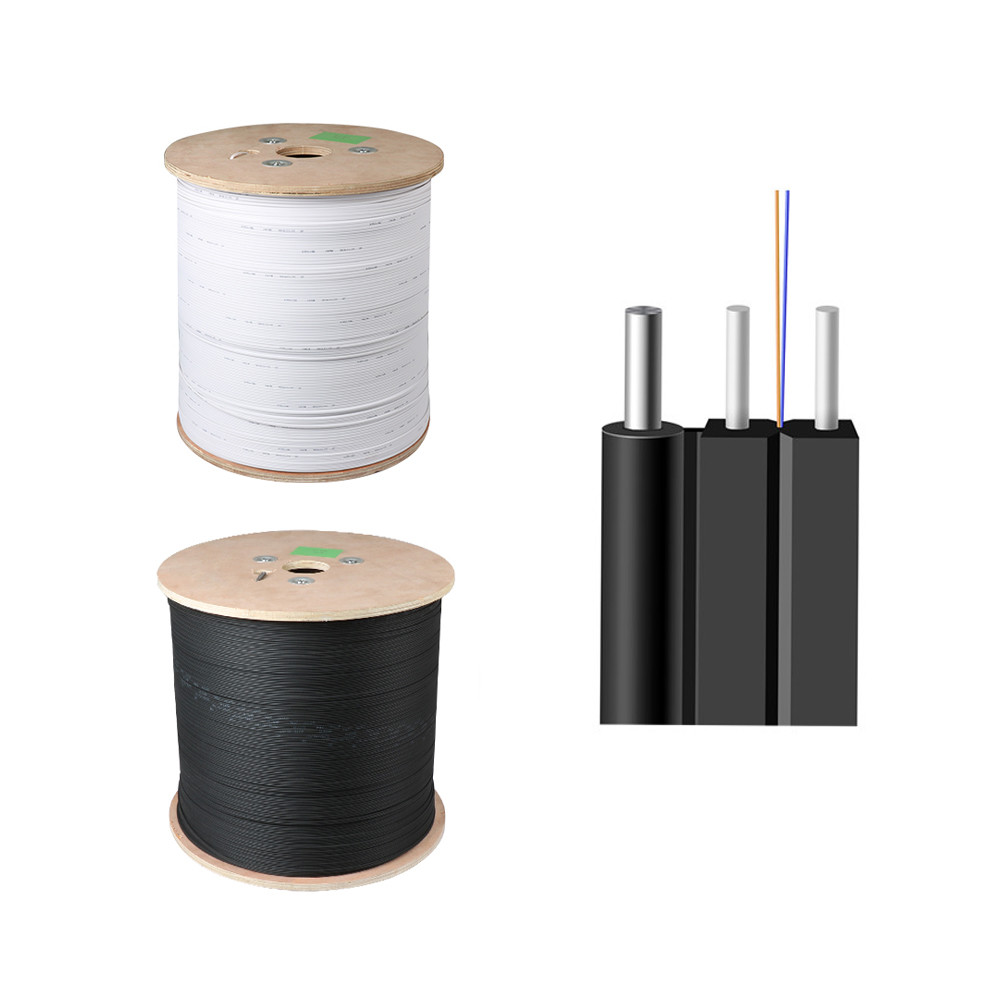

Outdoor Steel Wire FTTH Fiber Optic Drop Cable LSZH Self Support

Place of Origin China
Brand Name OMC or OEM
Certification RoHS,SGS,ISO
Model Number 2F Outdoor Fiber Drop Cable
Minimum Order Quantity 1KM
Price Negotiable
Packaging Details 40*40*35cm
Delivery Time 5-8 working days
Payment Terms L/C, T/T,Paypal
Supply Ability 100000 KM per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 2F Outdoor Fiber Drop Cable Strength Member 0.45-0.52mm FRP/KFRP/ Steel Wire
Tensile Strength 600/300N Crush Resistance 2000/1000(N/100mm)
Cable Diameter 2.0*5.0mm Cable Weight 19KG
Material LSZH Self-supporting Strength Member 1.0mm Solid Steel Wire/ Straned Steel Wire
High Light

Self supporting FTTH drop cable

,

Outdoor FTTH Fiber Optic Drop Cable

,

LSZH FTTH Fiber Optic Drop Cable

Leave a Message
Product Description

GJYXFCH-2 2FOutdoor Self-Support Steel Wire FTTH Fiber Optic Drop Cable With GFRP Strength Member LSZH

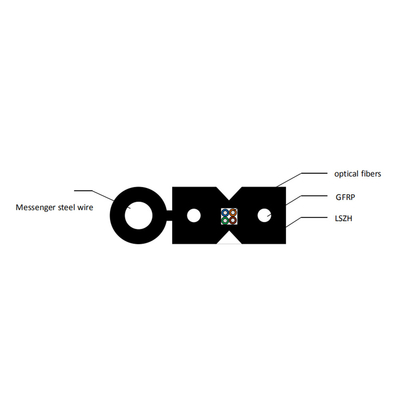

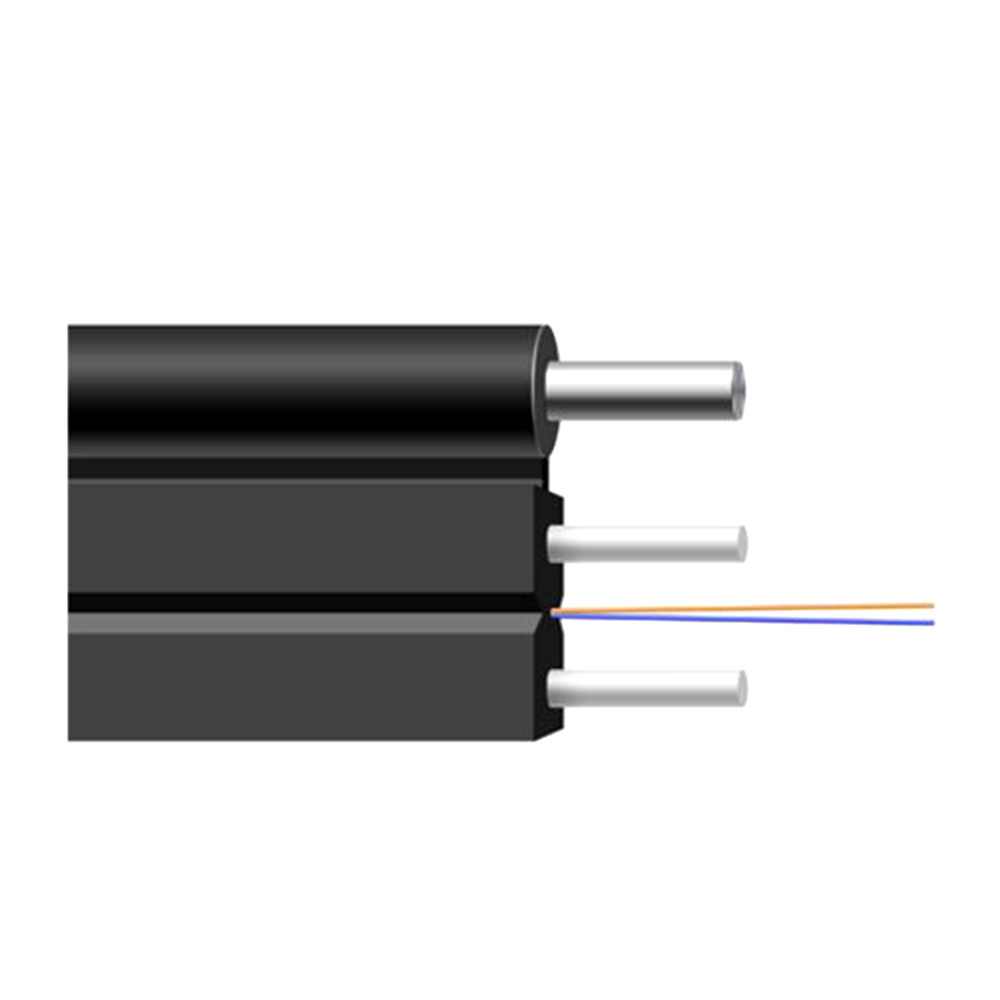

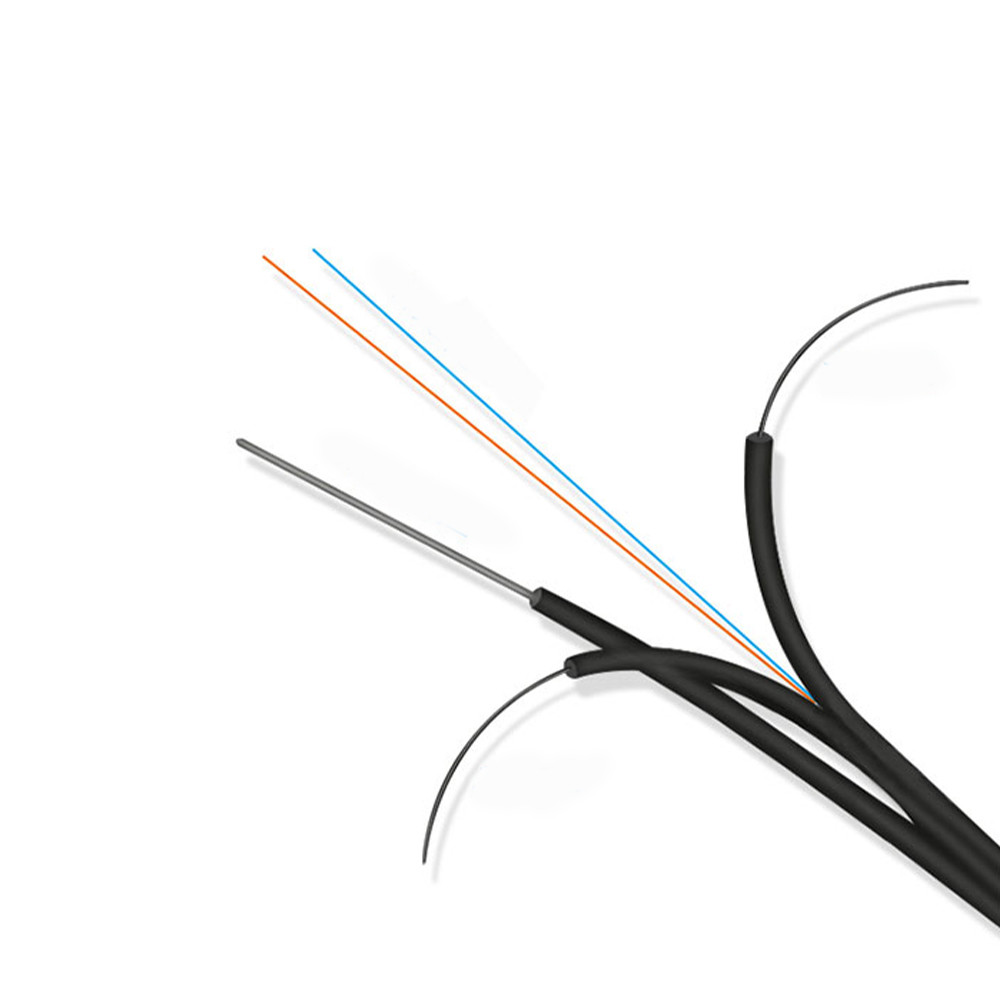

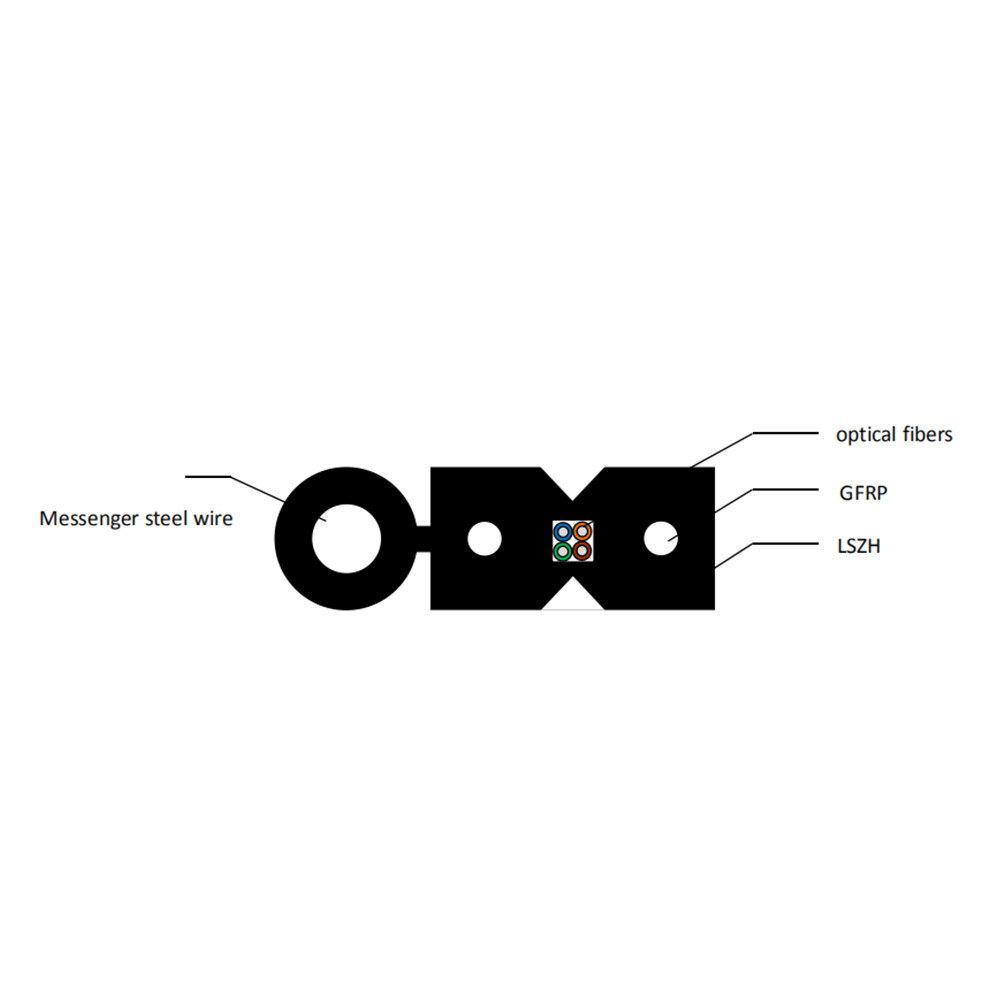

Self-supporting FTTH drop cable is constructed with one or two single-mode fiber (G.657A ). The cable is protected by a dielectric strength member made of fiberglass reinforced plastic (FRP), steel wire and a LSZH outer jacket. Designed for outdoor installation, the cable is well suited for connections between the dome closure and small dwelling unit/warehouse and independent villas.

Outdoor Steel Wire FTTH Fiber Optic Drop Cable LSZH Self Support 0

Characteristics

l Self-supporting structure, light weight, easy to install

l Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property

l Steel wire as additional strength member has high tensile strength

l Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber

l Simple structure, light weight and high practicability

l Fibers count is 1-12 cores, can be other fiber cores upon request.

l Novel flute design, easily strip and splice, simplify the installation and maintenance

l Durable and flame retardant LSZH sheath, low smoke zero halogen



Technical Data

Fiber Count 1F 2F

Self-supporting

Strength member

Solid Steel wire/ Straned Steel wire
1.0mm
Strength member FRP/KFRP/Solid Steel wire
0.45-0.52mm 0.45-0.52mm
Cable diameter(mm) Approx. 2.0*5.0(±0.1) 2.0*5.0(±0.1)
Cable weight(kg/km) Approx 18.5/20 19/20.5
Tensile Strength Short/ Long Term(N) 600/300
Crush resistance short/long term (N/100mm) 2000/1000
Operating temperature range(°C) -40°C ~+70°C

Outdoor Steel Wire FTTH Fiber Optic Drop Cable LSZH Self Support 1

Main Mechanical and Environmental Performances

Items Test Standard Specified Value Requirements
Tension IEC 60794-1-2-E1 See Technical data

Additional attenuation:

≤0.4dB after test

Crush IEC 60794-1-2-E3 See Technical data

Additional attenuation:

≤0.4dB after test

Impact IEC 60794-1-2-E4

R=300mm, 10Nm,

one in 3 different places

Additional attenuation:

≤0.4dB after test

Repeated Bending IEC 60794-1-2-E6 R=30H

Additional attenuation:

≤0.4dB after test

Temperature Cycling IEC 60794-1-2-F1 -40℃~+70℃

Attenuation change:

≤0.4dB/km after test



Storage Temp: -20°C ~+50°C

Other fibers please contact our sales representative.



Application

Outdoor aerial application

Used in the FTTH projects

High speed optical routes in building

High performance optical network operation

Outdoor Steel Wire FTTH Fiber Optic Drop Cable LSZH Self Support 2

Ideal Solution by Using Self-supporting FTTH Drop Cable

A high-capacity FTTH network gives you opportunities to build a competitive advantage and maintain an eco-sustainable network that consumes less power. With simple structure and light weight, self-supporting FTTH drop cable is highly recommended for the connection of outdoor and indoor cabling.
