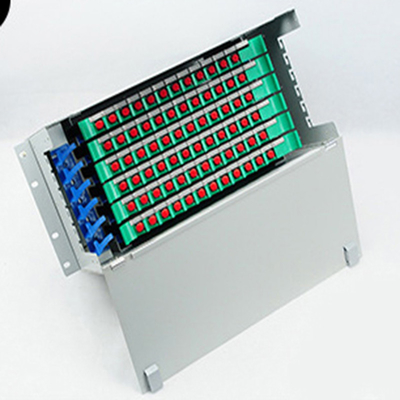

72 Cores ODF Patch Panel Rack Mountable For FTTX Project And Data Center

72 Cores ODF Patch Panel Rack Mountable type for FTTX Project and Data Center

Generally, the ODF unit box is a necessary part of the indoor optical distribution frame. 12 cores fusion splicing and distribution module plays the main role and its function is splicing, fiber storage and protection. A completed ODF unit will be with adapter, pigtail and accessories like splice protection sleeve, nylon tie, snake like tube, screw.

Material: Cold Reduced Electrolytic Tinplate. Body: 1.0mm, front plate 1.5mm

Products specification:

Match Modular 12F splice and storage tray

Features

• 19’ standard mounting, available for all kinds of rack and cabinet.
• Metal, static electric plastic sprayed. Neat appearance, reasonable structure. With cable fixed and protection function; With functions of fiber optic cable terminating;
• All are designed as modules; all operation could be done at the front side of the box. Flexible installation. Convenient for operation and maintenance.
• Designed as a drawer. This could be pulled out and pushed easily. A unit with splice and distribution integrated.
• Suitable for both ribbon and bunch fiber cables.
• Each splice trays can be clamped with 12FC, SC, ST, LC(Duplex) adapters/30° oblique installation, preventing eyes form harm of laser and ensuring the fiber bending radius.
• Operation and storage temperature: -25℃ - +55℃
• Dielectric intensity: ≥3KV(DC)/1minNo breakdown, no arcing
• Insulation Resistance: ≥1000M&/500V(DC)
• Shelter plate of fiber bending radius≥40mm

Application: FTTX project, Data center

Company Information:

OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.

FAQ:

1. Are you the real factory?

Yes,we are the real factory more than 10 years

2. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.

3. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.

4. What is your delivery time?

Within 24 hours for normal kinds of fiber optic cable;

3~5 days for fiber optic patch cords with 10000 connectors.

5. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.

6. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.

7. Payment

For large orders: T/T, L/C

For small orders: T/T,Western Union and Paypal are acceptable
