4 Core Fiber Optic Terminal Box PLC Splitter Waterproof For Ftth

Place of Origin China
Brand Name OEM or OMC
Certification RoHS,SGS,ISO
Model Number 4 Core Fiber Optic Terminal Box
Minimum Order Quantity 50
Price Negotiable
Packaging Details 54*40*35cm
Delivery Time 5-8 working days
Payment Terms L/C, T/T,Paypal
Supply Ability 100000 Piece/Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 4 Core Fiber Optic Terminal Box Adapter 4pcs Of SC Simplex /4pcs Of LC Duplex
Cable Ports 1 Applicable Cable OD 5-10mm
Box Dimensions(mm) 186mm X 116mm X 40mm Material ABS/ABS+PC
Max Capacity(F) 8 Installation Method Rack Mount And Pole Mount
High Light

4 Core Fiber Optic Terminal Box

,

IP55 Fiber Optic Termination Box

,

IP55 4 Core Fiber Optic Termination Box

Leave a Message
Product Description

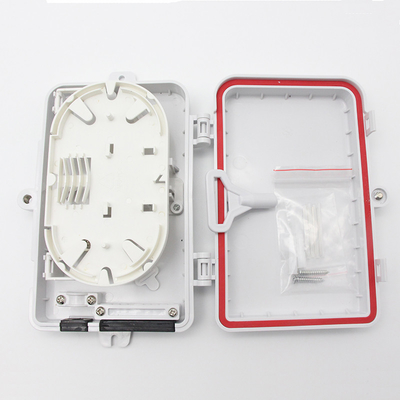

4 Core Fiber Optic Terminal Box PLC Splitter Waterproof Ftth Box Fiber Optic Distribution Box



Description

This Lockable IP55 distribution box is supplied loaded or unloaded and offers the ability to terminate 4 fibers housed in a strong robust ABS enclosure for indoor and outdoor applications. This terminal box terminates up to 4-8 fiber optic cables, offers spaces for splitters and up to 4/8 fusions, allocates 4 SC adapters and working under both indoor and outdoor environments. It is a perfect cost-effective solution-provider in the FTTX networks. Accommodates splitters and up to 4 SC simplex adapters ,Max allowance for entry cables: max diameter 10mm, 1 cable, Max allowance for exit cables: Up to 4 simplex cables

4 Core Fiber Optic Terminal Box PLC Splitter Waterproof For Ftth 0

Application

Widely used in FTTH access network.

Telecommunication Networks

CATV Networks

Data communications Networks

Local Area Networks



Features

IP 55 Rating for external use

Lockable door for added security

Integrated cable tie points for securing incoming cable

Up to 8 splices & 4xSC connection points or 1x4 PLC splitter

Removable splice tray for easy installation

Accepts loose tube, distribution and pre-terminated cables

Integrated bend radius protection

Removable door for ease of installation

Supplied with 4 heat shrink splice protectors

Supplied with transit tubing

Supplied with wall fixings and tie wraps

ROHS, REACH compliant

.

Specification

Model FDB-104C
Adapter 4pcs of SC Simplex /4pcs of LC Duplex
Cable Ports 1
Applicable cable OD 5-10mm
Box Dimensions(mm) A 186mm x B 116mm x C 40mm
Material ABS/ABS+PC
Max capacity(F) 8
Installation method Rack mount and pole mount



Operation conditions

Temperatures: -40℃ -- 60℃

Humidity: 93% at 40℃

Air Pressure: 62kPa – 101kPa



Standard Accessories

Labeling paper, abrasive paper, self-adhesive positioning block, heat-shrink protective sleeves, nylon tie,insulation tape, fixing screws.

4 Core Fiber Optic Terminal Box PLC Splitter Waterproof For Ftth 1
