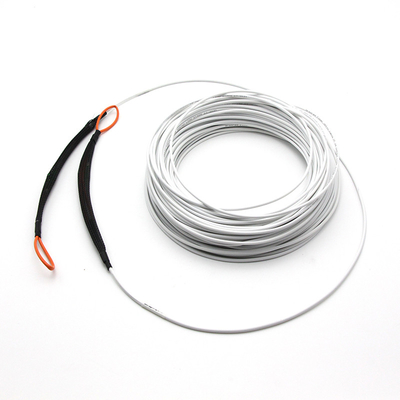

LC APC- LC APC G657A2 Simplex Armored Patch Cable LSZH OPNR PVC For FTTH project

Place of Origin China
Brand Name OMC or OEM
Certification ROHS and ISO
Model Number Armored Simplex
Product Details
Product Name Simplex Armored Patch Cord Connector Type LC SC FC ST
Insertion Loss ≤0.3dB(IEC Grade C) ≤0.12dB(IEC Grade B) Return Loss SM UPC ≥ 50dB(min) SM APC ≥ 60dB(min) MM P ≥ 35dB(min)
Cable Structure Simplex Jacket Material LSZH/PVC/OFNR/OFNP
High Light

LC Simplex Armored Patch Cable

,

OPNR PVC Armored Patch Cable

,

850nm MM Fiber Optic Patch Cords

Leave a Message
Product Description

LC APC- LC APC G657A2 Simplex Armored Patch Cable LSZH OPNR PVC Fof FTTH project​





Armored Patch cord is a patch cord which could be used as cooper patch cable. They adopted a cable with soft metal protection tube and standard connector. The apply place are in the floor corner. Those products could protect the fiber bite by mouse and ant. Although armored fiber optic cables are strong, they are actually as flexible as standard fiber optic patch cords; they can be bending randomly without being broken. The rugged armored cables allow optical fiber to be installed in the most hazardous areas, including environments with excessive dust, oil, gas, moisture, or even damage-causing rodents.





With trick











PRODUCTS SPECIFICATIONS:

Connector LC Polish PC,UPC,APC
Fiber Mode 9/125μm Jacket Color

SM:Yellow/Blue/White;

Cable OD Simplex 2.0mm,3.0mm Wavelength

SM:1310/1550nm

Cable Structure Simplex Jacket Material LSZH/PVC/OFNR/OFNP
Insertion loss

≤0.3dB(IEC Grade C)

≤0.12dB(IEC Grade B)

Crush Resistance(N/100mm)

Long term 3000;

short term:5000

Return loss

SM UPC ≥ 50dB(min)

SM APC ≥ 60dB(min)

Interchangeability &Vibration ≤0.2dB
Tensile Strength(N)

Long term 100;

short term:200

Operation&Storage temperature -45~85°C





Features:

High anti-tensility; High anti-pressure

High bent Resistance; Anti-bite from rodent animals

Flexible, convenient to connection and easy to deploy

Don’t worry about damage in project, Save space

Deploy easily and reduce cost of wiring, improve the inside

Situation of the ODF

USE as normal soft cable.

LC APC- LC APC G657A2 Simplex Armored Patch Cable LSZH OPNR PVC For FTTH project 0

Application:

ODF,MODF,OCC

Fiber Cabling system, LAN,FTTH

LC APC- LC APC G657A2 Simplex Armored Patch Cable LSZH OPNR PVC For FTTH project 1

Benefits of Armored Fiber Patch Cable

Common fiber optic cable is fragile, which needs to be protected, especially when in harsh applications where cables could be compromised by rodents, constant wear and tear or weather damage. Armored fiber patch cable retains all the features of standard fiber cable but is much stronger due to its extra layers of armor. With the protection of flexible and durable steel tube, armored fiber patch cable will ensure the excellent operation of your network.



Ideal for harsh installation conditions that require exceptional durability. It is used as interconnection or cross connection in data center. It is also used in ceiling, corridor and other harsh environment.

LC APC- LC APC G657A2 Simplex Armored Patch Cable LSZH OPNR PVC For FTTH project 2

application
