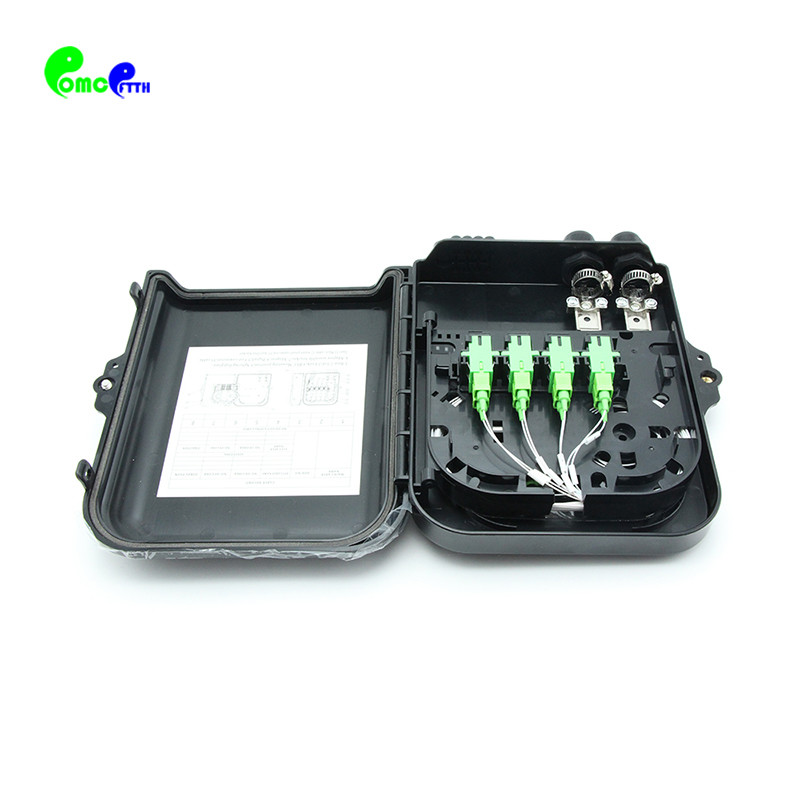

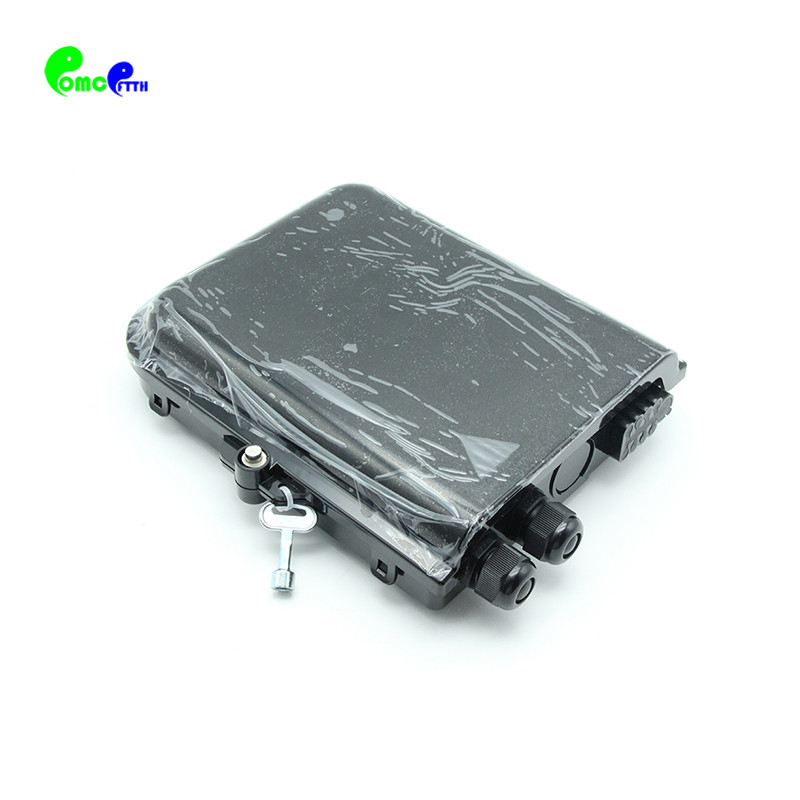

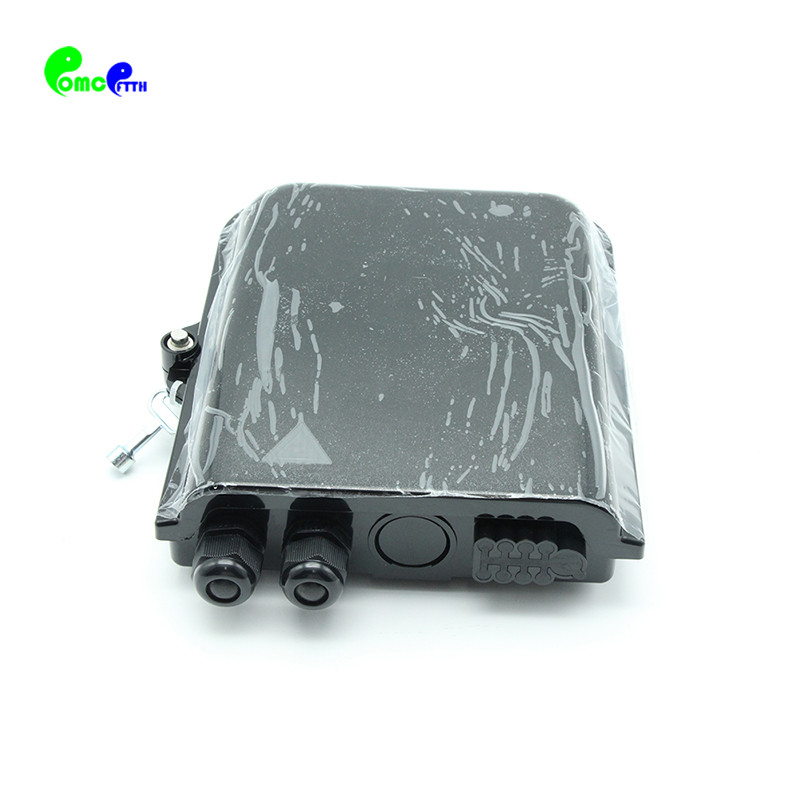

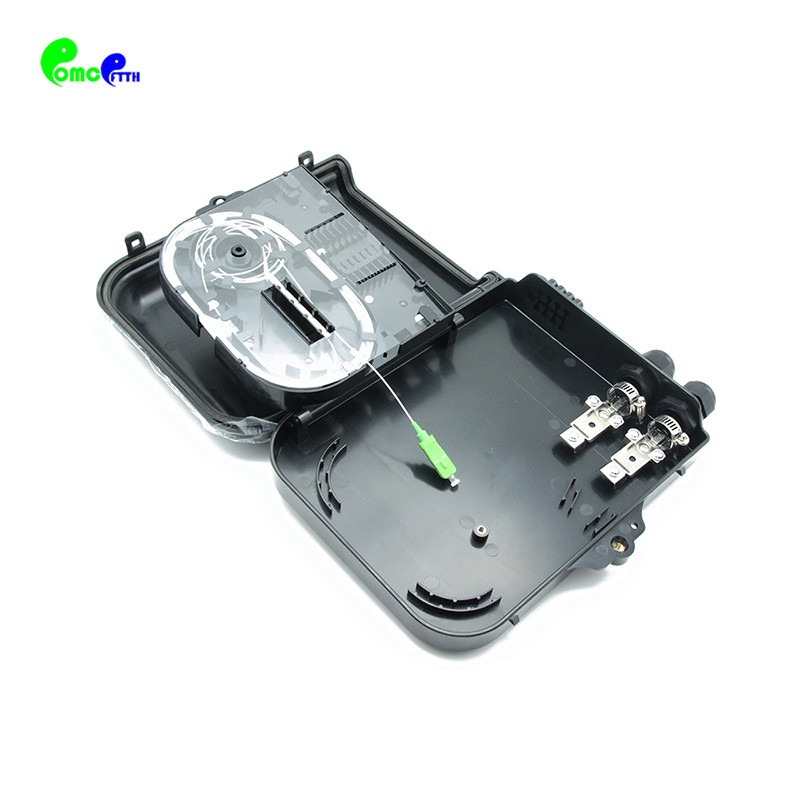

FTTH FDB Fiber Distribution Box 16F ODB Optical Termination Box

Place of Origin China
Brand Name OMC or OEM
Certification ROHS and ISO
Model Number FDB-108A-6
Minimum Order Quantity 1pcs
Price Negotiable
Packaging Details Individual box or according to customer's request Single sample size:35*27*12cm , gross weight:1.5 kg/Piece 10pcs one carton, carton size:71*31*55cm , gross weight 15.67kg/carton
Delivery Time 5~10 working days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 10000 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name Fiber Distribution Box Insert Loss ≤0.35dB
Return Loss ≥50 DB Material PC+ABS
Size 225*220*55mm Working Temperatureacity -40°C+60°C
Numbers Of Adapter 8 Pcs SC/UPC Or SC/APC Weight 1.2kgs
High Light

FTTH fdb box


FDB Fiber Distribution Box


FTTH fiber splitter distribution box

Leave a Message
Product Description

FTTH FDB Fiber Distribution Box 16F ODB Optical Termination Box


FTTH Fiber Distribution Box 16F Supplier FDB-108A-6 Optical Fiber Distribution Box


Fiber Distribution box (FDB), known as optical Distribution box (ODB) as well, is a compact fiber management product of small size. It is widely adopted in FTTx cabling for both fiber cabling , provides the connection between fiber optic cables and passive optical splitters.

Fiber Distribution box contains the shell, the internals (supporting frame, set fiber disc, fixing device) and optical fiber joint protective element. Prominent advantages of fiber termination box lie in efficient cable-fixing, welding and its protective role in machinery of the optical fiber.

A insulation is always demanded between cable metal components and cable Distribution box shell in a fiber termination box, which provides space for cable terminal and remained fiber storage. In addition, fiber Distribution box also facilitate the installation of different occasions since it is easy to access, which turns out to be time and cost saving.


Working Environmental conditions:


1. Working temperature:-40°C+60°C;
2. Relative humidity: ≤93%(at +40°C);
3. Atmospheric pressure:62kpa~101kpa(Approximate elevation 0~5000m);
4. Insert Loss:≤0.35dB;
5. Return Loss:≥50 dB;
6. Plug durability:>1000 times;
7. Insulation resistance:≥1000MΩ/500v(DC);
8 Grounding resistance : >3000V (DC)/1min without breakdown, flashover


OMC’s FDB Family


OMC mainly offer The wall mount fiber Distribution boxes are designed for either pre-connectorized cables, field installation of connectors, or field splicing of pigtails. They offer an ideal solution for building entrance terminals, telecommunication closets, main cross-connects, computer rooms and other controlled environments.


Fiber Distribution Box: FDB-108A-6


Material Size Max Capacity Numbers of Adapter Weight Color



L*W*H(mm) 225*220*55


Splice 8/16 Fibers

PLC Splitter 1pcs of 1x8(SC)


8 pcs SC/UPC or SC/APC








Water-proof design with IP-55 Protection level
Integrated with splice cassette and cable management rods.

Manage fibers in a reasonable fiber radius condition.
Easy to maintain and extend the capacity

Fiber bend radius control more than 40mm.
Suitable for the fusion splice or mechanical splice.

1x2/1x4/1x8 Splitter can be installed as an option. Efficient cable management.
Entrance cable OD:7-10mm
Distribution cable of 8 ports for 2-4mm drop ca- ble.
Wall Mount and Pole mount Install


Standard Accessories:


Installation nuts, Splice sleeves,Metal key

Fiber Distribution Box FDB-108A-6-1

Fiber Distribution Box FDB-108A-6-2


Fiber Distribution Box Application


Fiber Distribution Box Application


FDB series are applicable in FTTH project and suitable for outdoor application. They can distribute cables with a splitter.They have the subsequent functions of mechanical splice, fusion splice, distributions, etc.
