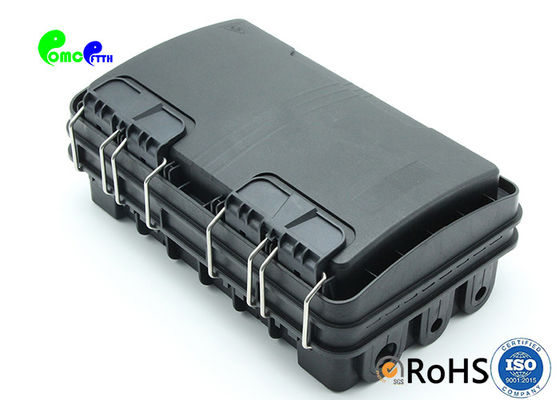

Waterproof Outdoor Fiber Distribution Box Aerial 16 Ports FTTH Splice Closure

Place of Origin China
Brand Name OMC or OEM
Certification ISO RoHS
Model Number AFATC-002A Aerial Fiber Access Terminal Closure
Minimum Order Quantity 5
Price 15-30
Packaging Details Paper Box
Delivery Time 3-7 workdays
Payment Terms L/C, T/T, Western Union,Paypal
Supply Ability 1000000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 16F Fiber Closure Model No AFATC-002A
Dimension( L*W*H ) 285*175*110mm Material Modified Polymer Plastic +GF
Adapter 16pcs Of SC Simplex Cable Ports 6 In /16 Out Drop Cable Ports
Max Capacity(F) 32F Applicable Cable OD 5-20mm
Installation Method Rack Mount And Pole Mount Color Black
High Light

Waterproof Outdoor Fiber Distribution Box

,

FTTH Splice Closure

,

FTTH Fiber Distribution Box

Leave a Message
Product Description

Waterproof Outdoor Fiber Distribution Box Aerial 16 Ports FTTH Splice Closure



FTTH Splice Closure Outdoor Waterproof Fiber Optic Terminal Box Aerial 16 Ports Cierre de Empalme Cierre de Fibra Optica



This splice closure integrates distribution and splitting in one, can realize the direct fusion and branching of the optical cable, and is suitable for the wiring connection in the optical communication equipment. Through the adapter and jumper to bring in the signal to realize optical distribution function, it is also suitable for fiber optic cables and pigtail protective connection; the unique three-tier design of the box body can be used as a fiber splitter or splice box; the flip board can be flipped≥180°,it is more convenient to install the box or maintenance. If remove the board, it can bed as a splice closure to meet different choices



Splice Closure Features



The product is made of high-quality impact resistant plastic and has a standard user interface that can be re-opened. Can accommodate two 1x8 PLC splitter LGX module or steel tube type;

Anti-ultraviolet,anti- impact and waterproof function;

Unique flip board, flip angle ≥ 180 °, fusion area and distribution area is more obvious, reducing the cable crossing; Fiber optic cable can go in and out of the box without cut the cable.



Technical parameters



Optical fiber radius of curvature: ≥40mm

Splice tray additional loss: ≤0.1dB

Temperature range: -40°C ~ +60°C

Anti side pressure: ≥2000N/10cm

Impact resistance: ≥20N.m

Protection class: IP65



Specification



Model AFATC-002A Splice Closure
Dimension (mm) 285*175*110
Cable diameter (mm) Φ7-φ18
Cable port 2pcs 8-20mm round ports,4pcs 5-16mm round cable, 16pcs 3-7mm drop cable ports
Max. Split ratio 2pcs 1x8 steel tube splitter
Max. Adapter number 18pcs
Max. Splice tray 1pc
Max. Fusion splice 24 cores



Packing list



Main body 1 set
L=400mm bare fiber buffer tube 2 pcs
Hoop / clamp 2 pcs
3x100 nylon tie 10 pcs
Heat shrinkable tube L=60mm 2-72 pcs (configuration on demand)
User manual 1pc



Waterproof Outdoor Fiber Distribution Box Aerial 16 Ports FTTH Splice Closure 0

Waterproof Outdoor Fiber Distribution Box Aerial 16 Ports FTTH Splice Closure 1

Waterproof Outdoor Fiber Distribution Box Aerial 16 Ports FTTH Splice Closure 2

FAQ:



1. Are you the real factory?

Yes,we are the real factory more than 10 years



2. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.



3. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.



4. What is your delivery time?

Within 24 hours for normal kinds of fiber optic cable;

3~5 days for fiber optic patch cords with 10000 connectors.



5. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.



6. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.



7. Payment

For large orders: T/T, L/C

For small orders: T/T,Western Union and Paypal are acceptable.
