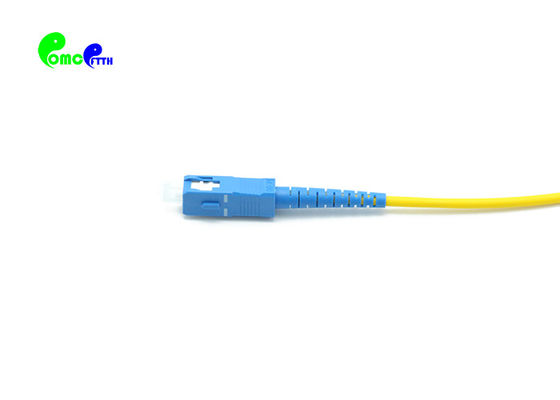

Simplex SC APC - SC UPC OS2 Fiber Optic Patch Cable LSZH 3.0mm Fiber Patch Cord Jumper
| Place of Origin | China |
|---|---|
| Brand Name | OMC or OEM |
| Certification | ISO RoHS |
| Model Number | SC UPC to SC APC Simplex Patch Cord |
| Minimum Order Quantity | 10 |
| Price | USD0.75-0.87 |
| Packaging Details | One piece in a PE Bag Hundreds piece in a carton of 54*35*39cm. |
| Delivery Time | 3-7 workdays |
| Payment Terms | L/C, T/T, Western Union,Paypal |
| Supply Ability | 500000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Connector Type | SC To SC | Polish Type | UPC To APC |
|---|---|---|---|
| Fiber Mode | OS2 9/125μm | Wavelength | 1310/1550nm |
| Insertion Loss | ≤0.3dB | Return Loss | ≥50dB |
| Fiber Count | Simplex | Cable Diameter | 3.0mm |
| Cable Jacket | LSZH/PVC | Storage Temperature | -40~80°C |
| High Light | 3.0mm Fiber Optic Patch Cable,LSZH Fiber Optic Patch Cable,OS2 PVC Optical Patch Cord |
||
Product Description
SC UPC to SC APC Simplex OS2 Single Mode PVC / LSZH 3.0mm Fiber Optic Patch Cable
Patch Cords are used to provide optical connection for fiber optic electronics. The use of the patch cord provides a quick and easy method for routing fiber patches in data centers, head-ends, cellular hubs and central offices. The patch cord can be used in interconnect or cross-connect path connecting the incoming fibers to the electronic equipment and providing patching within the fiber paths. Patch Cords include simplex, duplex and Multi-fibers assemblies.
OMC’s Patch cables are manufactured and tested in compliance with TIA 604 (FOCIS), IEC 61754 and YD/T industry standards. OM1, OM2, OM3, OM4, OM5 or OS2 fiber types to meet the demand of Gigabit Ethernet, 10 Gigabit Ethernet and high speed Fiber Channel. Every termination through rigorous parameter test to ensure the highest in network performance.
Connector’s Standard:
SC: TIA/EIA, FOCIS3, GR-326.NTT-SC IEC61754-4 and JIS C5973.
Optical Specifications:
| Connector | SC | Jacket OD(mm) | 3.0 |
| Fiber Mode | 9/125μm, | Jacket Color |
SM:Yellow/Blue/White;
|
| Polish | UPC,APC | Wavelength | SM:1310/1550nm |
| Cable Type | Simplex | Jacket Material | LSZH/PVC |
| Insertion loss | ≤0.3dB(IEC Grade C) | Insertion loss | ≤0.12dB(IEC Grade B) |
| Return loss |
SM UPC ≥ 50dB(min) SM APC ≥ 60dB(min) |
Interchangeability &Vibration | ≤0.2dB |
| Operating temperature | -40~75°C | Storage temperature | -45~85°C |
Geometric Specification (only for 3D interferometer tested)
| Items | Connector | PC End-face | APC End-face |
| Radius of Curvature | SC/FC/ST | 10~25 mm | 5~12 mm |
| LC/MU | 7~25 mm | 5~15 mm | |
| Apex Offset | ≤50 um | ||
| Fiber Spherical Height | +/- 100 nm | ||
| Angular Offset | ------ | 8°± 0.5° | |
End-face Quality (SM)
| Zone | Range (μm) | Scratches | Defects | Reference |
| A: Core | 0 to 25 | None | None | IEC 61300-3-35:2015 |
| B: Cladding | 25 to 115 | None | None | |
| C: Adhesive | 115 to 135 | None | None | |
| D: Contact | 135 to 250 | None | None | |
| E: Rest of ferrule | None | None | ||
Length Tolerance
| Overall Length(L)(m) | length of tolerance(cm) |
| 0<L<1 | +5/-0 |
| 1<L<10 | +10/-0 |
| 10<L<40 | +15/-0 |
| 40<L | +0.5% x L/-0 |
