ST-ST SM 3.0mm 1550nm LSZH Armored Optical Patch Cable
| Place of Origin | China |
|---|---|
| Brand Name | OMC or OEM |
| Certification | ROHS and ISO |
| Model Number | Duplex Armored ST - ST SM Duplex 3.0mm LSZH |
| Minimum Order Quantity | 1 pcs |
| Price | Negotiable |
| Packaging Details | One piece in a plastic bag, several pieces in the carton of 54*39*35cm carton |
| Delivery Time | 3-5 working days after payment confirmed |
| Payment Terms | Western Union, L/C, T/T,creit card, paypal, alipay |
| Supply Ability | 10000 pcs per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Duplex Armored Patch Cable ST - ST SM Duplex 3.0mm LSZH | Insertion Loss | <0.2dB (Typical), 0.3dB (Max) |
|---|---|---|---|
| Return Loss | UPC>50dB | Clean End Face Ferrule | 100% Clean, No Dust, No Water, No Scratch |
| 100% 3D Interference Tested | Yes Available Once Requested | Standard | Telcordia GR-326.Core, IEC Grade C |
| High Light | 1550nm Armored Optical Patch Cable,LSZH Armored Optical Patch Cable,3.0mm Fiber Optic Patch Cord |
||
Product Description
Armored Fiber Optic Patch Cable ST - ST SM Duplex 3.0mm Soft Helical Stainless Steel Tape + LSZH Blue jacket
Armored Patch cord is a patch cord which could be used as cooper patch cable. They adopted a cable with soft metal protection tube and standard connector. The apply place are in the floor corner. Those products could protect the fiber bite by mouse and ant. Although armored fiber optic cables are strong, they are actually as flexible as standard fiber optic patch cords; they can be bending randomly without being broken. The rugged armored cables allow optical fiber to be installed in the most hazardous areas, including environments with excessive dust, oil, gas, moisture, or even damage-causing rodents.
Fiber Patch Cables are used to provide optical connection for fiber optic electronics. The use of the patch cord provides a quick and easy method for routing fiber patches in data centers, head-ends, cellular hubs and central offices.
The patch cable can be used in interconnect or cross-connect path connecting the incoming fibers to the electronic equipment and providing patching within the fiber paths.
This 9/125 OS2 single mode fiber optic cable is ideal for connecting 1G/10G/40G/100G/400G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.
Products info
| Item | Duplex |
| Fiber count | 2 |
| Tight buffer OD | 0.6mm/0.9mm |
| Out jacket OD | 3.0x6.1mm |
Optical performance
| Connector | ST to ST | Jacket OD | 3.0mm |
| Fiber Mode | 9/125μm | Jacket Color | Blue |
| Polish | UPC to UPC | Wavelength | 1310/1550nm |
| Fiber Type | Duplex | Jacket Material | LSZH |
| Insertion loss | ≤0.3dB | Interchangeability | ≤0.2dB |
| Return loss | ≥50dB | Vibration | ≤0.2dB |
| Operating temperature | -40~75°C | Storage temperature | -45~85°C |
| Max Tensile Strength(N) | Short term 300N Long term 200N |
Max Crush resistance (N/100mm) | Short term 3000N Long term 2000N |
Geometric Specification (only for 3D interferometer tested)
| Test items | Connectors | PC End-face | APC End-face |
| Radius of Curvature | SC/FC/ST | 10~25 mm | 5~12 mm |
| LC/MU | 7~25 mm | 5~15 mm | |
| Apex Offset | ≤50 um | ||
| Fiber Spherical Height | +/- 50 nm | ||
| Angular Offset | ------ | 8°± 0.2° | |
CUSTOM option
1. Cable color, printing word, material of cable jacket, connector’s color
2. OEM Label, Identify ring, cable’s label,box, shipping marks
3. Different quality Level.
End-face Quality (SM)
SM UPC SM APC
| Zone | Range (μm) | Scratches | Defects | Reference |
| A: Core | 0 to 25 | None | None |
IEC 61300-3 -35:2015 |
| B: Cladding | 25 to 115 | None | None | |
| C: Adhesive | 115 to 135 | None | None | |
| D: Contact | 135 to 250 | None | None | |
| E: Rest of ferrule | None | None | ||
Benefits of Armoured Fiber Patch Cable
Common fiber optic cable is fragile, which needs to be protected, especially when in harsh applications where cables could be compromised by rodents, constant wear and tear or weather damage. Armored fiber patch cable retains all the features of standard fiber cable but is much stronger due to its extra layers of armor. With the protection of flexible and durable steel tube, armored fiber patch cable will ensure the excellent operation of your network.
Ideal for harsh installation conditions that require exceptional durability. It is used as interconnection or cross connection in data center. It is also used in ceiling, corridor and other harsh environment.

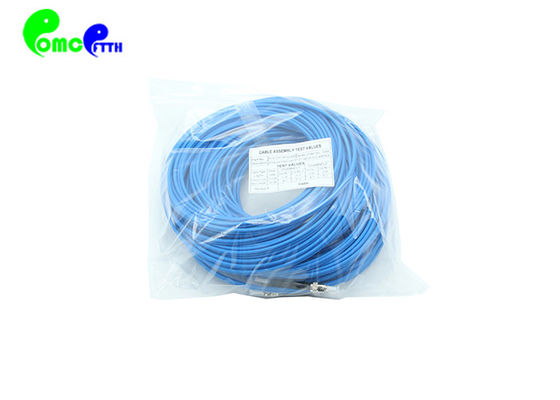

Packaging & Labeling
This easy to take and well-protected fiber optical cable package has been labelled and marked by OMC as default.
OMC also provides a full set of OEM services, such as fiber connector, length, color, fiber grade, specification, material, package etc.
High Quality Fibre Optic Cable Guarantee
Comprehensive performance testing makes sure the cable work more securely and data transmission more reliable and stable in your network.
Company Information:
OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.
