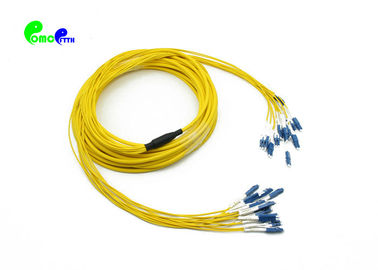

1310nm 24F LC UPC SM Fanout Fiber Patch Cord Pre Terminated

Place of Origin China
Brand Name OMC or OEM
Certification ROHS and ISO
Model Number Pre - terminated 24F LC UPC SM Fanout 3.0mm
Minimum Order Quantity 5pcs
Price Negotiable
Packaging Details One piece in a plastic bag, several pieces in the carton of 54*39*35cm carton
Delivery Time 3 days after payment confirmed
Payment Terms L/C, T/T, Western Union
Supply Ability 100000 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 24F SM LC UPC Fanout 3.0mm Pre-terminated Patch Cord Return Loss SM UPC ≥ 50dB(min)
Insertion Loss ≤0.12dB Fiber Mode 9/125μm
Wavelength 1310/1550nm Jacket Color Yellow
Operating -40~75°C Storage -45~85°C
High Light

SM Fanout Fiber Patch Cord

,

1310nm Fiber Patch Cord

,

24F Pre Terminated Optic Cable

Leave a Message
Product Description

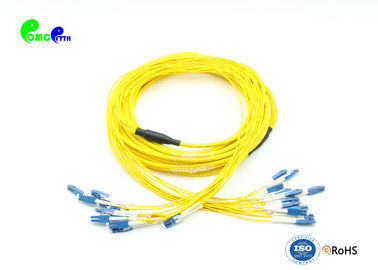

Pre - terminated 24F LC UPC SM Fanout 3.0mm Fiber Patch Cord With Pull Tab LSZH Yellow Jacket





Pre-terminated Patch cable also be called Bunch/Distribution patch cable or Mini breakout patch cable. It’s a installation cables that are suitable for laying in buildings, primarily in cable conduits and cable trays. They are designed for direct connector assembly with no need for splice connectors.



OMC’s Patch cables are manufactured and tested in compliance with TIA 604 (FOCIS), IEC 61754 and YD/T industry standards. OM1, OM2, OM3, OM4, OM5 or OS2 fiber types to meet the demand of Gigabit Ethernet, 10 Gigabit Ethernet and high-speed Fiber Channel. Every termination through rigorous parameter test to ensure the highest in network performance.



Connector’s Standard:



LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.



Optical Specification



Connector LC Jacket OD(mm)

8.3mm

Fiber Mode 9/125μm, Jacket Color

Yellow

Polish PC,UPC,APC Wavelength

SM:1310/1550nm

Cable Type Multi-fibers Breakout 3.0mm unit cable Jacket Material LSZH/PVC/OFNR/OFNP
Insertion loss ≤0.3dB(IEC Grade C) Insertion loss ≤0.12dB(IEC Grade B)
Return loss

UPC ≥ 50dB(min)

Interchangeability &Vibration ≤0.2dB
Operating temperature -40~75°C Storage temperature -45~85°C



Geometric Specification (only for 3D interferometer tested)





Items Connector PC End-face APC End-face
Radius of Curvature SC/FC/ST 10~25 mm 5~12 mm
LC/MU 7~25 mm 5~15 mm
Apex Offset ≤50 um
Fiber Spherical Height +/- 100 nm
Angular Offset ------

8°± 0.5°





End-face Quality (SM)





Zone Range (μm) Scratches Defects Reference
A: Core 0 to 25 None None IEC 61300-3-35:2015
B: Cladding 25 to 115 None None
C: Adhesive 115 to 135 None None
D: Contact 135 to 250 None None
E: Rest of ferrule None

None



Length Tolerance



1310nm 24F LC UPC SM Fanout Fiber Patch Cord Pre Terminated 0





Overall Length(L)(m) length of tolerance(cm)
0<L<1 +5/-0
1<L<10 +10/-0
10<L<40 +15/-0
40<L +0.5% x L/-0



Application:



1.Optical fiber communication systems engineering

2.Fiber optic data communication network

3.Connected with trunk cables on one end, equipment port on the other end.

4.Connected with transfer modules on one end, equipment port on the other end.



Features



1.100% pre-terminated and tested in factory to ensure transfer performance.

2.Rapid configuration and networking, reduce installation time.

3.Supports 40G and 100G network applications.

4.Low insertion loss and added loss.

5.Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available.

6.High back loss, small volume, light weight.

7.End-face geometry and quality superior than IEC and Telcordia standards.

8.LSZH, OFNP, OFNR cable jacket.

9.Mechanical performance: IEC 61754-20 standard.

10.RoHS and REACH materials compliant.



Packaging


This easily taken and well-protected fiber optical cable package has been labelled and marked by OMC as default
.Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on goods
Qty . Packing can be customized.
