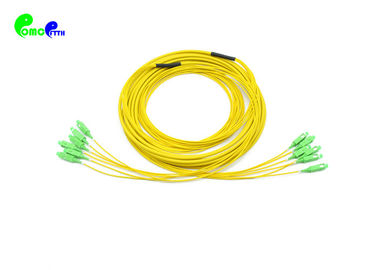

6cores Pre - Terminated SC APC Fiber Optic Patch Cables SM OS2 BIF G657A2 Breakout 2.0mm Tail
|Place of Origin||China|
|Brand Name||OEM or OMC|
|Certification||ROHS and ISO|
|Model Number||6F SM Pre - terminated SC APC - SC APC fanout 2.0mm|
|Minimum Order Quantity||5pcs|
|Packaging Details||One piece in a plastic bag, several pieces in the carton of 54*39*35cm carton|
|Payment Terms||Western Union, T/T, Paypal, L/C|
|Supply Ability||1000000pcs per month|
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Product Name||6cores Pre - Terminated SC APC Fiber Optic Patch Cables SM OS2 BIF G657A2 Breakout 2.0mm Tail||Insertion Loss||≤0.12dB（IEC Grade B ）|
|Return Loss||APC ≥ 60dB(min)||Interchangeability||≤0.2dB|
fiber optic patch cord,
fibre optic patch leads
6F SM Pre - terminated Fibre Optic Patch Cord SC/APC-SC/APC Fanout 2.0mm tail LSZH Yellow
Breakout Patch cables are installation cables that are suitable for laying in buildings, primarily in cable conduits and cable trays. Can be used as a building backbone or horizontal distribution, and they are operating in an uncontrolled or harsh environment.
The 9/125μm OS2 single mode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It can also save more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed.
This 9/125 OS2 single mode fiber optic cable is ideal for connecting 1G/10G/40G/100G/400G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.
SC: TIA/EIA, FOCIS3, GR-326.NTT-SC IEC61754-4 and JIS C5973.
|Fiber Mode||9/125μm||Jacket Color||
fanout Cable Diameter
|Insertion loss||≤0.3dB(IEC Grade C)||Insertion loss||≤0.12dB(IEC Grade B)|
APC ≥ 60dB(min)
|Operating temperature||-40~75°C||Storage temperature||-45~85°C|
End-face Quality (SM)
|A: Core||0 to 25||None||None||IEC 61300-3-35:2015|
|B: Cladding||25 to 115||None||None|
|C: Adhesive||115 to 135||None||None|
|D: Contact||135 to 250||None||None|
|E: Rest of ferrule||None||None|
|Overall Length(L)(m)||length of tolerance(cm)|
|40<L||+0.5% x L/-0|
OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.
1. Are you the real factory?
Yes,we are the real factory more than 10 years
2. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;
Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.
3. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.
4. What is your delivery time?
Within 24 hours for normal kinds of fiber optic cable;
3~5 days for fiber optic patch cords with 10000 connectors.
5. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.
6. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory price could be offered.
For large orders: T/T, L/C
For small orders: T/T,Western Union and Paypal are acceptable
