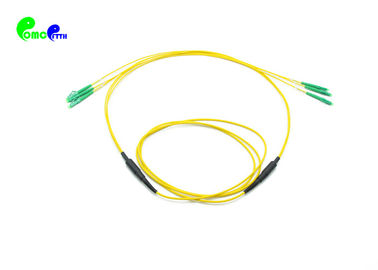

High Density Optical Fiber Patch Cable 3F LC APC - LC APC 9/125μM OS2 G657A1 Small OD 3.0mm
|Place of Origin||China|
|Certification||ROHS and ISO|
|Model Number||3F LC APC - LC APC 9/125μm OS2 G657A1 Fanout 2.0mm|
|Minimum Order Quantity||5pcs|
|Packaging Details||One piece in a plastic bag, several pieces in the carton of 54*39*35cm carton|
|Payment Terms||Western Union, T/T, Paypal, L/C|
|Supply Ability||1000000pcs per month|
|Products||3F LC APC - LC APC 9/125μm OS2 G657A1 Fanout 2.0mm Patch Cord||Insertion Loss||≤0.3dB|
|Return Loss||≥60dB||Operating Temperature||-20~70°C|
fiber optic patch cord,
fiber optic jumpers
3F LC APC - LC APC 9/125μm OS2 G657A1 Fanout 2.0mm Fiber Optic Patch Cable
Breakout Patch cables are installation cables that are suitable for laying in buildings, primarily in cable conduits and cable trays. Can be used as a building backbone or horizontal distribution, and they are operating in an uncontrolled or harsh environment.
The 9/125μm OS2 single mode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It can also save more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed.
This 9/125 OS2 single mode fiber optic cable is ideal for connecting 1G/10G/40G/100G/400G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.
LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.
|Connector Type||LC to LC||Polish Type||APC to APC|
|Fiber Mode||OS2 9/125μm||Wavelength||1310/1550nm|
|Insertion Loss||≤0.3dB||Return Loss||≥60dB|
|Fiber Grade||G657A1||Minimum Bend Radius||10mm|
|Attenuation at 1310 nm||0.36 dB/km||Attenuation at 1550 nm||0.22 dB/km|
|Fiber Count||3F||Cable Diameter||2.0mm|
|Cable Jacket||LSZH||Polarity||A(Tx) to B(Rx)|
|Operating Temperature||-20~70°C||Storage Temperature||-40~80°C|
End-face Quality (SM)
|A: Core||0 to 25||None||None||IEC 61300-3-35:2015|
|B: Cladding||25 to 115||None||None|
|C: Adhesive||115 to 135||None||None|
|D: Contact||135 to 250||None||None|
|E: Rest of ferrule||None||None|
|Overall Length(L)(m)||length of tolerance(cm)|
|40<L||+0.5% x L/-0|
Bend Insensitive Fiber Optic Cable Structure
A unique refractive trench with low refractive index glass layer in BIF, which reduces in light dispersion upon twisting and bending, ensuring network transmission stably and fast.
This easily taken and well-protected fiber optical cable package has been labelled and marked by OMC as default
.Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on goods
Qty . Packing can be customized.
OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.
1. Are you the real factory?
Yes,we are the real factory more than 10 years
2. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;
Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.
3. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.
4. What is your delivery time?
Within 24 hours for normal kinds of fiber optic cable;
3~5 days for fiber optic patch cords with 10000 connectors.
5. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.
6. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory price could be offered.
For large orders: T/T, L/C
For small orders: T/T,Western Union and Paypal are acceptable
