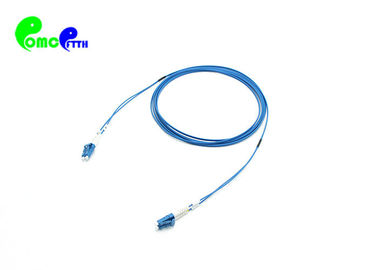

Singlemode 1.6mm OD LC UPC- LC UPC Duplex Fiber Optic Patch Cord G657A1 LSZH Blue Color IEC grade B
| Place of Origin | China |
|---|---|
| Brand Name | OMC |
| Certification | ISO9001; RoHS |
| Model Number | IEC grade B G657A1 1.6mm LC UPC- LC UPC DX SM |
| Minimum Order Quantity | 10pcs |
| Price | Negotiable |
| Packaging Details | one piece in a plastic bag. Several bags in a larger plastic bag. hundreds of bags in a cartoon of 54*35*39cm. other size carton is available too. |
| Delivery Time | 5 working days |
| Payment Terms | T/T, Western Union, Paypal |
| Supply Ability | 200000pcs / month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | IEC Grade B G657A1 1.6mm LC UPC- LC UPC DX SM Optical Fiber Patch Cord | Insertion Loss | <0.12dB(Typical), 0.25dB (Mean) |
|---|---|---|---|
| Return Loss | UPC>50dB | 100% 3D Interference Tested | Available |
| Clean End Face Ferrule | 100% Clean,no Dust, No Water,no Scratch | Certification | ISO9001:2008 |
| Standard | Telcordia GR-326.Core | Jacket OD | 1.6*3.3 |
| High Light | fiber optic jumpers,fibre optic patch leads |
||
Product Description
IEC grade B G657A1 1.6mm LC/UPC-LC/UPC Duplex Single mode LSZH Blue Color Optic Fiber Patch Cord
Patch Cords are used to provide optical connection for fiber optic electronics. The use of the patch cord provides a quick and easy method for routing fiber patches in data centers, head-ends, cellular hubs and central offices. The patch cord can be used in interconnect or cross-connect path connecting the incoming fibers to the electronic equipment and providing patching within the fiber paths. Patch Cords include simplex, duplex and Multi-fibers assemblies.
The 9/125μm OS2 single mode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It can also save more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed.
This 9/125 OS2 single mode fiber optic cable is ideal for connecting 1G/10G/40G/100G/400G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.
Connector's Standard:
LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.
Features
1. 100% pre-terminated and tested in factory to ensure transfer performance.
2. Rapid configuration and networking, reduce installation time.
3. Supports 40G and 100G network applications.
4. Low insertion loss and added loss.
5. Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available.
6. High back loss, small volume, light weight.
7. End-face geometry and quality superior than IEC and Telcordia standards.
8. LSZH, OFNP, OFNR cable jacket.
9. Mechanical performance: IEC 61754-20 standard.
10. RoHS and REACH materials compliant.
Optical Specifications
|
Connector |
LC Duplex SM with Clip |
Jacket OD(mm) |
1.6x3.3 |
|
Fiber Mode |
9/125μm |
Jacket Color |
SM:Yellow/Blue/White; |
|
Polish |
UPC |
Wavelength |
SM:1310/1550nm |
|
Cable Type |
Zip-cord Duplex (Fig 8 Duplex) |
Jacket Material |
LSZH/PVC/OFNR/OFNP |
|
Insertion loss |
≤0.3dB(IEC Grade C) |
Insertion loss |
≤0.12dB(IEC Grade B) |
|
Return loss |
SM UPC ≥ 50dB(min) |
Interchangeability &Vibration |
≤0.2dB |
|
Operating temperature |
-40~75°C |
Storage temperature |
-45~85°C |
Geometric Specification (For special request)
|
Items |
Connector |
PC End-face |
APC End-face |
|
Radius of Curvature |
SC/FC/ST |
10~25 mm |
5~12 mm |
|
LC/MU |
7~25 mm |
5~15 mm |
|
|
Apex Offset |
≤50 um |
||
|
Fiber Spherical Height |
+/- 100 nm |
||
|
Angular Offset |
------ |
8°± 0.5° |
|
End-face Quality (SM)
|
Zone |
Range (μm) |
Scratches |
Defects |
Reference |
|
A: Core |
0 to 25 |
None |
None |
IEC 61300-3-35:2015 |
|
B: Cladding |
25 to 115 |
None |
None |
|
|
C: Adhesive |
115 to 135 |
None |
None |
|
|
D: Contact |
135 to 250 |
None |
None |
|
|
E: Rest of ferrule |
None |
None
|
||
CUSTOM option
OMC also provides a full set of OEM services, such as fiber connector, length, color, fiber grade, specification, material, package etc.
Length Tolerance
| Overall Length(L)(m) | length of tolerance(cm) |
| 0<L<1 | +5/-0 |
| 1<L<10 | +10/-0 |
| 10<L<40 | +15/-0 |
| 40<L | +0.5% x L/-0 |
Packaging & Labeling
This easy to take and well-protected fiber optical cable package has been labelled and marked by OMC as default.
How to Choose The Right Fiber Optic Cable Type?
| Designation | Fiber Dia.(μm) | Type | Fast Ethernet 100BASE-FX | 1 Gigabit Ethernet 1000BASE-SX | 1 Gigabit Ethernet 1000BASE-LX | 10Gbps Ethernet 10GBASE | 40Gbps Ethernet 40GBASE SR4 | 100Gbps Ethernet 100GBASE SR4 |
| OM1 | 62.5/125 | Multimode | 2000 Meters | 275 Meters | 550 Meters | 33 Meters | Not supported | Not supported |
| OM2 | 50/125 | Multimode | 2000 Meters | 550 Meters | 550 Meters | 82 Meters | Not supported | Not supported |
| OM3(Laser Optimized) | 50/125 | Multimode | 2000 Meters | 550 Meters | 550 Meters | 300 Meters | 100 Meters(SR4) | 100 Meters(SR4) |
| OM4(Laser Optimized) | 50/125 | Multimode | 2000 Meters | 550 Meters | 550 Meters | 400 Meters | 150 Meters(SR4) | 150 Meters(SR4) |
| Singlemode | 9/125 | Singlemode | 2000 Meters | 5km at 1310nm | 5km at 1310nm | 10km at 1310nm | N/A | N/A |
PS:The difference of OM4 and OM3 fiber mode as the following
1. OM4 was developed specifically for VSCEL laser transmission and allows 10 Gig / second link distances of up to 550 Meters (compared to 300M with OM3).
2. The effective modal bandwidth for OM4 is more than double that of OM3.
3. For OM4 patch cable it is 4700 MHz.km while for OM3 it is 2000 MHz.km.
How to correctly choose between PVC, LSZH and OFNP?
Fiber patch cables are now widely used for indoor applications like buildings, factories, office parks ,campuses and so on. Whether you choose PVC, LSZH or OFNP jacket depends on where you're going to run the cable.
Company Information:
OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.
FAQ:
1. Are you the real factory?
Yes,we are the real factory more than 10 years
2. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;
Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.
3. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.
4. What is your delivery time?
Within 24 hours for normal kinds of fiber optic cable;
3~5 days for fiber optic patch cords with 10000 connectors.
5. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.
6. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory price could be offered.
7. Payment
For large orders: T/T, L/C
For small orders: T/T,Western Union and Paypal are acceptable
